Quick Details
-
Brand Name:
-
Acntruck
-
Engine Model:
-
with Honda engine 690
-
Rated power:
-
22Kw/17.6Kw
-
Vibration plate width:
-
2534mm/2963mm
-
Leveling thickness:
-
50-300mm
-
Working speed:
-
4m-20m/min
-
Machine dimension:
-
3250*2850*1320mm
-
Machine weight:
-
900kg
-
Tire:
-
Solid non-slip and puncture-resistant narrow tires
-
Application:
-
Factory land leveling, concrete land leveling
-
Fuel consumption:
-
3-4L
Quick Details
-
Weight (KG):
-
900
-
Marketing Type:
-
Hot Product 2023
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Acntruck
-
Engine Model:
-
with Honda engine 690
-
Rated power:
-
22Kw/17.6Kw
-
Vibration plate width:
-
2534mm/2963mm
-
Leveling thickness:
-
50-300mm
-
Working speed:
-
4m-20m/min
-
Machine dimension:
-
3250*2850*1320mm
-
Machine weight:
-
900kg
-
Tire:
-
Solid non-slip and puncture-resistant narrow tires
-
Application:
-
Factory land leveling, concrete land leveling
-
Fuel consumption:
-
3-4L

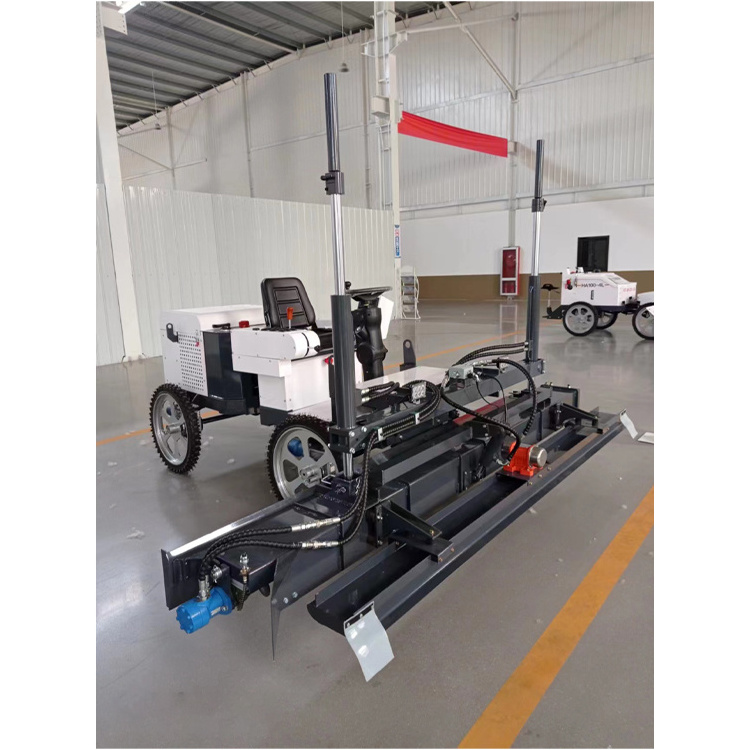

Anctruck concrete machine screed finishing HA100-4D Concrete laser screed machine
Product Description
Working principle of laser leveling machine:
1. The leveling principle of the laser leveling machine is to use precision laser technology, closed-loop control technology and high-precision hydraulic system to achieve under the automatic control of a computer. This is its outstanding feature that is different from other floor construction techniques.
2. The leveling principle of the precision laser leveling machine is to rely on the leveling head driven by hydraulic power, cooperate with the laser system and the computer control system to complete the leveling work while leveling automatically. The leveling head is equipped with an integrated design of scraper, vibrator and screed, which integrates all leveling, leveling, vibrating and compaction work and completes it at one time. The computer control system automatically adjusts the elevation in real time 10 times per second, and the vibration frequency of the vibrator with a balanced design reaches 4000 times per minute.
3. The laser transmitter used to control the ground elevation is arranged independently, and the floor elevation is not controlled by the template, and no cumulative error will occur.
4. The laser leveling machine can also automatically control the longitudinal and transverse slopes, which is also unified by the laser system, computer system, hydraulic system, and mechanical system. For the complex-shaped ground with high requirements such as drainage, it can also be equipped with a three-dimensional special-shaped ground processing system to achieve it.
Product Paramenters
|
Engine
|
with Honda engine 690
|
|
Engine power
|
22kW/17/6kW
|
|
Oil volume
|
1.8L
|
|
Gas capacity
|
37L
|
|
Fuel consumption
|
3-4L
|
|
Suspension
|
Fixed
|
|
Vibration plate width
|
2534mm / 2963mm
|
|
Leveling thickness
|
50-300mm
|
|
Vibration force
|
2000N
|
|
Vibration motor speed
|
3600rpm
|
|
Walking speed
|
0-55m/min
|
|
Working speed
|
4m/20m/min (adjustable)
|
|
Machine dimension
|
3250*2850*1320mm
|
|
Machine weight
|
900kg
|
