Quick Details
-
Luminous Intensity:
-
6000-7000mcd
-
Luminous Flux(lm):
-
6400~9000lm
-
Optical Attenuation(%):
-
2
-
Power Dissipation:
-
0.72
-
Viewing Angle(°):
-
80*150
-
Operating Temperature(℃):
-
-40 - 50
-
Storage Temperature(℃):
-
-20 - 50
-
Place of Origin:
-
Zhejiang, China
-
Materials:
-
Aluminum + Optical PC
-
IES doc.:
-
yes
-
Luminous Efficiency:
-
160lm/w 155lm/w 150lm/w
-
LED Brand:
-
5050
-
Beam Angles:
-
80*150
-
Applications:
-
Street lighting, tunnel lighting, high/low bay lighting, flood light
-
Product Dimensions:
-
168*130*35mm
-
IP Grade:
-
IP68
-
Certification:
-
ce RoHS
-
Lamp Luminous Efficiency(lm/w):
-
160
Quick Details
-
Color Temperature(CCT):
-
3000k 4000K 5000K 5700K
-
Warranty(Year):
-
5-Year
-
Luminous Efficacy(lm/w):
-
165
-
Luminous Intensity:
-
6000-7000mcd
-
Luminous Flux(lm):
-
6400~9000lm
-
Optical Attenuation(%):
-
2
-
Power Dissipation:
-
0.72
-
Viewing Angle(°):
-
80*150
-
Operating Temperature(℃):
-
-40 - 50
-
Storage Temperature(℃):
-
-20 - 50
-
Place of Origin:
-
Zhejiang, China
-
Materials:
-
Aluminum + Optical PC
-
IES doc.:
-
yes
-
Luminous Efficiency:
-
160lm/w 155lm/w 150lm/w
-
LED Brand:
-
5050
-
Beam Angles:
-
80*150
-
Applications:
-
Street lighting, tunnel lighting, high/low bay lighting, flood light
-
Product Dimensions:
-
168*130*35mm
-
IP Grade:
-
IP68
-
Certification:
-
ce RoHS
-
Lamp Luminous Efficiency(lm/w):
-
160

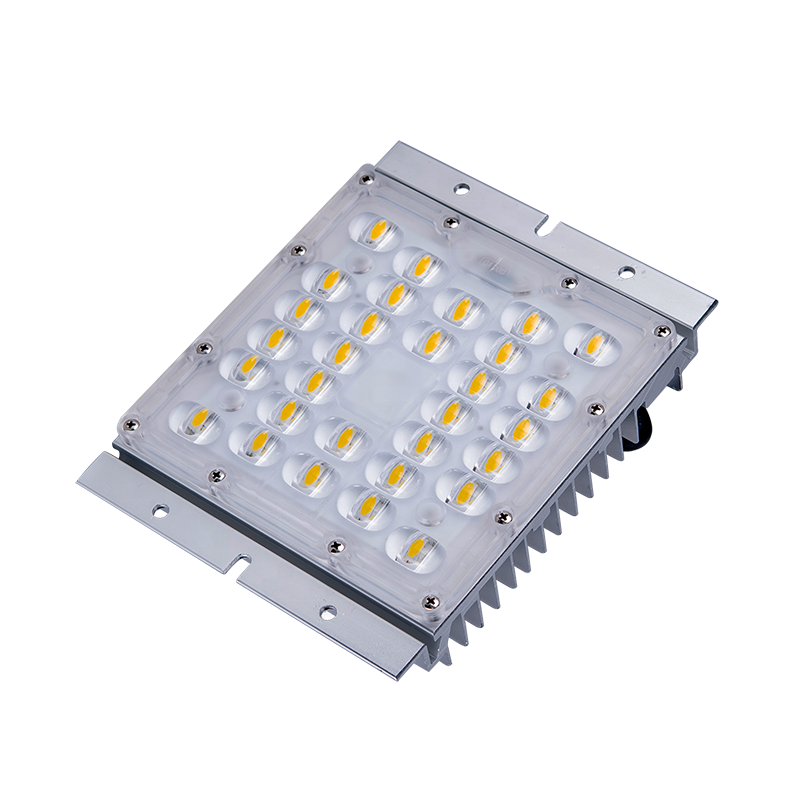

60 Watt 30W 40W 50W 60W 5 years warranty IP68 Waterproof led module 160lm/w 50w led light engine
Features:
- Uniquie patented IP68 LED light engines;
- 40pcs Lumileds led 5050;
- Super long lifetime(lumen maintenance);
- Ultra-high lighting efficiency, low power consumption;
- Multiple lighting distribution available;
- Wide applicability for Complex situations.
Main parameter:
| LED Light Source | 5050 30pcs |
| Output Power | 40W, 50W,60W |
| Luminous Flux | 6400lm,7750lm,9000lm |
| Input Current | 840mA, 1050mA, 1250mA |
| Input Voltage Range | 42-45Vdc |
| Lighting Distributions | 80*150 |
| CCT | 3000K,4000K,500K,5700K,6500K |
| IP Class | IP68 |
| Product Fixture Size | 168*130*35mm |
| Packing Details | xx*xx*xxmm (20pcs), 12kgs |
Click here for more information
Dimensions:
Lighting distribution:
View detail information about the item,Please send quote request
Why Choose the module instead of using whole light?
View detail information about the item,Please send quote request
Application:
View detail information about the item,Please send quote request
Related products:
View detail information about the item,Please send quote request
View detail information about the item,Please send quote request
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
