Quick Details
-
Usage:
-
beam sensor
-
Outdoor:detector range:
-
20M 30M 40M 60M 80M 100M 120M 150M
-
indoor:detector range:
-
60M 90M 120M 180M 240M 300M 360M 450M
-
Beam:
-
2beam
-
model:
-
ABT20/30/60/80/100/150/200
-
origin:
-
guangdong
-
system:
-
wired and BUS
-
alarm output:
-
NO/NC
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Box:
-
white. color .
-
volatage:
-
DC 12-18V
-
Usage:
-
beam sensor
-
Outdoor:detector range:
-
20M 30M 40M 60M 80M 100M 120M 150M
-
indoor:detector range:
-
60M 90M 120M 180M 240M 300M 360M 450M
-
Beam:
-
2beam
-
model:
-
ABT20/30/60/80/100/150/200
-
origin:
-
guangdong
-
system:
-
wired and BUS
-
alarm output:
-
NO/NC

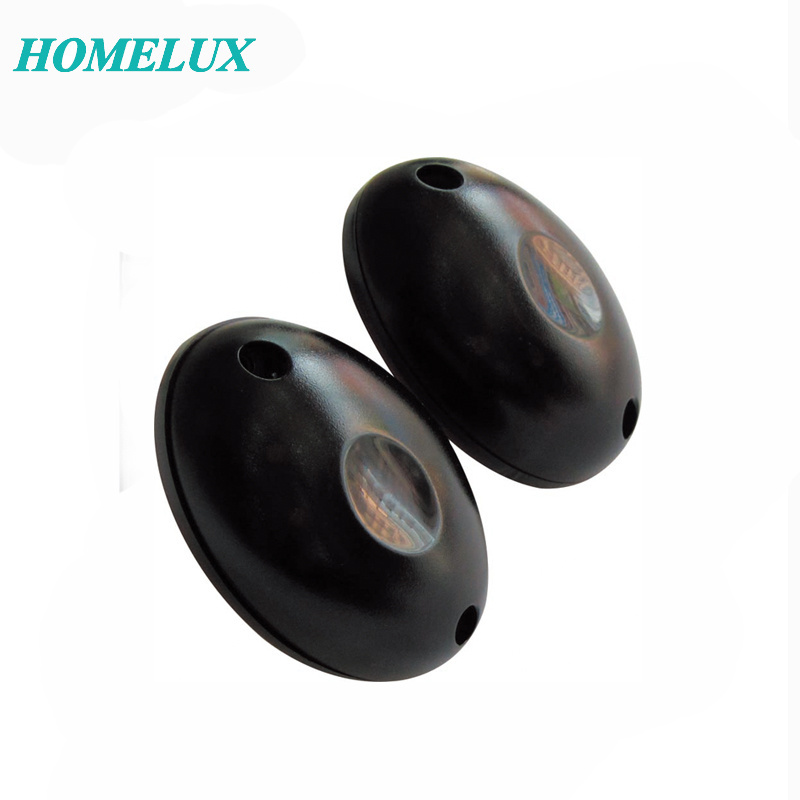

Infrared Photo Beam Sensor
Model number: ABT20/30/60/80/100/150/200
Specification:
- Outdoor: 20M 30M 40M 60M 80M 100M 120M 150M
- Indoor: 60M 90M 120M 180M 240M 300M 360M 450M
- Beam: 2 beam
- Digital controlled electrical circuit
- Easy optical alignment: viewfinder, voltage meter output and the vertical and horizontal alignment screws
- High grade aspherical lens is designed to create more precise infrared beams
- Twin beams offer stable operation
- Adjustable beam interruption time--long interruption time catches an intruder but allows a small animal to pass through
- A.G.C Circuit is designed to eliminate the false alarm caused by heavy rain, fog, frost or snow
- High grade plastic and metal material for harsh environment
- Voltage: DC 12 ~ 24 V / AC 11 ~ 18 V
- Current draw: 40 mA
- Operating temperature: -25 °C ~ + 60 °C
- Interruption time: 50ms ~ 700ms
- Alarm output: 1c, 30VDC 0.5A , retention time: 2 sn. (± 1)
- Tamper output: 1b, 30VDC 0.1A, when cover is opened
- Alignment angle: ± 90° (horizontal), ± 5° (vertical)
- Weight: 1200 gr.
Technical Parameters:
|
Products type |
ABT-20 |
ABT-40 |
ABT-60 |
ABT-80 |
ABT-100 |
|
|
Detection distance |
Outdoor |
20m |
40m |
60m |
80m |
100m |
|
Indoor |
60m |
120m |
180m |
240m |
300m |
|
|
Detection means |
Photoelectric beam detector |
|||||
|
Number of beams |
2 beams |
|||||
|
Light source |
Infrared LED |
|||||
|
Response speed |
50-700m/sec |
|||||
|
Alarm output |
Switch signal output (NO/NC) |
|||||
|
Power and Voltage |
DC 12-24V / AC 11-18V |
|||||
|
Working Current |
40mA |
|||||
|
Operating temperature |
-25°C - +55°C |
|||||
|
Tamper output |
NC Contact the capacity of AV / DC 24V/0.5A |
|||||
|
Exterior dimension |
177*82*77mm |
|||||
|
Adjust the level of the angle |
180º (± 90º) |
|||||
|
Adjust the vertical angel |
±10º |
|||||
|
Case Material |
PC engineering plastic |
|||||
|
MOQ |
50 pairs |
|||||
|
Delivery time |
Within 2-5 work days |
|||||
1) Payment: Western Union, T/T, Money Cash
2) Shipping: DHL, UPS, EMS, and other courier available as required.
3) Delivery time: 7-15 days after your full payment.
