Brand: DMJ
Original: Jinan, China.
1.Domestic
biggest
pu spray machine and Polyurea spray machine manufacturer.
2.In USA,CANADA,MEXICO,RUSSIA,SPAIN,Slovakia,have agent and distributor.
3.Factory have CE, ISO, BV.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220/380v/other
-
Dimension(L*W*H):
-
1.2*1.1*1.55m
-
Power (kW):
-
1.5-22KW
-
Weight (KG):
-
400 KG
-
Product Name:
-
Large Flow Two components polyurethane expanded foam pouring reactor
-
Application:
-
inject machinery
-
Type:
-
Pneumatic/hydraulic
-
Ratio:
-
1:1
-
Pressure:
-
11-36Mpa
-
Material:
-
Pu foam
-
Heat temperature:
-
90℃
-
Output:
-
2-12kg/min
-
Advantage:
-
self clean by air
-
Color:
-
Blue/red
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DMJ
-
Machine Type:
-
polyurethane inject machine
-
Voltage:
-
220/380v/other
-
Dimension(L*W*H):
-
1.2*1.1*1.55m
-
Power (kW):
-
1.5-22KW
-
Weight (KG):
-
400 KG
-
Product Name:
-
Large Flow Two components polyurethane expanded foam pouring reactor
-
Application:
-
inject machinery
-
Type:
-
Pneumatic/hydraulic
-
Ratio:
-
1:1
-
Pressure:
-
11-36Mpa
-
Material:
-
Pu foam
-
Heat temperature:
-
90℃
-
Output:
-
2-12kg/min
-
Advantage:
-
self clean by air
-
Color:
-
Blue/red
Product Description

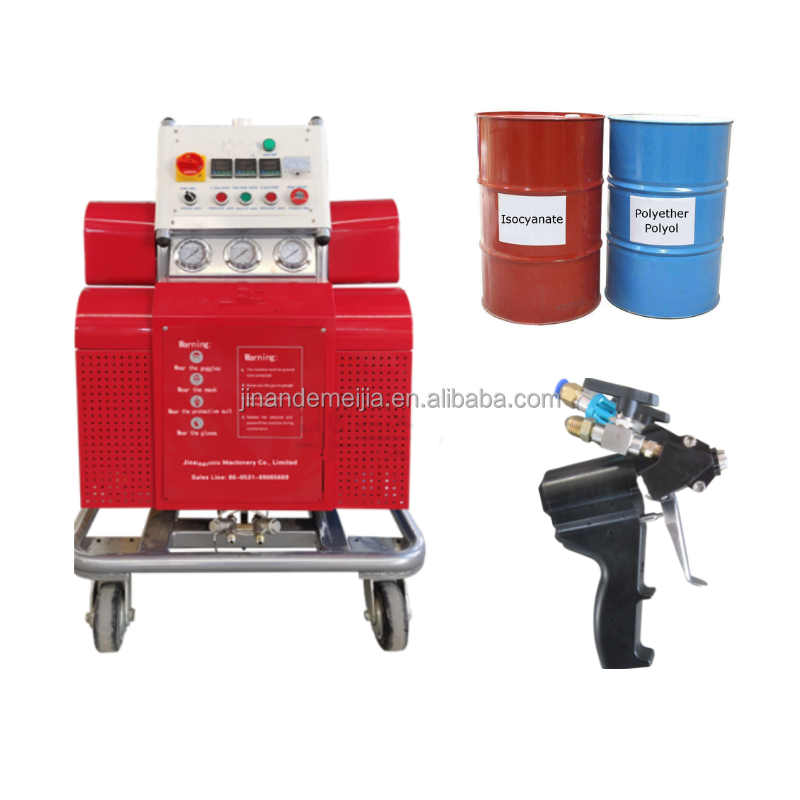

Large Flow Two components polyurethane expanded foam pouring reactor
Large Flow Two components polyurethane expanded foam pouring reactor
Application: Mainly used for polyurethane injecting and polyurea pu spraying work.
For spraying:
Building exterior and interior wall spraying, cold storage spraying , cabinet insulation and noise proofing of car&bus, roof insulation and waterproof, refrigerated trucks and industrial anticorrosion spraying.
For injecting:
Solar water heater, refrigerator, freezer, pipe joints, door-crack padding, products padding & packaging,
roller shutter door, security door, road construction, wall noise proofing, landscape modeling etc.
|
Model
|
DMJ-A1
|
DMJ-Q30
|
DMJ-H5600
|
|
Power source
|
220V/380V/Other
|
220V/380V/Other
|
220V/380V/Other
|
|
Machine dimension
|
80*90*150cm
|
80*90*150cm
|
120*110*155cm
|
|
Heating power
|
11kw
|
15kw
|
18kw
|
|
Packing weight
|
200kg
|
250kg
|
400kg
|
|
Raw output
|
2-12kg/min
|
2-12kg/min
|
2-12kg/min
|
|
Miximum output pressure
|
15Mpa
|
22Mpa
|
36Mpa
|
|
Heating hose
|
15 meters（max 75m)
|
15 meters
|
15 meters
|
|
Driven mode
|
pneumatic
|
pneumatic
|
hydraulic
|
|
Air source
|
0.5-0.8Mpa≥0.9m³/min
|
0.5-0.8Mpa ≥1.0m³/min
|
0.5-0.8Mpa ≥0.5m³/min
|
|
AB material output ratio:
|
1:1
|
1:1
|
1:1
|
Detailed Images
Large Flow Two components polyurethane expanded foam pouring reactor
Machine Pump
Brand: DMJ
Original: Jinan, China.
1. Pressure ratio: 3:1
2. Material flow: 0-18L/ min
3. Working Pressure: 0.1-1.0 Mpa
4. Inter Pressure: 0.3-0.8 Mpa
5. Length: 1280mm ,Diameter: 32mm
Original: Jinan, China.
1. Pressure ratio: 3:1
2. Material flow: 0-18L/ min
3. Working Pressure: 0.1-1.0 Mpa
4. Inter Pressure: 0.3-0.8 Mpa
5. Length: 1280mm ,Diameter: 32mm
Machine Gun
Original: China Jinan City
1. Clean: self clean
2. Output flow: 1-12 kg/min
3. Working pressure: 35 Mpa
4. Working air pressure: 0.2-1.2 Mpa
5. Gun: spray and inject nuzzle
Machine Hose
Original: Jinan, Cnina.
The heating hose is used to heat the raw material during hose flowing before spraying, which can keep the right temperature to get
good foaming result.
Large Flow Two components polyurethane expanded foam pouring reactor
Brief introduction:
Pu foam material has many advantages such as insulation, heat proofing, noise proofing and anticorrosion etc. Widely used in many areas. Environmental friendly and energy saving. The insulation and heat proofing function are better than any other materials.
Working principle:
The function of this pu spray foam machine is to extract black and white material. Make them pressurized. So both materials combined by high pressure in the gun head and then spray out spray foam soon.
Factory Direct! Low price! High quality!
PU
polyurea spray machine & PU inject
equipment
Spare Part & Drawing
|
Spare Parts
|
|
|
|
No.
|
one set for gun,machine,hose and pump
|
|
|
Guarantee
|
|
|
|
TNT / EMS
DHL
|
During warantee time any parts if broken
we will send spare parts to client winth 12month
|
|
|
Machine working drawing
|
|
|
|
Including
|
polyurea pu spray machine
1.Machine: 1 set
2.Spray gun: 1 set 3.Heating pipe: 15m 4.Connecting pipe for spray gun: 1.5m 5.Transfer pump: 2 sets
6.Spare parts and use operation
|
|
Spray and inject working
Company and Package
Professional 20 years for pu and polyurea machine
factory is in North of China,Jian City
Package
* Length width height: 1000*1000*1500 mm
* Weight 230kg
Hot Sale Products
factory agent price 900USD
Pu foam spray machine
Pu foam USD 1800 ton
Polyurea Pu spray machine
900USD
