* Dimensions :
48”
x
48”
x 1.5" (1200 x 1200 x 40mm) ,
96” x48” x 1.5" (2400 x 1200 x 40mm)
* Core Material : Formed, semi-rigid inorganic glass fibers
* Facing : Acoustically transparent polyester or paintable glass wool tissue micromesh sealed with latex paint
* Edge Treatment : Sealed and hardened with resin
*
Kit with height adjuster and 2m steel cable and special spring fixing
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DEGOACOUSTIC
-
Model Number:
-
Sound Insulation Material Acoustic Ceiling Tiles
-
Material:
-
Fiberglass wool (Mineral wool)
-
Size:
-
1200*1200mm 1200*2400mm
-
Thickness:
-
30 40 50 mm
-
Clour:
-
White RAL color
-
Edge:
-
Factory painted
-
Shape:
-
Square Circle Hexagon
-
Sound absorption:
-
NRC 0.95
-
Hs code:
-
7019399000
-
Installation:
-
Spring Wire rope kit
Quick Details
-
Warranty:
-
5 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DEGOACOUSTIC
-
Model Number:
-
Sound Insulation Material Acoustic Ceiling Tiles
-
Material:
-
Fiberglass wool (Mineral wool)
-
Size:
-
1200*1200mm 1200*2400mm
-
Thickness:
-
30 40 50 mm
-
Clour:
-
White RAL color
-
Edge:
-
Factory painted
-
Shape:
-
Square Circle Hexagon
-
Sound absorption:
-
NRC 0.95
-
Hs code:
-
7019399000
-
Installation:
-
Spring Wire rope kit
ACOUSTIC CLOUD CEILING PANELS
|
MATERIAL
|
Fiberglass wool panels with acoustically transparent membrane
|
|
|
|
||||
|
SURFACE FINISHE
D
|
DEGOACOUSTIC factory applied acrylic latex paint,
|
|
|
|
||||
|
COLOR
|
White .black ，Custom
|
|
|
|
||||
|
SOUND ABSORPTION
|
NRC：0.85-0.9
|
|
|
|
||||
|
SIZE(s）
|
600mm×1200mm×40mm 1200mm×1200mm×30mm),
|
|
|
|
||||
|
|
2400mm×1200mm×40mm 300mm×1800mm×40mm)
|
|
|
|
||||
|
|
150mm×1200mm×40mm 150mm×2400mm×40mm)
|
|
|
|
||||
|
|
100mm×1200mm×40mm 120mm×2400mm×40mm)
|
|
|
|
||||
|
EDGE
|
·Square
|
|
|
|
||||
|
WEIGHT
|
4.55kgs/m 40mm Thick
|
|
|
|
||||
|
LIGHT REFLECTANCE
|
LR 0.85
|
|
|
|
||||
|
MOISTURERESISTANCE
|
RH99
|
|
|
|
||||
|
FIRE CLASS
|
(ASTM E1264) Class A2per CE，lame Spread: 25 or less Smoke Developed: 50 or less
|
|
|
|
||||
|
MILDEW RESISTANC
|
Fiberglass substrate is inherently resistantto the growth of mold and mildew.
|
|
|
|
||||
|
RECOVERABLE
|
71%
|
|
|
|
||||
|
WARRANTY 15Y
|
15Year ，
|
Useful life 50Y
|
|
|
||||
Product Description

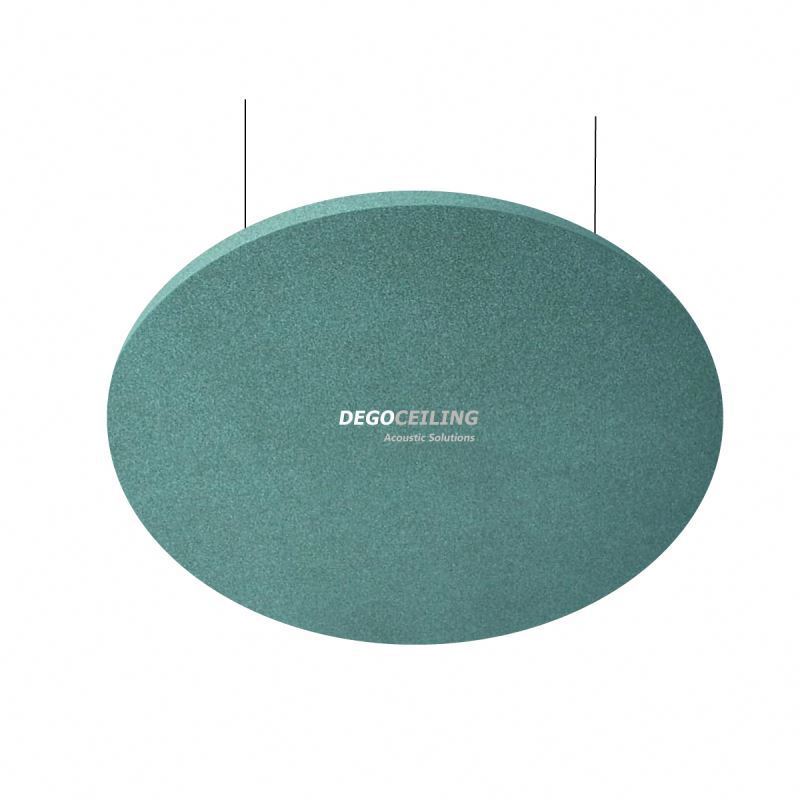

Degofon - Acoustic Ceiling Cloud
The
Degofon - Acoustic cloud ceiling panels
is a high-performance ceiling cloud designed to hang from the ceiling and capture ambient energy by absorbing sound as it hits the face of the panel, all while trapping powerful reflections from the ceiling on the back side of the panel.
The
Degofon - Acoustic cloud ceiling panels
is made from 1.5″ (40mm) thick high-density 6lb per cubic foot (96 kg/m³) glass wool that is completely encapsulated with micromesh and resin hardened edges. The acoustic panel is then covered in either acoustically transparent fabric or coated in DEGOACOUSTICs proprietary textured white paintable finish. Installation is easy using the included screw-in Helix cloud anchors, SlipNot suspension cables and ceiling hooks. As with all Degfofon panels has been fire tested, achieving the most stringent fire safety ratings in Europe CE mark.
DEGOFON BAFFLE
Rectangular
Baffles
·
a vertically suspended lightweight acoustical panel
·H
igh-density fiberglass wool core
-Excellent acoustic comfort.
-Particularly suitable for areas where suspended ceilings cannot be applied
-Factory preformed modular products for easy
installation.
installation.
-Various sizes and colors can be used to create beautiful designs-Modern linear appearance -Great acoustic performances
-CIntegrated spiral anchors
-factory fitted for easy，
-alignment and
installation -install individually or in groups -High light reflectance -for energy savings
installation -install individually or in groups -High light reflectance -for energy savings
Product description
Detailed detail
DEGO FACTORY
DEGO develops, manufactures and markets acoustic panels baffles and ceiling tiles systems.18 years of experience in many projects through architects, designers, agents, OEMs of famous brand companies
Our acoustic products cover glass fiber, rock wool, mineral wool, gypsum materials .
Customized surface textures, colors, shapes and modular standard products ，High quality products to serve many customers
We offer a wide range of acoustic ceilings for all purposes. Explore our comprehensive product systems.
Customized surface textures, colors, shapes and modular standard products ，High quality products to serve many customers
We offer a wide range of acoustic ceilings for all purposes. Explore our comprehensive product systems.
Acoustic ceiling TIles
Glass wool tile
600X600 600X 1200 Thick15 20mm
Fire performance A2
Moisture resistance RH99
Sound absorption NRC0.85
Stone Wool tile
600X600 600X 1200 Thick15 20mm
Fire performance A1
Moisture resistance RH99
Sound absorption NRC0.85
