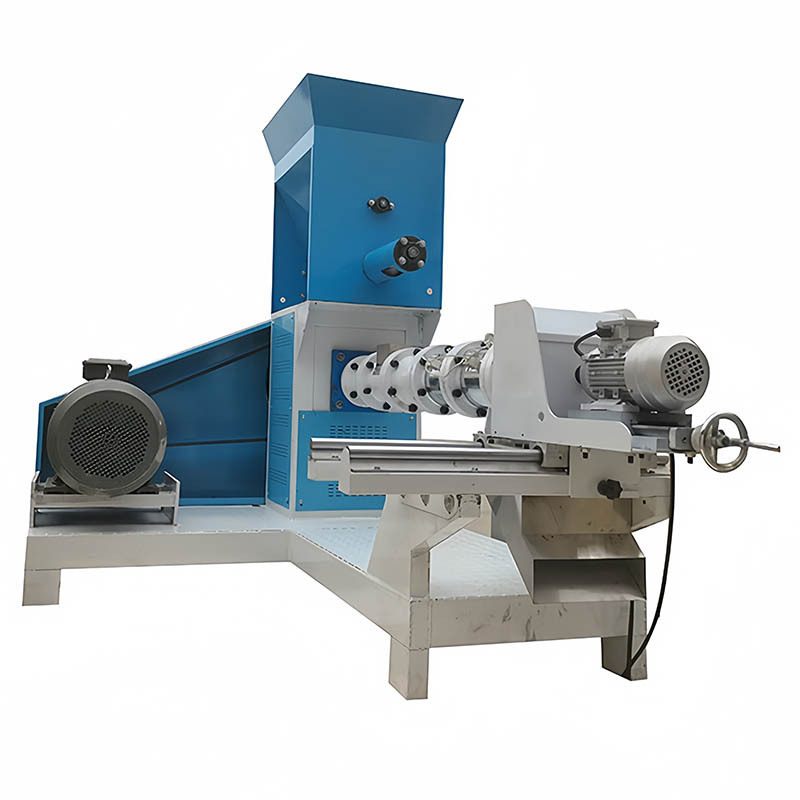

easy operation automatic food extruder machine for floating sinking trout fish feed machine

easy operation automatic food extruder machine for floating sinking trout fish feed machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $1150

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 220V/380V/415V

Dimension(L*W*H):: 3100*2850*1900

Weight:: 3800 kg

Marketing Type:: Factory Direct Supply

Product name:: Pet Animal Poultry Food Extruder Machine

Raw material:: Grains Powder

Function:: Producing Pet Food Animal Feeds Pellets

Material:: Durable Carbon Steel/ 304 Stainless Steel

Energy:: Electricity Diesel Steam Gas

Product:: Dog Cat Pig Bird Fish Feed Etc

Feature:: High Efficiency Automatic

Advantage:: Automatic \ Energy Saving \ Fine

After-sales Service:: Service Machinery Overseas

Quick Details

Max. Capacity:: 40-4000KG/H

Place of Origin:: Henan, China

Brand Name:: MAOSU

Voltage:: 220V/380V/415V

Dimension(L*W*H):: 3100*2850*1900

Weight:: 3800 kg

Marketing Type:: Factory Direct Supply

Product name:: Pet Animal Poultry Food Extruder Machine

Raw material:: Grains Powder

Function:: Producing Pet Food Animal Feeds Pellets

Material:: Durable Carbon Steel/ 304 Stainless Steel

Energy:: Electricity Diesel Steam Gas

Product:: Dog Cat Pig Bird Fish Feed Etc

Feature:: High Efficiency Automatic

Advantage:: Automatic \ Energy Saving \ Fine

After-sales Service:: Service Machinery Overseas

easy operation automatic food extruder machine for floating sinking trout fish feed machine

Product Overview

Working Principle: Put raw materials into feeder, they will be pressed by the screw with high pressure and temperature which makes the raw material fully cooked and sterilized. Then the pressed materials will be formed into pellets by shaping mould.It can make different size and shapes pellets by changing molds. Last the cutter device cut the formed pellets into different length as required.

Sample

Raw Material: (1). Raw materials like flour,corn meal,soybean meal,maize meal ,meat meal,bone meal,fish meal,vitamin etc.
(2). Raw materials Powder Size: 60-80 Mesh.
(3). Raw materials moisture content: 20-25%.
(4). Diameter of Final Pellets: 1mm-15mm (Optional).
(5). Length of the pellets can be adjustable by control the cutting knife

Our Advantages

Feeding hopper

1.Design with enlarged feeding hopper,

2.Built-in T-shaped mixing roller,

3.Screw auger feeding device,

Expansion heating device

1.Rapid heating element installation,

2.Extended design of expansion chamber,

3.Excellent expansion effect,

Cutting device

1.Toggle-type cutting blade design,
2.Equipped with independent cutting blade motor ,
3.Supports blade speed adjustment,

Control electric box

1.Separate control electric box design ,

2.Easily control the operation of the whole machine ,

3.Speed adjustment -temperature rise - one-button start-stop,

Cutter blade

1.Use high-strength material blades 2.Wear-resistant and durable, smooth cutting

PRODUCT SPECIFICATIONS

Model	Capacity (kg/h)	Main power (kw)	Feeding power (kw)	Screw diameter ( mm)	Cutting power (kw)
DGP40	40-50	7.5kw	0.4kw	Φ40mm	0.4kw
DGP50	70-80	11kw	0.4kw	Φ50mm	0.4kw
DGP60	120-150	15kw	0.4kw	φ60mm	0.4kw
DGP70	180-200	18.5kw	0.4kw	φ70mm	0.4kw
DGP80	250-300	22kw	0.4kw	φ80mm	0.6kw
DGP100	450-500	37kw	1.1kw	φ90mm	0.6kw
DGP120	600-700	55kw	1.1kw	φ120mm	1.5kw
DGP135	800-900	75kw	1.1kw	φ133mm	2.2kw
DGP160	1000-1200	90kw	1.5kw	φ155mm	2.2kw
DGP200	1800-2000	132kw	1.5kw	φ195mm	3.0kw
