- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
WANROOETECH
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Variable
-
Weight (T):
-
1
-
Product name:
-
Waste Wood Pallet Shredder Garden Shredder Wood Chipper Machines
-
Main Shaft Length:
-
600mm-1600mm
-
Blades Material:
-
SKD11
-
Blades material:
-
D2/SKD-11
-
Motor:
-
SIEMENS
-
Type:
-
Single Shaft
-
Weight:
-
550-7000KG
-
Power(W):
-
90
-
Capacity:
-
100-3000kg/h
-
Power:
-
22kw-75kw
Quick Details
-
Max.Production Capacity (kg/h):
-
3000
-
Place of Origin:
-
Jiangsu, China
-
Production Capacity (kg/h):
-
100 - 3000 kg/h
-
Brand Name:
-
WANROOETECH
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Variable
-
Weight (T):
-
1
-
Product name:
-
Waste Wood Pallet Shredder Garden Shredder Wood Chipper Machines
-
Main Shaft Length:
-
600mm-1600mm
-
Blades Material:
-
SKD11
-
Blades material:
-
D2/SKD-11
-
Motor:
-
SIEMENS
-
Type:
-
Single Shaft
-
Weight:
-
550-7000KG
-
Power(W):
-
90
-
Capacity:
-
100-3000kg/h
-
Power:
-
22kw-75kw

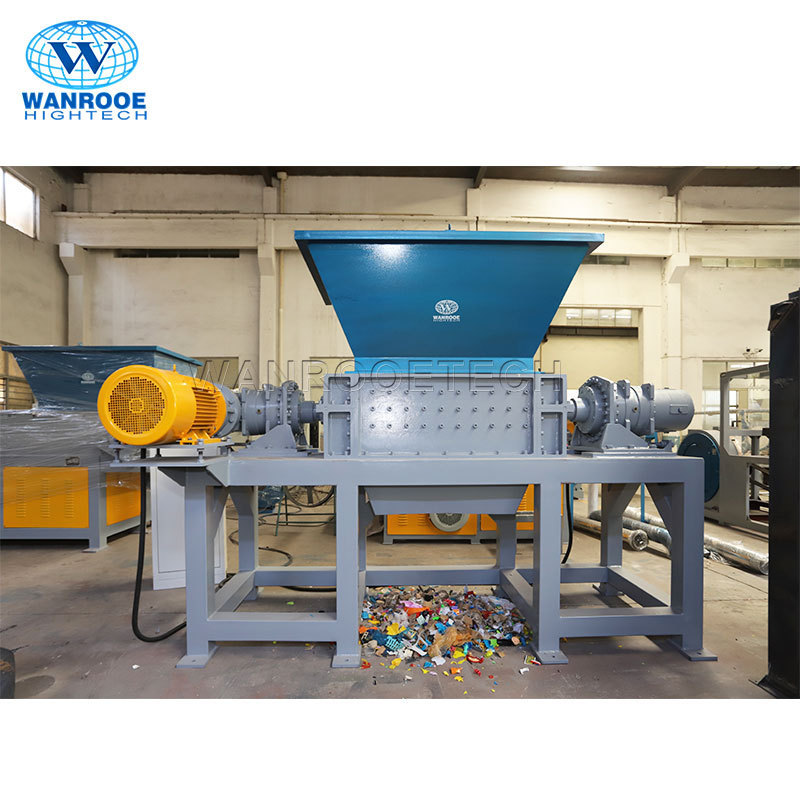

100-3000kg/h Waste Wood Pallet Shredder Garden Shredder Wood Chipper Machine
In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phone number, e-mail, facebook, whatsapp, wechat, etc.)
WANOOETECH’s PNSS series Shredders are used for pre-crushing of materials like plastic barrel, plastic drum, plastic bottle, PP woven jumbo bag etc., which are hard to crush using common granulator. The Pre-crushed materials can increases granulator’s capacity, life time of granulator’s blades. Our Shredder is equipped with SIEMENS PLC intelligent controlling system, it has the features of automatic stop, reserve direction run and alarming functions in case of possible material block, metal escape or overload.
The PNSS series plastic shredders and PNSC series strong crusher machine can compose a shredding system, they can meet any customers plastic size reduction requirement from 4mm to 50mm. If necessary, using our PNHS series plastic pelletizing line, customer also can make the recycled grinded plastic chips into plastic granules, which can be used in much more field. Here, WANROOETECH can supply you turn-key solutions plastic recycling solutions from waste dirty plastic to clean high quality recycled plastic granules.
2.Dual shafted, slow-speed, high-torque waste shredder with hardened steel cutters;
3.The two cutting rotors powerfully grab the feed material, and no matter the feed material is large piece of hard plastic or heavy tires, this machine can easily shred them into small pieces;
4.Double shaft shredder is able to process a number of different materials;shredder is designed with a powerful engine, long working length and aggressive input,Internal feeding volume bigger than traditional and common single shaft shredder machine and allow you using forklift truck to feed.
5.Heavy structure: the frame and structure of our shredders are made of high-thickness sheets and tubular. Blades are manufactured from high quality steel, suitable for shredding tough materials and for extra long life;
6.Depending on requirement, these discs (blades) are available in a wide range of quantities, qualities and shapes with the new double-shaft shredder;
7.Any overloads caused by foreign material are sensed by the PLC controller and cause the shaft rotation to stop and reverse direction to clear the foreign matter, and then resume;
8.Cutters removal and replacement can be carried out safely and simply.
9.Our shredders Use a planetary reducer, not a traditional gearbox, and the planetary gearbox has the following advantages:High Efficiency,Greater Stability,Compact Size,Higher Torque Density,Cost Effective Precision,High Radial Loads.
1.plastic sheets;
2.electronic waste;
3.scrap (components, subassemblies; consumables);
4.metals(lead, aluminum, copper, cable, barrels, sheet scrap, sheet metal pieces left over from production processes);
5.aluminum cans;
6.wood(wooden pallets or fruit boxes);
7.plastic(plastic bottles or canisters);
8.waste tire, rubber;
9.waste household appliances;
10.paper waste (cardboard, newspaper, office paper, books, magazine, kraft paper, paper core, cardboard tube, paper packaging material);
11.textiles (rags, garments, carpet);
12.animal bones and organic waste.
|
Model |
Main Power(kw) |
Hydraulic Power( kw ) |
Shredding Diameter |
Shredding Rotor Length(mm) |
Rotating&Fixed Blades QTY(PCS) |
END Plastic Scraps Size(mm) |
|
PNDS-600A |
15-22 |
2,2 |
320 |
600 |
32+2X2 |
30-50 |
|
PNDS-800A |
30-45 |
3 |
400 |
800 |
38+2X2 |
30-50 |
|
PNDS-1000A |
37-55 |
4 |
400 |
1000 |
58+2X2 |
30-50 |
|
PNDS-1200A |
55-90 |
5.5 |
400 |
1200 |
95+2X2 |
30-50 |
|
PNDS-1500A |
75-132 |
5.5 |
480 |
1500 |
110+2X2 |
30-50 |
