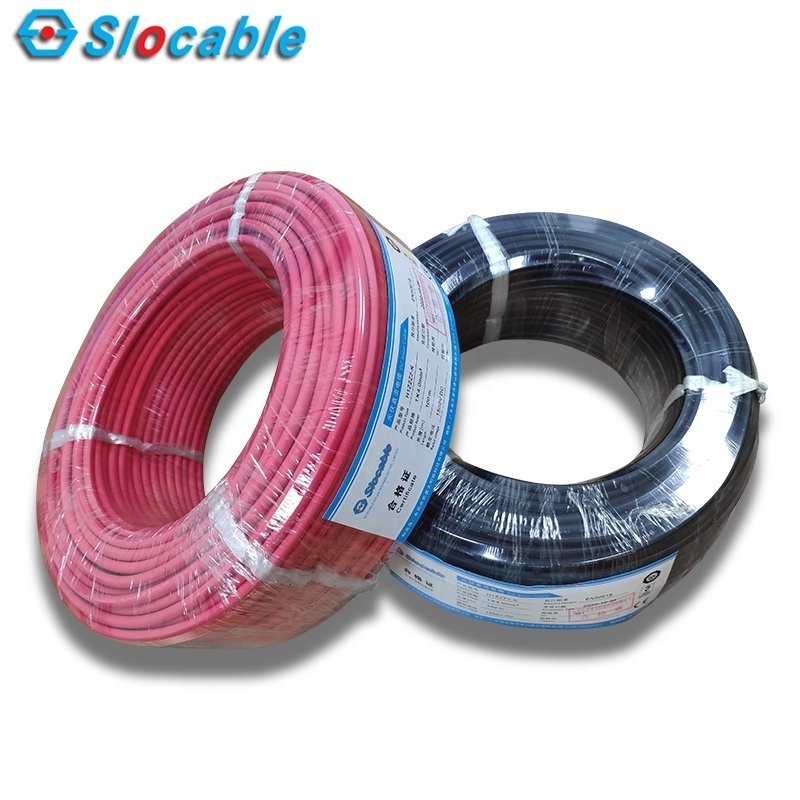

Factory High Quality TUV CE certification PV Cable Fire Resistant Cables Single/Twin Core DC Solar Cable
Factory High Quality TUV CE certification PV Cable Fire Resistant Cables Single/Twin Core DC Solar Cable
Factory High Quality TUV CE certification PV Cable Fire Resistant Cables Single/Twin Core DC Solar Cable
Factory High Quality TUV CE certification PV Cable Fire Resistant Cables Single/Twin Core DC Solar Cable
Factory High Quality TUV CE certification PV Cable Fire Resistant Cables Single/Twin Core DC Solar Cable
Factory High Quality TUV CE certification PV Cable Fire Resistant Cables Single/Twin Core DC Solar Cable
Factory High Quality TUV CE certification PV Cable Fire Resistant Cables Single/Twin Core DC Solar Cable
Factory High Quality TUV CE certification PV Cable Fire Resistant Cables Single/Twin Core DC Solar Cable

Factory High Quality TUV CE certification PV Cable Fire Resistant Cables Single/Twin Core DC Solar Cable

FOB Reference Price: Get Latest Price
≥100 Meters
US $0.42
≥2000 Meters
US $0.33
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Jacket:
PE
Place of Origin:
Guangdong, China
Brand Name:
Slocable
Model Number:
CA104-AL solar cable
Certification:
TUV
Cross section of solar cell cable:
1x4.0mm2
Strand design:
56x0.3mm
Conductor diameter of solar cell cable:
2.6mm
Conductor resistance of solar cell cable:
7.85Ω/km
Outer diameter of solar cell cable:
5.6mm
Rated voltage of solar cell cable:
1500 VDC
Temperature range of solar cell cable:
-40℃~90℃
Working life:
25 years
Keywords:
Solar Cable

Quick Details

Insulation Material:
XLPE(XLPO)
Application:
Cable for photovoltaic power generation system
Conductor Material:
Tinned Aluminum Alloy
Jacket:
PE
Place of Origin:
Guangdong, China
Brand Name:
Slocable
Model Number:
CA104-AL solar cable
Certification:
TUV
Cross section of solar cell cable:
1x4.0mm2
Strand design:
56x0.3mm
Conductor diameter of solar cell cable:
2.6mm
Conductor resistance of solar cell cable:
7.85Ω/km
Outer diameter of solar cell cable:
5.6mm
Rated voltage of solar cell cable:
1500 VDC
Temperature range of solar cell cable:
-40℃~90℃
Working life:
25 years
Keywords:
Solar Cable
Products Description
Specifications
Cross Section
Conductor Diameter
External Diameter
Max DC Resistance
Rated Current
1x2.5mm²
2.5mm²
2mm
5.1mm±0.2
8.21Ω/km
30A
1x4.0mm²
4.0mm²
2.5mm
5.6mm±0.2
5.09Ω/km
50A
1x6.0mm²
6.0mm²
3.2mm
6.3mm±0.2
3.39Ω/km
70A
1x10.0mm²
10.0mm²
4mm
7.2mm±0.2
1.95Ω/km
95A
1x16.0mm²
16.0mm²
5.5mm
8.5mm±0.2
1.24Ω/km
132A
1x25.0mm²
25.0mm²
6.5mm
9.5mm±0.2
0.795Ω/km
176A
1x35.0mm²
35.0mm²
7.7mm
11.1mm±0.2
0.565Ω/km
218A
1x50.0mm²
50.0mm²
9.5mm
13.5mm±0.2
0.393Ω/km
280A
Advantage of PV Cable · Dual wall insulation. Electron beam cross-linked.
· Resistance to UV, water, ozone, fluids, salt, general weathering.
· Halogen free, flame, retardant, low toxicity.
· Flexibility and stripping performance.
· TUV, CE, IEC approved.
· High voltage and high current carrying capacity.
· Resistance to abrasion.
Technical Data
Conductor: 99.99% copper, tinned
UV resistance: EN60811-501
Insulation material: XLPE(XLPO)
High voltage and High current
Double walls insulation
Temperature range: -40°C ~ +85°C
Halogen-free material: EN50525-1
Color: Black/Red/Blue/Brown/Grey/Yellow
OEM & ODM can be accepted
Smallest permissible bending radius:
5 x D
Flame test: EN60332-1-2
Smoke density: EN61034-2
Ozone resistance: EN50396
Oil resistance: EN60811
