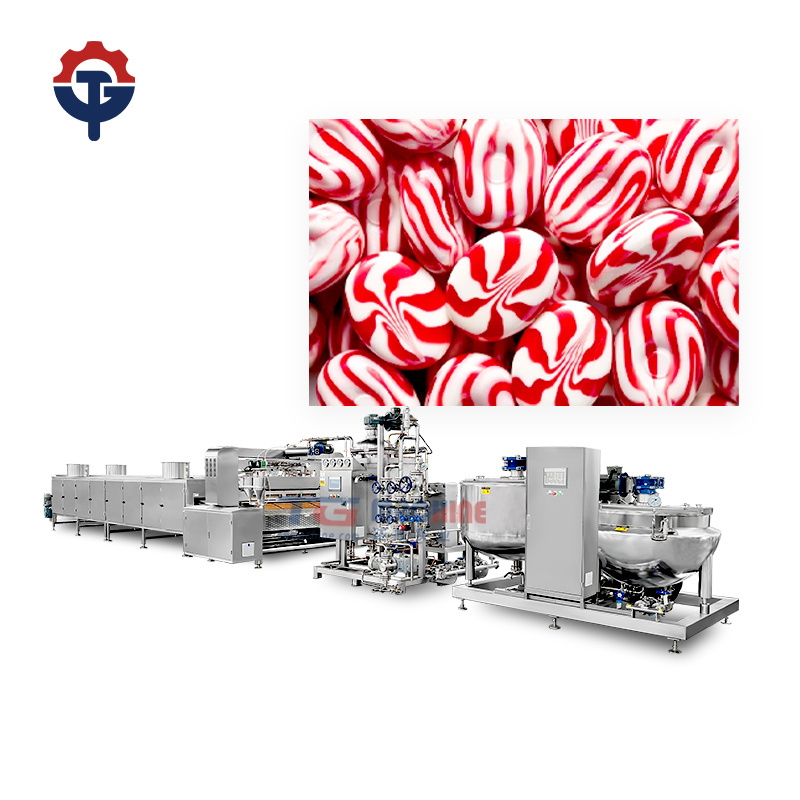

hard candy continuously vacuum cooker hard candy making machine equipment

hard candy continuously vacuum cooker hard candy making machine equipment

FOB Reference Price: Get Latest Price

≥1 Sets

US $45000

≥2 Sets

US $43000

≥3 Sets

US $40000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: 22

Weight:: 2000 KG

Year:: 2023

Capacity:: 80-800kg/h

Package:: Standard Wooden Case

Function:: Multifunctional

Application:: Snack hard candy

Product name:: Sandwich hard candy

After-sales Service Provided:: Engineers

Material:: 304 Stainless Steel

Name:: Supplements Hard Candy

Usage:: Food Industry Equipment

Type:: Fully Automatic

Quick Details

Place of Origin:: China

Brand Name:: TGmachine

Voltage:: 220/380

Power:: 22

Weight:: 2000 KG

Year:: 2023

Capacity:: 80-800kg/h

Package:: Standard Wooden Case

Function:: Multifunctional

Application:: Snack hard candy

Product name:: Sandwich hard candy

After-sales Service Provided:: Engineers

Material:: 304 Stainless Steel

Name:: Supplements Hard Candy

Usage:: Food Industry Equipment

Type:: Fully Automatic

Final Products

Model	GD150S	GD300S	GD450S	GD600S	GD1200S
Capacity	150kg/h	3000kg/h	450kg/h	600kg/h	1200kg/h
Lollipop weight	According to the lollipop shape and size
DeposIting speed	25-35n/min	25-35n/min	25-35n/min	25-35n/min	30-60n/min
Steam requirement	250kg/h,0.5-0.8Mpa	300kg/h,0.5-0.8Mpa	450kg/h,0.5-0.8Mpa	500kg/h,0.5-0.8Mpa	1200kg,0.5-0.8Mpa
Compressed air	0.2m³/min,0.4-0.6Mpa	0.2m³/min,0.4-0.6Mpa	0.25m³/min,0.4-0.6Mpa	0.3m³/min,0.4-0.6Mpa	0.6m³/min,0.4-0.6Mpa
Working condition	temperature 20-25, humidity 45-55%
Electric power	18kw/380v	27kw/380v	34kw/380v	38kw/380v	56kw/380v
Total length	15m	17m	17m	20m	22m
Gross weight	3500kg	4000kg	4500kg	500kg	7500kg

Products Description

Cooking system

Cooking system is consists of jacket cooker,cooling tank,storage tank,rotor pump,warming keeping sysytem,independent control cabinet,stainless steel frame,etc

Materials:SUS304 Stainless steel

Motor:WEG/ABB/Siemens

Transportation pump:Durrex lobe pump

Temperature control:Omron

lnduction Vacuum Micro-film Cooker

VEC series induction vacuum micro film cooker, is the choice for customers thoes who have no steam boiler but want to make hard candy with vacuum micro film cooking.The traditional preheating chamber and micro film types are changed into rotor cooking. The machine is equiped with Devices with two sets of electromagnetic generators and each set can be adjusted by 3-5 levels according to the heating power. Millisecond corresponding speed leads to accurate control of boiling process. The machinery features advantages of low investment, simple equipments and so on. It is a good choice for the new factory to make micro film cooking without steam boiler

Depositing system

High accuracy fabrication technology for deposit piston and copper makes the same candy weight.Flavor and color mixer can effectively mix flavor color and other ingredients.The an oil-spraying machine makes the candy easier to demold.

Cooling system

The cooling system is used to cool the temperature of the lollipop.Stable running with low noise and long life.It is much stronger than other factory with 1mm or 2mm thickness frame.

Processing Equipment For Production

CIP cleaning system

Automatic tray wahser

Drying trays and trolleys

Why Choose Us

Engineers field one to one guidance

sufficient stock of standard accessories,ready to ship

Professional after-sale team provide 24 hours online technical support

A variety of professional recipes available for free

The use of CNC machining center, flexible welding platform, wire cutting process, etc. ensures the machining accuracy of the machine, which in turn makes the machine have better product production effect and better appearance.

The machine is made of all stainless steel, which can be washed directly with water gun without rust. Product will be produced in a more convenient way in a stricter sanitary environment. At the same time, this makes the machine have a more stable and durable service life.

Company Introduction

TGMachine is proud of the machine design with sanitary and easy washing structure for Gummy candy with C*D or T*C or Vitamin and Minerals. Etc functional products. It is ideal equipment that can produce good quality gummies with the saving of both the manpower and the space occupied. Optional with Touch screen, SERVO and PLC for Automatic operation, one shot system can make one color, two color or multi-color, center filled Gummy candy (optional) also available just change the manifold and nozzles. The cooling tunnel includes automatic Chain type/Air Knife/Brush de molding system as option. The quality of the whole production line far exceeds the industry standard , higher level sanitary structure design and fabrication, all stainless steel materials are SUS304 and SUS316L in the line and it can be equipped with UL certified or CE certified components for CE or UL certificated.

FAQ

Q:Are you trading company or manufacturer ?

A:We integrate industry and trade, which is our advantage. We can give you lower price and more comprehensive service Q:What kind terms of payment can be accepted? A:Normally we can work on T/T term or L/C term. Q:What about the Minimum order quantity? A:The MOQ for mold is 100pcs.The MOQ for machine is 1 pcs. Q:Which incoterms 2010 terms can we work? A:Normally we work on FOB,CFR,CIF. Q:What about the deliverty time? A:30-90 days after receving the deposit. Q:What about the warranty time? A:12 months after delivery
