Quick Details
-
Brand Name:
-
Chuanghe
-
Model Number:
-
CH-pipe clamp-2003
-
Type:
-
hose clamp
-
Product name:
-
steel hose clamp
-
Size:
-
6mm 1/4 5/8" 149mm,custom sizes
-
Design:
-
as Per Your Request
-
Application:
-
clamp for heavy duty,mounting, strapping, clamping, and positioning
-
Function:
-
For automotive, industrial and agricultural applications
-
keyword:
-
hose pipe clamp
-
other clamp:
-
rubber hose clamp,spring hose_clamp
-
Hot Exporting Country:
-
Taiwan,American,Germany
Quick Details
-
Measurement system:
-
INCH, Metric
-
Material:
-
Stainless steel, Metal, carbon steel
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Chuanghe
-
Model Number:
-
CH-pipe clamp-2003
-
Type:
-
hose clamp
-
Product name:
-
steel hose clamp
-
Size:
-
6mm 1/4 5/8" 149mm,custom sizes
-
Design:
-
as Per Your Request
-
Application:
-
clamp for heavy duty,mounting, strapping, clamping, and positioning
-
Function:
-
For automotive, industrial and agricultural applications
-
keyword:
-
hose pipe clamp
-
other clamp:
-
rubber hose clamp,spring hose_clamp
-
Hot Exporting Country:
-
Taiwan,American,Germany
China manufacturer 6mm 1/4 5/8" 149mm automotive adjustable high pressure hose clamps taiwan single ear carbon steel hose clamp
| Product name |
hose clamp |
| Size |
6mm 1/4 5/8" 149mm,custom |
| Available material | 1.Stainless Steel: SS201, SS303, SS304, SS316, SS410, SS420 |
|
2 .Carbon steel: C1006,C1010,C1018,C1022,C1035K,C1045 |
|
|
3. Alloy steel: SCM435,10B21 |
|
|
4.Copper :C36000 ( C26800), C37700 ( HPb59), C51000, C52100, C54400 |
|
|
5.According to customer demand |
|
|
Surface treatment |
Zn- Plated,Ni-plated,Passivated,Tin-plated,Chromate, Polish,Electro Painting,furnace Black, Black Anodize,Plain,Chrome plated,etc. |
| Machining Equipment | Machining Center / CNC Lathes / Grinding Machines / Milling Machines / Lathes / Wire-cuts / Laser Cuts / CNC Shearing Machines / CNC Bending Machines / etc. |
| Standard | DIN,GB,JIS,BS,ANSI, Non-standard |
| package |
Plastic bag / small box +outer carton +pallets |
Specifications:
1)Material :300 grade series stainless steel , carbon steel
2)size:various sizes and types are available ,after your requirement
CLAMP KINDS
(1.) Germany Type hose clamp with welding(BAND WIDTH: 9MM & 12MM)
(2.) Germany Type hose clamp without welding( Band width: 9MM & 12MM)
(3.) British Type hose clamp, BS 5315 (Band width: 9.7MM & 11.7MM), with TUBE HOUSING, WITH WELDING, with RIVETED HOUSING.

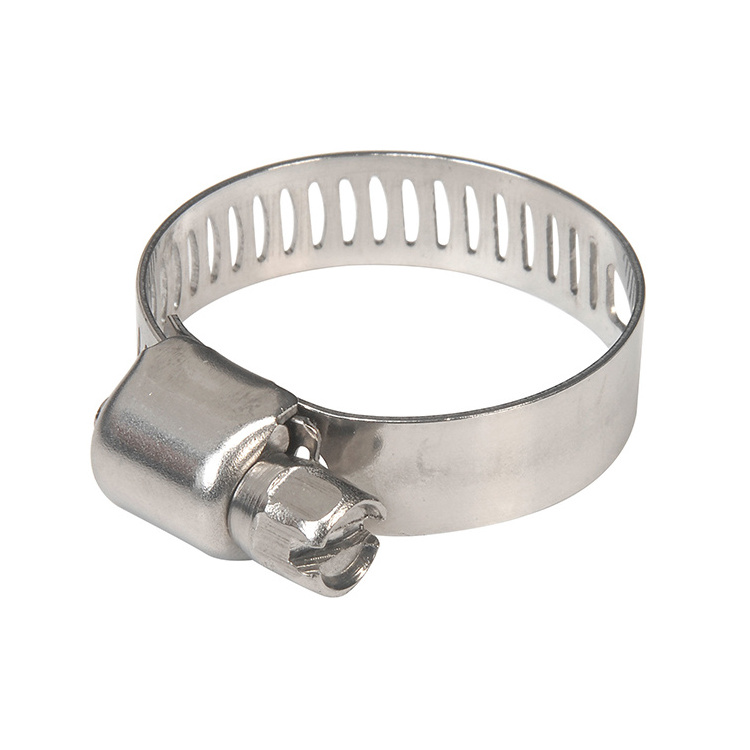

(4.) American type hose clamp(Band width: 8MM & 12.7MM)
(5.) 2-Pcs Housing perforated band hose clamp (Band width: 12.5MM & 14.2MM & 15.8MM)
(6.) Hi-torque clamp with washers and liner (Band width: 14.2MM & 15.8MM)
(7.) Quick release hose clamp(Width: 12.7MM)
(8.) Unitary clamp( ROBUST CLAMP)
(9.) T-bolt hose clamp
(10.) T-sping hose clamp (11.) V-BAND CLAMP (12.) Heavy duty clamp with double bolts
(13.) Single ear clamp/Double ears hose clamp (14.) MINI HOSE CLAMP
(15.) Double wire hose clamp
(16.) Spring hose clamp
(17.) Heavy duty pipe clamp
(18.) "U" type pipe clamp
(19.) " F" type pipe clamp
(20.) Type A/B/C/E/G/F coupling
Clamps are used in securing hoses, pipe, cable, tube, fuel lines etc. Perfect to apply in automotive, industrial, boat/marine, shield, household etc. both indoor or outdoor.
Clamp kit are flexible and ductile with wide adjustable size range from 6 to 38mm/0.24-1.5 inches. Fit Hose Diameter: 6-12mm, 10-16mm, 13-19mm, 16-25mm, 19-29mm, 22-32mm, 25-38mm.
Click here to get more information
Reference size hose clamps
| size | inch | mm | 6 width(mm) 8 |
| 4 | 7/32'-5/8' | 6-16 | 6 |
| 6 | 7/16'-3/4' | 11-20 | 6 |
| 8 | 1/2'-7/8' | 13-23 | 6 |
| 9 | 1/2'-1' | 13-25 | 6 |
| 10 | 1/2'-11/16' | 13-27 | 6 |
| 12 | 1/2'-11/4' | 18-32 | 6 |
| 16 | 13/16'-2' | 21-38 | 8 |
| 20 | 13/16'-13/4' | 21-44 | 8 |
| 24 | 11/16'-11/16' | 27-51 | 8 |
| 28 | 15/16'-21/4' | 35-57 | 8 |
| 32 | 19/16'-21/2' | 40-63 | 10 |
| 36 | 113/16'-23/4' | 46-70 | 10 |
| 40 | 21/16'-3' | 52-76 | 10 |
| 44 | 25/16'-31/4' | 59-82 | 10 |
| 48 | 29/16'-31/2' | 56-89 | 10 |
| 52 | 213-16'-31/2' | 59-82 | 10 |
| 56 | 31/16'-4' | 78-101 | 10 |
| 60 | 35/16'-41/4' | 84-108 | 10 |
| 64 | 39/16'-41/2' | 91-114 | 10 |
| 72 | 41/8'-5' | 105-127 | 10 |
| 80 | 45/8'-5' | 118-140 | 12 |
| 88 | 51/8'-6' | 130-152 | 12 |
| 96 | 55/8'-61/2' | 143-165 | 12 |
| 104 | 61/8'-7' | 155-178 | 12 |
Our Advantages
(1)we have the ability to produce any Product according to your mechanical drawing or sample.
(2)Meeting your individual demands is our aim: Requirements which exceed standard dimensions regarding depth of Product thread, form, pitch, or thread angle are processed on demand.
(3)We use the most highly advanced CNC equipment on the market to process raw materials
(4) We are professional manufacturer of hose clamp in China had over 10 years.
(5)We have the ability to use English, Japanese, Chinese, and other languages to communicate with customers.
(6)Our Company Product represents a high quality of products thanks to an implemented quality management system according to ISO 9001:2008.
(7) We are equipped with more than 60 sets of machines and equipment, such as: CNC lathes, CNC milling machines,Jig grinders, punching machines, drilling machines, EDM machines, jig grinders, ID/OD grinders,,surface grinders, and various other grinders, saws and inspection equipment.
(8)Reasonable price and higher quality because we have rich experiece production workers and professional engineers and strong raw material purchasing team.
(9)Excellent sale service in time for both before-sale and after-sale by Email, Telephone and face to face.
Manufacture Process
1.Design moulds→Confirm samples→Purchase material→ Blanking→ Punching
2.Bending→ Forming→Surface treatment→ Inspection→ Assemble products→Package
3.Material: steel, iron, stainless steel, aluminum, copper, etc > Surface treatment: zinc/ nickel/ chrome/ plated, spray paint, copper satin, etc .
4.H ose clamps of the surface treatment can be done in any color .
