IN-V1000 Hospital Automatic Optical Lens Edger Machine Price

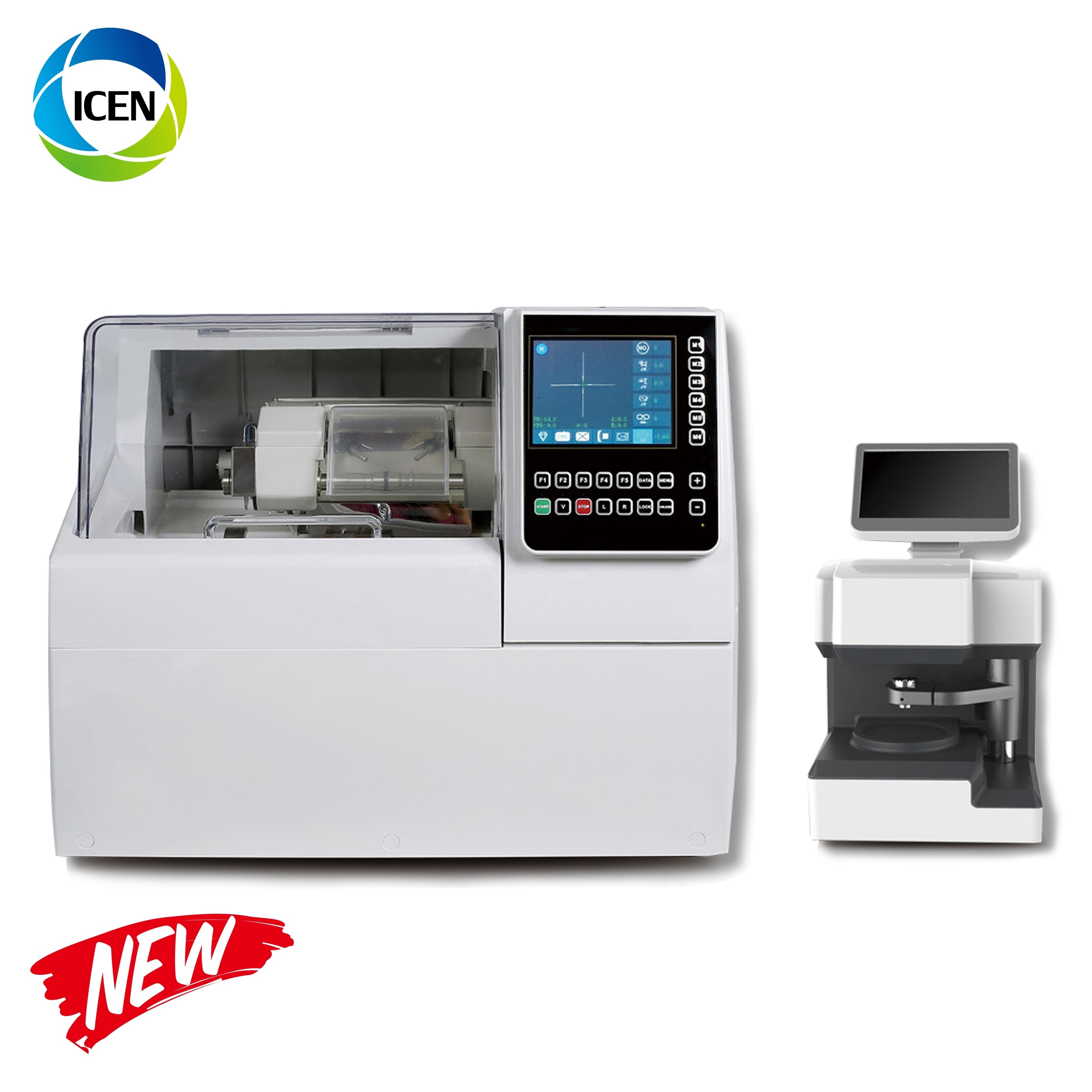

The main body of Automatic Lens Edger IN-V1000:

• 1.High-resolution 640*480,true color 5.7 inch LCD,display 1:1 actual size of lens graphics,icons,user-friendly operator interface.
• 2.Smooth shape ergonomic design,main engine,scanners split type configuration.
• 3.Many varieties of lens processing program,including the CR-39 resin piece,high flap lens,superhard diaphragm,glass,PC lens and Trivex lenses,which can fully meet the needs of the industry.
• 4.It has two modes of operation with the optical center/geometric center.
• 5.It can be corrected scanning data,including axis and the distance between nose and eye.
• 6.It has 100mm diameter grinding wheel,can be processed high curved lenses.
• 7.It has bevel polishing function,significant legislation glasses distinguished.
• 8.Inheritance the tradition of LE series lens edger security,stablity,strong,durable.

Direction: 1.rough grinding wheel: used for CR or PC rough grinding
2.bevel polishing wheel: used for CR or PC bevel polishing
3.flat polishing wheel:used for CR or PC flat polishing
4.glass rough grinding wheel: used for glass rough grinding

5.bevel fine grinding wheel: used for bevel fine grinding
6.flat fine grinding wheel: used for flat fine grinding

Diagram direction:
(1) outer cover (voice-proof)
(2) water-proof inner cover
(3) head pressure adjusting knob
(4) the head
(5) the sensor of head base(cursor)
(6) lens chuck
(7) power switch
(8) wheels
(9) horizontal adjustment foot
(10) operation panel

Direction:
F1:lens choice(PC,resin lens,HI Index,HC superhard coating,glass lens,Trivex)
F2:choice for bevel and flat shape
F3:chuck pressure choice 1/2/3
F4:polishing choice
F5:Boxing system and PD system choice
DATA:adjustment to the scanning data
MENU:menu
M1:ID works number(not available yet)
M2:X(horizontal excursion)
M3:Y(vertical excursion)
M4:θ(turning angle)
M5:DBL(distance of nose bridge)
M6:SIZE choice----default
+:increase
-:decrease
START:start
V:rebuilding
