Quick Details
-
Brand Name:
-
Sinya
-
Material::
-
Stainless Steel,Alloy
-
pressure::
-
6000psi
-
Body material::
-
Stainless Steel 316
-
Certificate::
-
ISO9001:2008 CE
-
Connction type::
-
1/4" ~ 1/2",6 to 12mm
-
compression ends::
-
female thread npt1/4 NPT1/2
-
Maximum working pressure:
-
6000Psi (413bar)
-
Thread:
-
BSPP BSPT NPT
-
Packing:
-
Standard Packing
-
MOQ:
-
3 pcs
Quick Details
-
Port Size:
-
1/4" and 1/2",6mm~ 12mm
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
XYF-XAG-SK - B
-
Brand Name:
-
Sinya
-
Material::
-
Stainless Steel,Alloy
-
pressure::
-
6000psi
-
Body material::
-
Stainless Steel 316
-
Certificate::
-
ISO9001:2008 CE
-
Connction type::
-
1/4" ~ 1/2",6 to 12mm
-
compression ends::
-
female thread npt1/4 NPT1/2
-
Maximum working pressure:
-
6000Psi (413bar)
-
Thread:
-
BSPP BSPT NPT
-
Packing:
-
Standard Packing
-
MOQ:
-
3 pcs
Product Description
|

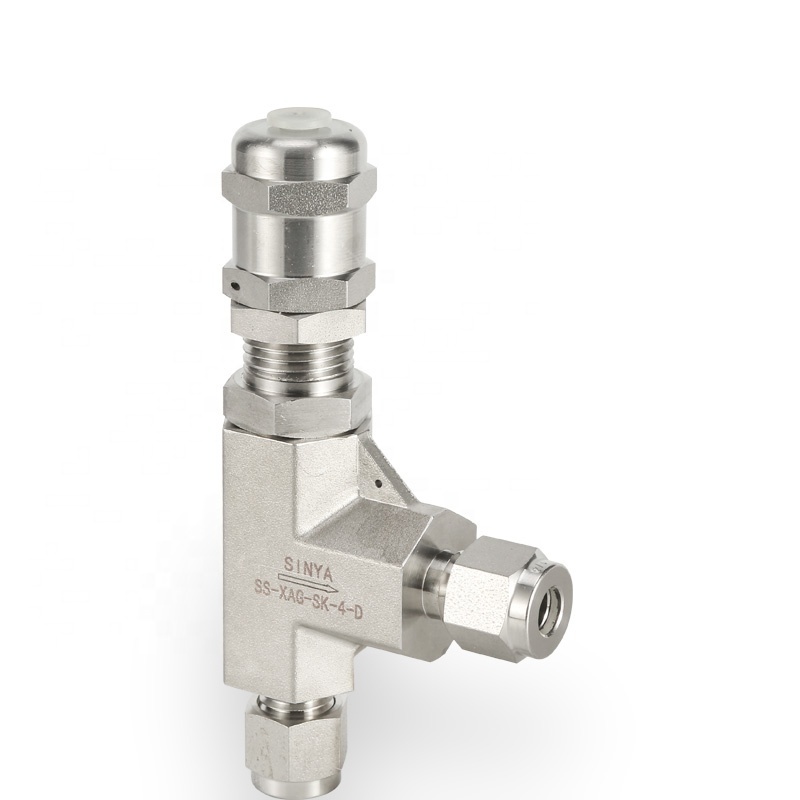

XYF-XAGS eries valves are relief valves used in low pressure environment.They are normally closed when system pressurer each set pressureing,valves will open and when system pressure below set pressure , valves will close.
|
|
|
|
|
||||
|
■Maximum working pressure 6000Psi (413bar)
|
|
|
|
|
||||
|
■Set pressures from 50 to 6000 psig (3.4 to 413bar)
|
|
|
|
|
||||
|
■Connction type: 1/4“ and 1/2”，6 to 12mm compression ends, female thread npt 1/4 NPT 1/2
|
|
|
|
|
||||
|
■For different setting pressure range, springs are with different colours.
|
|
|
|
|
||||
|
■Springs are changeable for different setting pressure range.
|
|
|
|
|
||||
|
XYF-XAG-SK
|
|
|
|
|
|
|
|
|||||||
|
Ordering number
|
connection size
|
|
size(mm)
|
|
|
|
|
|||||||
|
|
Inlet size
|
Outlet size
|
H2
|
H1
|
A
|
B
|
H
|
|||||||
|
-XAG-SK-4
|
1/4
|
1/4
|
68.6
|
36.6
|
40.6
|
10.9
|
105.2
|
|||||||
|
-XAG-SK-8
|
1/2
|
1/2
|
104
|
46.5
|
46.5
|
12.7
|
150.5
|
|||||||
|
-XAG-SK-6mm
|
6mm
|
6mm
|
68.6
|
36.6
|
40.6
|
10.9
|
105.2
|
|||||||
|
-XAG-SK-8mm
|
8mm
|
8mm
|
|
|
|
|
|
|||||||
|
-XAG-SK-12mm
|
12mm
|
12mm
|
104
|
46.5
|
46.5
|
12.7
|
150.5
|
|||||||
Our Services
|
Sinya tries to get the satisfaction of all users by providing Premium Quality products and services in the field of Instrumentation tube fitting & valves ,and also providing an appropriate combination of price, quality, satisfying services and fast delivery.
Its products are provided based on three fundamental factors: 1) Quality 2) Variety 3) Reliability |
|
|
|
|
||||
|
1.Custom design, CAD drawing
|
|
|
|
|
||||
|
2.P&ID
|
|
|
|
|
||||
|
3.Component selection
|
|
|
|
|
||||
|
4.Bill of material
|
|
|
|
|
||||
|
5.Professional services such as bending and welding
|
|
|
|
|
||||
|
6.Testing to guarantee the system
|
|
|
|
|
||||
|
7.Professional packaging and delivery
|
|
|
|
|
||||
Products Display
|
Contact us to get more information :
|
|
|
|
|
||||
|
Tube Fittings
|
Check Valves
|
Manifolds Valves
|
In-line Filters
|
Thermowells
|
||||
|
Pipe Fittings
|
Relief Valves
|
Distribution Manifolds
|
Instrumentation Tubing
|
Syphons
|
||||
|
Needle Valves
|
Air Headers
|
Bleed & Purge valves
|
Sample Cylinders
|
Tube Clamps
|
||||
|
Ball valves
|
Gauge Valves
|
T-type Filters
|
Pots and Vessels
|
|
||||
Packaging & Delivery
|
Mode of packing:
|
Export standard package or as your detail request.
|
|
|
|
|
||||
|
Delivery time:
|
2 weeks after receipt of payment
|
|
|
|
|
||||
|
Mode of shipment:
|
By Express like DHL,Fedex,TNT Ups.
|
|
|
|
|
||||
Our Company
|
1.Established in 1995.
|
|
|
|
|
||||
|
2.We are professional manufacturer of Instrumentation Tube Fittings, Pipe Fittings, Needle valves, Ball Valves, Check Valves, Manifold Valves, DIN 2353 Fittings, Sampling systems, Water Heater Accessories.
|
|
|
|
|
||||
|
3.Products are available in the variety of different materials, such as Stainless steel 316/316L, Duplex, Super Duplex, Hastelloy, Monel, Inconel, Incoloy, Titanium, Zirconium.
|
|
|
|
|
||||
|
4.We located in Zhenjiang City, near shanghai port with convenient transportation access worldwide.
|
|
|
|
|
||||
|
5.Our products are widely used in industries of Chemical, Petrochemical, Power Generation, Oil, Gas, Shipbuilding.
|
|
|
|
|
||||
|
6.Always available to discuss your requirements and ensure full customer satisfaction.
|
|
|
|
|
||||
|
7.We have Japanese Mazak CNC machine, 3D measure equipment, Raw Material chemical composition inspection equipment, High pressure test equipment, etc.
|
|
|
|
|
||||
|
8.We have obtained ISO9001 certificate, CE Certificate.
|
|
|
|
|
||||
|
9.Our products are exported to Middle east, North America, South America, South East Asia, Europe and other countries.
|
|
|
|
|
||||
|
10.We also welcome OEM and ODM orders. Please feel free to contact and visit us.
|
|
|
|
|
||||
