Quick Details
-
Graphic Format Supported:
-
AI, BMP, Dwg, DXF, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Questt
-
Weight (KG):
-
450 KG
-
Core Components:
-
laser tube
-
laser application:
-
CO2 Laser 3D marking system with big working area
-
Laser tube:
-
CO2 Laser RF metal Tube
-
Keywords:
-
CO2 laser marking
-
Software:
-
Special 3D marking software
-
Function:
-
Marking and Engraving Nonmetal
-
Color:
-
Blue or red
-
Service:
-
Oversea service offered
-
Certification:
-
ce
-
After-sales Service Provided:
-
Online support
Quick Details
-
Engraving Area:
-
600*600mm, 800*800mm etc
-
Laser Type:
-
CO2
-
Engraving Speed:
-
7000mm/s
-
Graphic Format Supported:
-
AI, BMP, Dwg, DXF, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Questt
-
Weight (KG):
-
450 KG
-
Core Components:
-
laser tube
-
laser application:
-
CO2 Laser 3D marking system with big working area
-
Laser tube:
-
CO2 Laser RF metal Tube
-
Keywords:
-
CO2 laser marking
-
Software:
-
Special 3D marking software
-
Function:
-
Marking and Engraving Nonmetal
-
Color:
-
Blue or red
-
Service:
-
Oversea service offered
-
Certification:
-
ce
-
After-sales Service Provided:
-
Online support
Products Description
Introduction

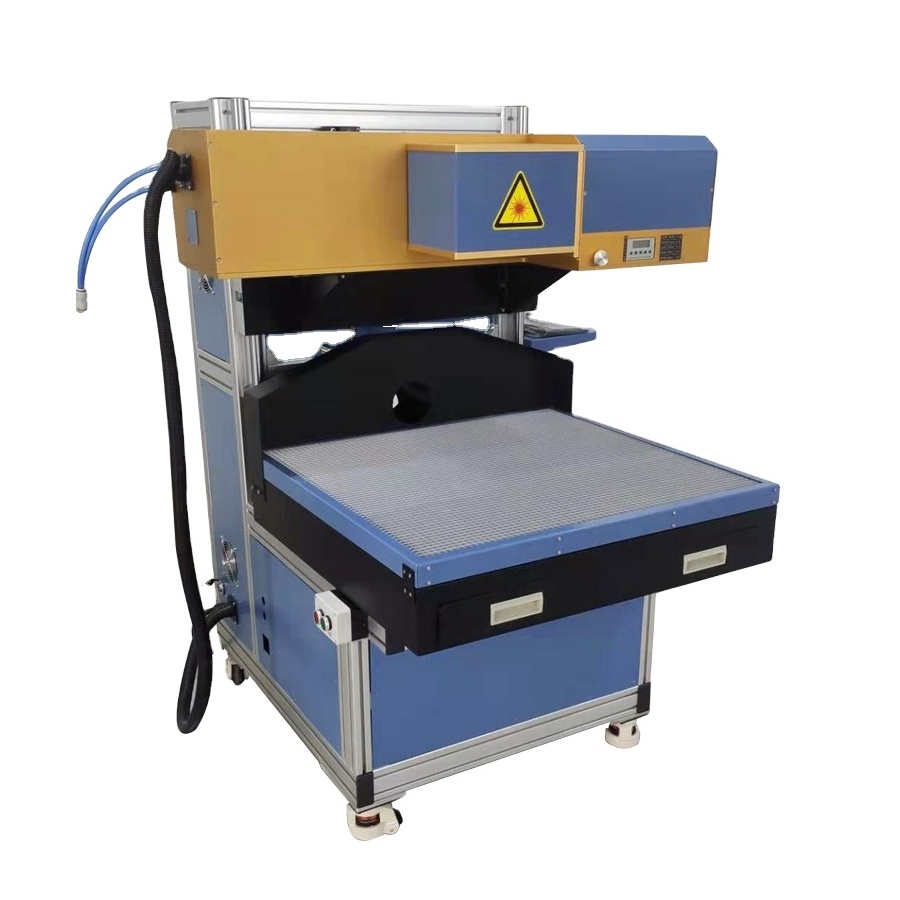

3D dynamic laser marking machine adopts RF CO2 Laser from Coherence, USA, 3D dynamic scanner, marking a larger scope, focusing spot is more delicate, widely used in the big marking area application field, high speed and precise marking automation.
It has compact design, auto-focus, motorized up and down worktable and red-light position. It can satisfy the application in different industries such as marking, cutting, engraving, color removal, paint processing, material micro-processing and etc. It adopts Aluminum frame structure, and the latest motor driving in the whole worktable platform to ensure the stable qualities. The adjustment of laser opticpath is driven by two galvanometer motors (XY), and the third axis is driven by pre-scanning gathered system with the liner motor to make a widely adjustment for focus distance. The advantage is high speed, high precision, high power and large marking area.
It has compact design, auto-focus, motorized up and down worktable and red-light position. It can satisfy the application in different industries such as marking, cutting, engraving, color removal, paint processing, material micro-processing and etc. It adopts Aluminum frame structure, and the latest motor driving in the whole worktable platform to ensure the stable qualities. The adjustment of laser opticpath is driven by two galvanometer motors (XY), and the third axis is driven by pre-scanning gathered system with the liner motor to make a widely adjustment for focus distance. The advantage is high speed, high precision, high power and large marking area.
Product Paramenters
|
Type specification
|
QA-3D200-1600
|
QA-3D250-2200
|
|
Wave length of laser
|
10.6μm
|
10.6μm
|
|
Laser power
|
≥200W
|
250W
|
|
Laser repetition frequency
|
1kHz~100kHz
|
1kHz~100kHz
|
|
Carving scope
|
1600mmX 1600mm
|
2200mmX Unlimited length
|
|
Carving speed
|
10m/s
|
12000mm/s
|
|
Graphic Format Supported
|
AI, BMP, DWG, DXP, PLT, JPG
|
AI, BMP, DWG, DXP, PLT, JPG
|
|
Repetition precision
|
±0.1mm
|
±0.1mm
|
|
Cooling way
|
Circulation water cooling
|
Circulation water cooling
|
|
power supply
|
AC380V/ AC220V 50Hz/60Hz
|
AC380V/ AC220V 50Hz/60Hz
|
|
Overall power consumption
|
7KVA
|
9KVA
|
|
Equipment size
|
2mx2.11mx2.32m
|
3.26mx2.91mx3.01m
|
|
Equipment weight
|
host machine 800kg
conveyor 600kg |
host machine 890KG
conveyor 800KG |
Configuration Detail
Equipment Performance
1, Comparing with traditional post-dynamic focusing marking machine, it's no necessary to replace the different flat-field
lenses to get different marking area. Thinner laser spot as well.
2, No need adjustment or maintenance, working at once after installation viable.
3, Original imported RF laser tube with high laser power, excellent laser spot, stable laser generation and lifetime of more
than 20,000h.
4, High precision and speed performance with cutting & engraving working, 20% higher efficiency than similar models.
5, Professional industrial thermostatic circulation of water cooling system ensures more stable running and lower consumption.
6, Strict multiply protection control system can be sure the stable continuous working of 24h of laser marking system.
7, Application under Windows interface, AutoCAD, CorelDraw, Photoshop compatible, PLT, DXF, BMP supportive etc .
8, Especially applies RBI marking with light guild plate or acrylic, and cutting&engraving withpaper, formboard, leathers and
footwears.
lenses to get different marking area. Thinner laser spot as well.
2, No need adjustment or maintenance, working at once after installation viable.
3, Original imported RF laser tube with high laser power, excellent laser spot, stable laser generation and lifetime of more
than 20,000h.
4, High precision and speed performance with cutting & engraving working, 20% higher efficiency than similar models.
5, Professional industrial thermostatic circulation of water cooling system ensures more stable running and lower consumption.
6, Strict multiply protection control system can be sure the stable continuous working of 24h of laser marking system.
7, Application under Windows interface, AutoCAD, CorelDraw, Photoshop compatible, PLT, DXF, BMP supportive etc .
8, Especially applies RBI marking with light guild plate or acrylic, and cutting&engraving withpaper, formboard, leathers and
footwears.
Samples
Suitable for almost all nonmetal materials, including leather, soft fabrics, flocking fabrics, art wallpaper, denim fabrics,
corduroy, velvet and other fabrics, rubber, wood board, bamboo, organic glass, ceramic tile, plastic, marble, jade, crystal etc.
Wildly used in industries of clothing, textile, plate making for clothing, luggage, arts &crafts, bamboo and wood products,
advertising decoration, home, hotel, advertising, exhibition decoration, automotive decoration and other industries.
corduroy, velvet and other fabrics, rubber, wood board, bamboo, organic glass, ceramic tile, plastic, marble, jade, crystal etc.
Wildly used in industries of clothing, textile, plate making for clothing, luggage, arts &crafts, bamboo and wood products,
advertising decoration, home, hotel, advertising, exhibition decoration, automotive decoration and other industries.
