Quick Details
-
Core Components:
-
shot blasting turbine
-
Weight (KG):
-
6000 KG
-
Power:
-
Customizd
-
Dimension(L*W*H):
-
Customizd
-
Application:
-
metal Surface Treatment
-
feature:
-
Rust / Corrosion Proof
-
service after sales:
-
Local Agent , Video Technical Support, Online Supp
-
spare parts:
-
Chrome&Mn Alloy Standard Part
-
PLC bran:
-
Siemens, Omron or Famous Brand in China
-
surface level after blasting:
-
SA2.5 to SA3.0
-
cleaning type:
-
Shot Blasting /Wheel Blasting by Motor
-
Dust collector:
-
Cartridge/Bag Type Filter Pulse Reverse
-
usage:
-
cleaning castings, forgings, weldments, heat treatment
-
advantage:
-
convenient installing and regulating
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Fengyao
-
Marketing Type:
-
New Product
-
Core Components:
-
shot blasting turbine
-
Weight (KG):
-
6000 KG
-
Power:
-
Customizd
-
Dimension(L*W*H):
-
Customizd
-
Application:
-
metal Surface Treatment
-
feature:
-
Rust / Corrosion Proof
-
service after sales:
-
Local Agent , Video Technical Support, Online Supp
-
spare parts:
-
Chrome&Mn Alloy Standard Part
-
PLC bran:
-
Siemens, Omron or Famous Brand in China
-
surface level after blasting:
-
SA2.5 to SA3.0
-
cleaning type:
-
Shot Blasting /Wheel Blasting by Motor
-
Dust collector:
-
Cartridge/Bag Type Filter Pulse Reverse
-
usage:
-
cleaning castings, forgings, weldments, heat treatment
-
advantage:
-
convenient installing and regulating

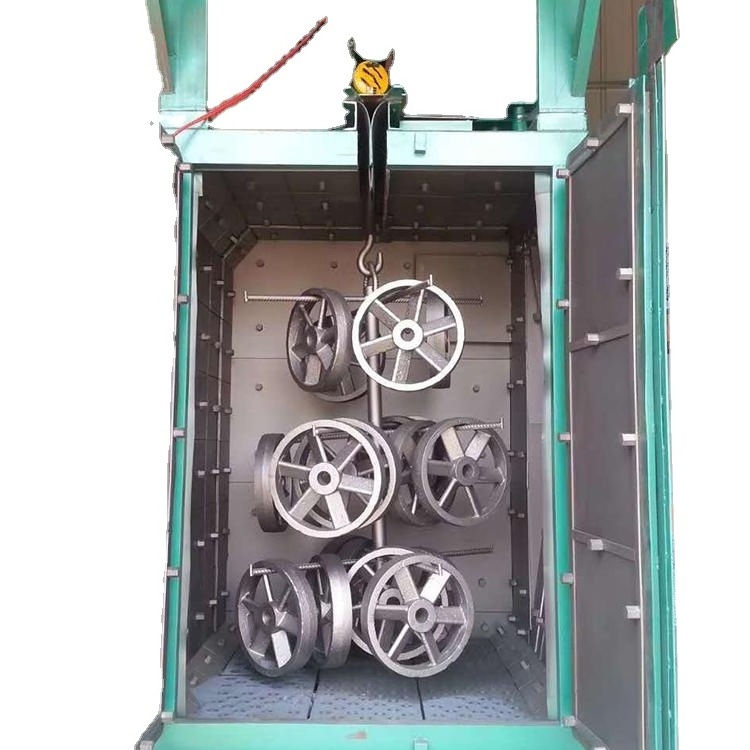

Q37 Double Hook Type Wheel Rims Shot Blasting Machine
Introduction of hook shot blasting machine
Q37 series hook type shot blast cleaning machine is mainly used for surface cleaning and strengthening of steel structural parts ,castings ,aluminum alloy parts and other spare parts .It is widely used in foundry ,forging ,machanical and steel industry In particular ,Q378 cleaner featurs no pit ,double hook without rail exchanging ,compact struture ,and high productivity.
Use of hook shot blasting machine
Q37 series is used for surface cleaning, dust removing, and surface intensification of each kind of middle and small scale casting, forging and job. It is suitable for different production scale, can be stand-alone use and many units can also be used in conjunction with the continuous conveyor components, composing the production of clean-up lines.
Feature of Q37 shot blasting machine
1. no-pit, no change of track, compact structure
2. High impeller blasting volume
3. High cleaning efficiency, large effective space
4. No-pit form, has no special demand on structure of work piece
5. Suitable for machinery manufacture and foundry industry
6. With dust-collection device and separation device, can be operated easily and also with good condition
7. Convenient maintainance
Technical parameters of Q37 hook shot blasting machine
|
Item/type |
Q376F |
Q378 |
Q3710 |
Q3720 |
Q3750 |
|
Size of cleaning chamber(mm) |
600*1100 |
800*1500 |
900*1600 |
1400*2300 |
1800*2500 |
|
Carrying weight of single hook(kg) |
600 |
1000 |
1000 |
2000 |
5000 |
|
Abrasive flow rate(kg/min) |
2*120 |
2*200 |
2*250 |
3*250 |
4*250 |
|
Lifting amount of elevating conveyor(t/h) |
15 |
22 |
30 |
45 |
60 |
|
Separating amount of separator(t/h) |
15 |
22 |
30 |
45 |
60 |
|
Ventilation(m 3 /h) |
5000 |
8000 |
9000 |
15000 |
18000 |
|
Power(excluding dedusting)kw |
19 |
32.5 |
36.55 |
61.27 |
78.4 |
|
Outline dimensions(mm)
|
4429*2850* 3443 |
4325*2660* 5009 |
5047*3850* 5156 |
6110*3599* 7842 |
7062*5460* 8652 |
