- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
COLORDOWELL
-
Model Number:
-
WD-50LA4
-
Max. Binding Width:
-
320mm A4
-
Binding Thickness:
-
50mm.approx.450sheets
-
Binding speed:
-
200 Books/h
-
Control panel:
-
LCD
-
Milling cutter:
-
Solar milling cutter+small milling cutter
-
Duration for glue melt:
-
<25min
-
Glue Roller:
-
Single Roller
-
Voltage:
-
AC220V±10% 50HZ 1.5kw
-
Dimension:
-
1090*480*950mm
-
WEIGHT:
-
155kgs
Quick Details
-
Type:
-
Glue Binding Machine
-
Power:
-
Electricity
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
COLORDOWELL
-
Model Number:
-
WD-50LA4
-
Max. Binding Width:
-
320mm A4
-
Binding Thickness:
-
50mm.approx.450sheets
-
Binding speed:
-
200 Books/h
-
Control panel:
-
LCD
-
Milling cutter:
-
Solar milling cutter+small milling cutter
-
Duration for glue melt:
-
<25min
-
Glue Roller:
-
Single Roller
-
Voltage:
-
AC220V±10% 50HZ 1.5kw
-
Dimension:
-
1090*480*950mm
-
WEIGHT:
-
155kgs
Specification
|
Item
|
Value
|
|
Type
|
Glue Binding Machine
|
|
Power
|
Electricity
|
|
Place of Origin
|
China
|
|
|
Zhejiang
|
|
Brand Name
|
COLORDOWELL
|
|
Model Number
|
WD-50LA4
|
|
Max. Binding Width
|
320mm/ A4
|
|
Binding Thickness
|
50mm.approx.450sheets
|
|
Binding speed
|
200 Books/hour
|
|
Control panel
|
LCD
|
|
Milling cutter
|
Solar milling cutter+small milling cutter
|
|
Duration for glue melt
|
<25min
|
|
Glue Roller
|
Single Roller
|
|
Voltage
|
AC220V±10% 50HZ 1.5kw
|
|
Dimension
|
1090*480*950mm
|
|
WEIGHT
|
155kgs
|
Sun cutter + small milling cutter
Iron back effect is good, dust-free glue
Radius adjustment knob
Adjust the square/rounded corners of the spine to make it look
better
Good adhesive loading effect
Can glue ordinary A4 paper 450 pages into books
Large capacity rubber tank
Grain single rubber wheel glue, glue uniform and firm, do not take off the page
Automatic book clamping platform
Cover center manual alignment, automatic cover clamping, make glue more uniform

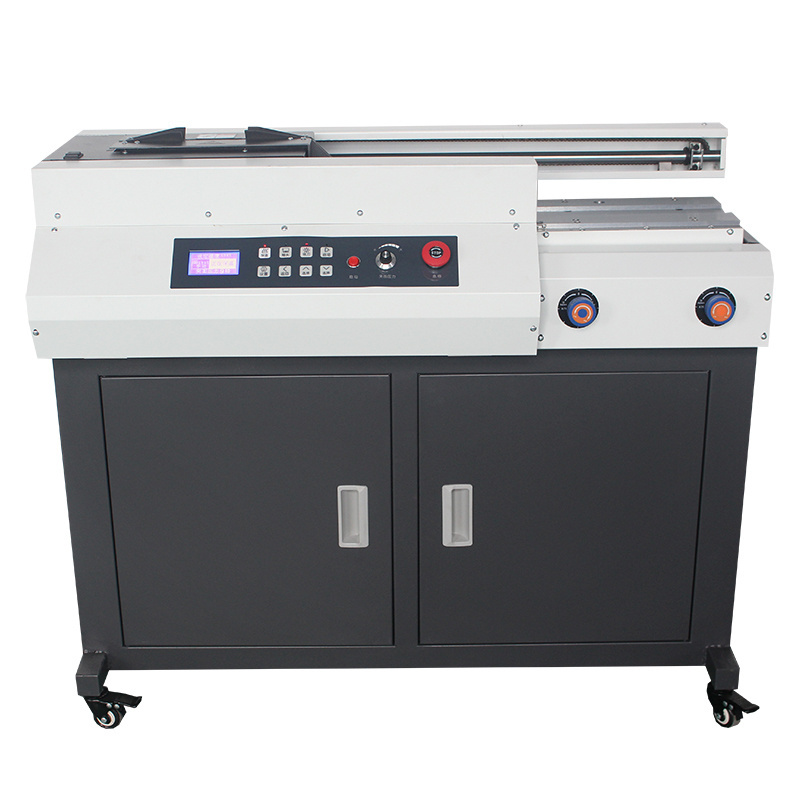

* Product real shot 1
* Product real shot 2
* Product real shot 3
