Quick Details
-
Model Number:
-
AS15F
-
name:
-
relay series
-
color:
-
Black
-
Contact from:
-
1Z 1H 1D
-
contact material:
-
AgCdO AgSnO2
-
terminal type:
-
PCB Mounting
-
certification:
-
ROHS,TUV,TS16949
-
lead time:
-
15days
-
Rated Coil Power:
-
DC 0.9W
-
Product Keywords:
-
pcb relay 12v 30a t90
Quick Details
-
Contact Load:
-
Low Power
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Asiaon
-
Model Number:
-
AS15F
-
name:
-
relay series
-
color:
-
Black
-
Contact from:
-
1Z 1H 1D
-
contact material:
-
AgCdO AgSnO2
-
terminal type:
-
PCB Mounting
-
certification:
-
ROHS,TUV,TS16949
-
lead time:
-
15days
-
Rated Coil Power:
-
DC 0.9W
-
Product Keywords:
-
pcb relay 12v 30a t90

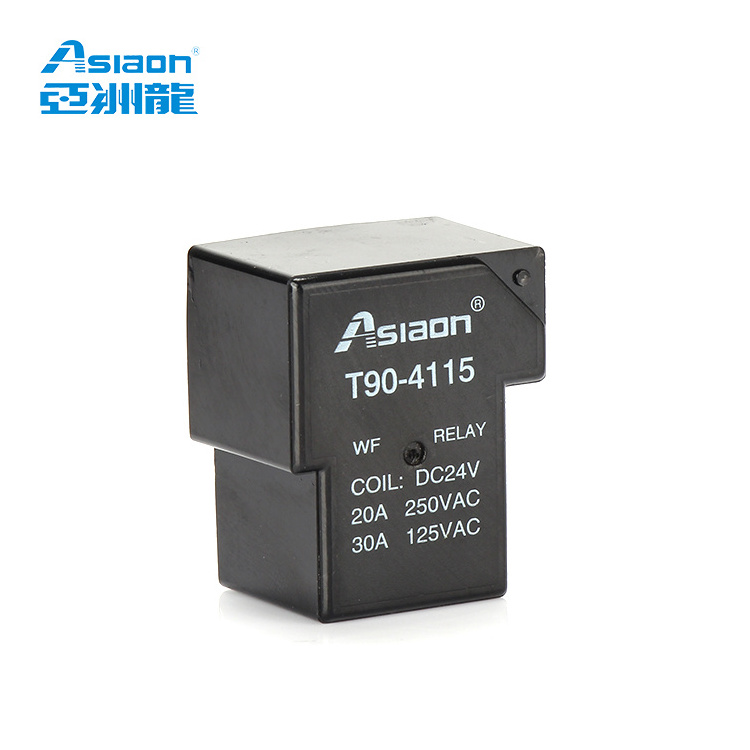

2018 Hot Selling pcb relay 12v 30a t90
| PCB Relay: JQX-15F (T90) | |||
| Coil voltage 5,6,9,12,18,24,48VDC | |||
| Contact Specification | |||
| Contact form | 1H | 1D | 1Z |
| Contact resistance | ≤100mΩ(1A 6VDC) | ||
| Contact material | AgCdO | ||
| Contact capacity | 7200VA/560W\3600VA/280W\4800VA/560W\2400VA/280W | ||
| Technical Specification | |||
| Insulation resistance | ≥100MΩ(500VDC) | ||
| Dielectric strength | BCC ≥2500VAC 1min | ||
| BOC ≥1500VAC 1min | |||
| Operate / Release time | ≤15ms/10ms | ||
| Terminal type | PCB mounting | ||
| Coil Specification | |||
| Rated coil power | DC:0.9W | ||
| Coil Data | |||
| Nominal voltage | Operate voltage | Release voltage | Coil resistance |
| VDC | VDC | VDC | Ω±10% |
| 5 | 3.75 | 0.5 | 30 |
| 6 | 4.5 | 0.6 | 45 |
| 9 | 6.75 | 0.9 | 100 |
| 12 | 9 | 1.2 | 160 |
| 15 | 11.25 | 1.5 | 260 |
| 18 | 13.5 | 1.8 | 385 |
| 24 | 18 | 2.4 | 660 |
| 48 | 36 | 4.8 | 2560 |
| 70 | 52.5 | 7 | 5500 |
| 110 | 82.5 | 11 | 13450 |
Outline dimension,Mounting holes(Bottom view),Wiring diagram (Bottom view)
