Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
ECO
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Processing capacity:
-
5-7m3/h
-
Filter gap:
-
0.25 ~ 1 mm
-
Solid content:
-
<50%
-
Water content:
-
<65%
-
Material:
-
carbon steel, SS201, SS321, SS304, SS316L, etc.
-
Certification:
-
CE
Quick Details
-
Weight (KG):
-
350
-
Type:
-
Screw Extrusion separator
-
Use:
-
dehydration of manure
-
Place of Origin:
-
China
-
Brand Name:
-
ECO
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Processing capacity:
-
5-7m3/h
-
Filter gap:
-
0.25 ~ 1 mm
-
Solid content:
-
<50%
-
Water content:
-
<65%
-
Material:
-
carbon steel, SS201, SS321, SS304, SS316L, etc.
-
Certification:
-
CE

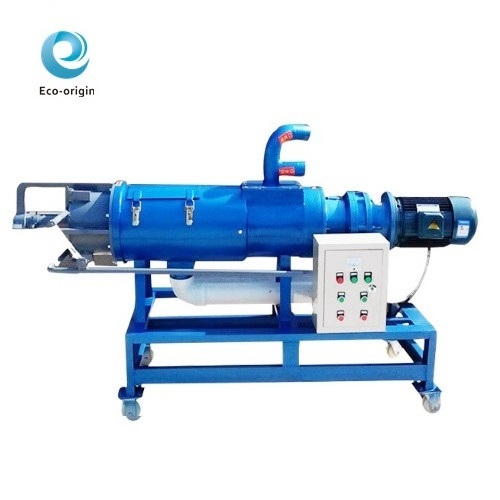

Screw-extrusion solid-liquid separator is a kind of livestock and poultry manure slurry dehydrator. It can separate the original manure water of livestock manure into liquid organic fertilizer and solid organic fertilizer. Liquid organic fertilizer can be directly used for crop utilization and absorption. Solid organic fertilizer can be transported to areas where fertilizers are used, and it can also play a role in improving soil structure. At the same time, it can be made into organic compound fertilizer through fermentation.
The raw sewage was sent to the machine with a slurry pump, and the solid material was squeezed and separated through a screw shaft installed in the screen. The liquid was discharged from the liquid outlet through the screen.
| Model | ECOY180 | ||
| Total power(KW) | 4 | ||
| Voltage (V, HZ) | 380/50 | ||
| Length(mm) | 1900 | ||
| Width(mm) | 600 | ||
| Height(mm) | 900 | ||
| Weight(kg) | 300 | ||
| Input size(mm) | 80 | ||
| Waste water outlet diameter after separation (mm) | 100 | ||
| Overflow Outlet diameter (mm) | 76 | ||
| Diameter of screen(mm) | 180 | ||
| Screen precision | 0.25mm,0.5mm,0.75mm,1.0mm | ||
| Processing capacity (liquid (solids content <50%) | 5-7m3/h | ||
|
Remarks:
There is a difference of 2-5 cubic meters in the processing capacity of the solid material according to the viscosity and dryness of the material. |
|||
