Quick Details
-
Throat Depth (mm):
-
250 mm
-
Width of Working Table (mm):
-
90 mm
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Tenroy
-
Weight (KG):
-
7500
-
Motor Power (kw):
-
5.5 kw
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Raw Material:
-
Sheet / Plate Rolling
-
Name:
-
hydraulic box and pan brake
-
Type:
-
CNC Hydraulic
-
Usage:
-
Sheet Folding
-
Available bend profiles:
-
Special Profile
-
Keyword:
-
wc67k-80/3200
-
Color:
-
Customized
-
Function:
-
Steel Metal Bending
Quick Details
-
Machine Type:
-
Synchronized
-
Length of Working Table (mm):
-
3200 mm
-
Slider Stroke (mm):
-
120 mm
-
Throat Depth (mm):
-
250 mm
-
Width of Working Table (mm):
-
90 mm
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Tenroy
-
Weight (KG):
-
7500
-
Motor Power (kw):
-
5.5 kw
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Raw Material:
-
Sheet / Plate Rolling
-
Name:
-
hydraulic box and pan brake
-
Type:
-
CNC Hydraulic
-
Usage:
-
Sheet Folding
-
Available bend profiles:
-
Special Profile
-
Keyword:
-
wc67k-80/3200
-
Color:
-
Customized
-
Function:
-
Steel Metal Bending
Our Advantages:
2. Closed loop control mode formed by Gemany electro-hydraulic servo valve and import grating ruler. The slider position have high precision feedback, stable operation, good synchronization performance, high precision of bending and slider repeat positioning.
3. Back gauge can use multi back gauge axis with more function according to customer requirements..
4. Hydraulic system uses integrated control system which can reduce pipeline installation, overcome the leakage and ensure the stability of machine operation. And it has a simple and beautiful appearance also.
5. The automatic compensation mechanism of Hydraulic defection has eliminated the effect of the slider deformation on the workpiece quality. The numeric control system adjusts the compensation amount automatically which is convenient and accurate.
6. The numeric control system adopts the special CNC system of Electrohydraulic Servo Numeric-control bending machine from Holland DELEM, Italy ESA or Switzerland CYBELEC.
Main Features

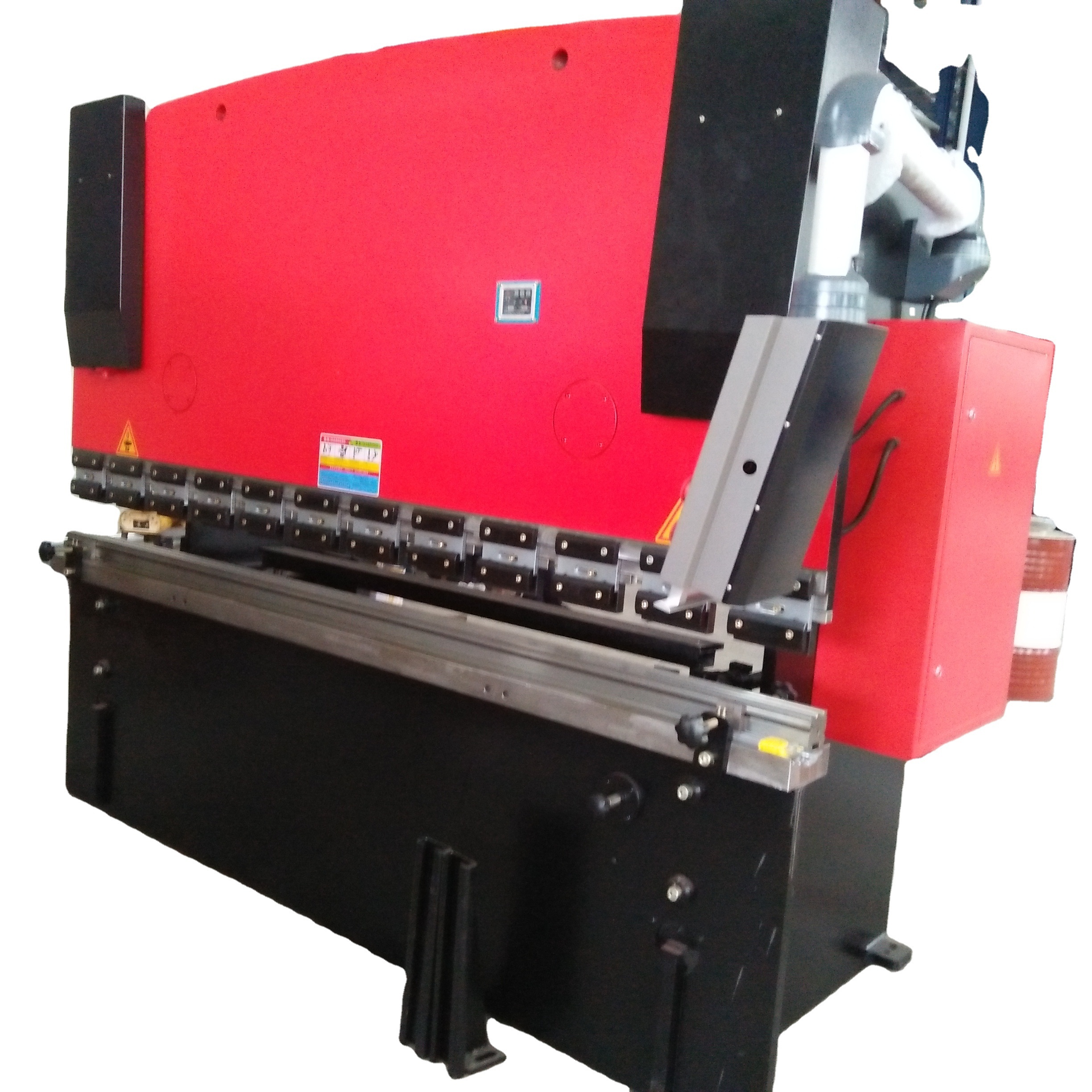

hydraulic box and pan brake
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
DA-52 (Holland DELEM )
DA-56(Holland DELEM )
DA-65W(Holland DELEM )
DA-69W(Holland EDLEM )
KV S525
KV S540(Italy ESA )
Due to continuous improvement, discrepancy exists between above data and the actual machine data, the technical parameters on the agreements shall prevail.
Technical documents included:
1.Manual instruction (including hydraulic scheme, schematic circuit diagram and machine base map.
2.Verification certificate.
3.Packing list (including the technical documents).
4.Machine color is standard and is customerized according to customer's requirements.
Technical training:
Tenroy company is responsible for the user operator training and also we will provide a training software to you.
Quality assurance:
Our company is responsible for the maintenance during the use period (damage that caused by improper operation, the user should bear the repair charge). Warranty is 12 months after the end debugging.
