Quick Details
-
Brand Name:
-
CLRD
-
Model Number:
-
MPJ20
-
Work Time (h):
-
24AH
-
Max PV Power:
-
520W
-
Max PV Voltage:
-
100V
-
Warranty:
-
1 Year
-
Voltage:
-
12V/24V Auto Detection
-
Current:
-
10A/20A
-
product size:
-
175*120*47mm
-
5V USB:
-
2pcs*2A
-
package:
-
24pcs/carton
-
carton weight:
-
16.1KG
-
carton size:
-
53*39.5*17.5cm
-
MOQ:
-
12pcs
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CLRD
-
Model Number:
-
MPJ20
-
Work Time (h):
-
24AH
-
Max PV Power:
-
520W
-
Max PV Voltage:
-
100V
-
Warranty:
-
1 Year
-
Voltage:
-
12V/24V Auto Detection
-
Current:
-
10A/20A
-
product size:
-
175*120*47mm
-
5V USB:
-
2pcs*2A
-
package:
-
24pcs/carton
-
carton weight:
-
16.1KG
-
carton size:
-
53*39.5*17.5cm
-
MOQ:
-
12pcs

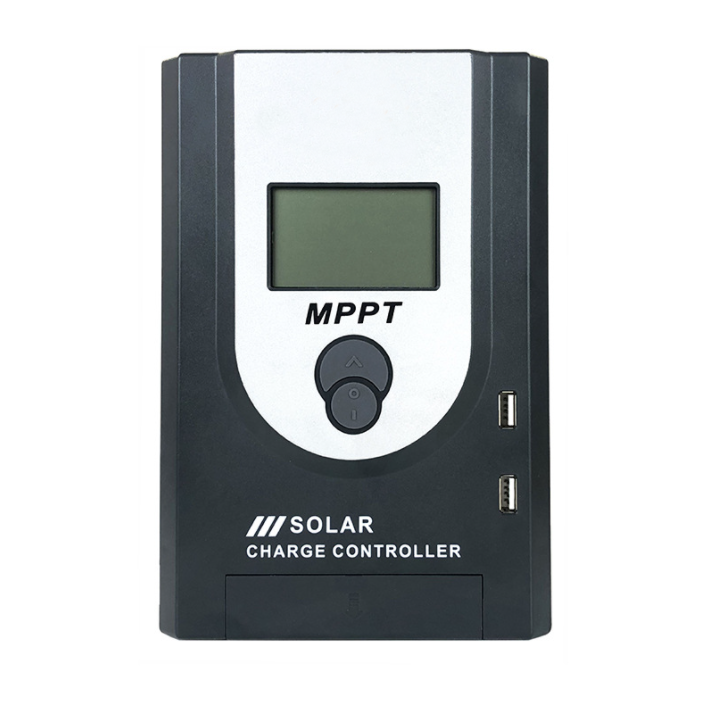

MPPT solar charge controller 12V 24V 10A 20A 30A 40A 50A 60A for RV Lithium Battery Lead Acid Battery Mppt Solar
Charger
MPJ20 & MPJ40 has dual USB 5V 2A
MPJ60 no USB output
If you need RS485 communication port please tell us
|
Model
|
MPJ20
|
MPJ40
|
MPJ60
|
|||
|
Input
|
|
|
|
|||
|
Maximum PV open circuit voltage
|
100V(at the lowest temperature)
92V(at a standard temperature of 25°)
|
|
|
|||
|
Minimum PV voltage
|
20V/40V/60V/80V
|
|
|
|||
|
Rated Charge Current
|
20A
|
40A
|
60A
|
|||
|
PV maximum input power:12V
|
260W
|
520W
|
780W
|
|||
|
PV maximum input power: 24V
|
520W
|
1040W
|
1560W
|
|||
|
Output
|
|
|
|
|||
|
System voltage
|
12V/24V Auto
|
|
|
|||
|
Rated Discharge Current
|
10A
|
20A
|
30A
|
|||
|
Own consumption
|
≤50mA
|
|
|
|||
|
MPPT highest accuracy MPPT
|
99%
|
|
|
|||
|
Maximum charging efficiency
|
97%
|
|
|
|||
|
Charging control mode
|
Multi-stage(MPPT,Absorption, Float,Equalization,CV)
|
|
|
|||
|
Float charge
|
13.8V/27.6V
|
|
|
|||
|
Absorption charge
|
14.4V/28.8V
|
|
|
|||
|
Equalization charge
|
14.6V/29.2V
|
|
|
|||
|
Load disconnection(LVD)
|
10.8V/21.6V
|
|
|
|||
|
Load reconnection(LVR)
|
12.6V/25.2V
|
|
|
|||
|
Load control mode
|
:Normal, light control,light and timing control,timing control,reverselight control
|
|
|
|||
|
Light control point voltage
|
5V/10V/15V/20V
|
|
|
|||
|
Battery Type
|
GEL,SLD,FLD and USR (default),Lithium batteries customization 3 series 3.7V, 4 series 3.7V, 4 series 3.2V, 5 series 3.2V
|
|
|
|||
|
Other
|
|
|
|
|||
|
Human interface
|
LCD with back light,2 buttons
|
|
|
|||
|
Cooling mode
|
AL alloy heat sink
|
|
|
|||
|
Wiring
|
High current copper terminal≤16 mm²(3AWG)
|
|
|
|||
|
Temperature probe
|
built-in
|
|
|
|||
|
Communication mode
|
RS485,RJ45 port optional
|
|
|
|||
|
Working temperature range
|
-20~+55℃
|
|
|
|||
|
Storage temperature range
|
-30~+80℃
|
|
|
|||
|
Humidity
|
10%~90% No condensation/
|
|
|
|||
|
Note: Please operate at the ambient temperature allowed by the controller.If the ambient temperature exceeds the allowable range of the controller
|
|
|
|
|||
