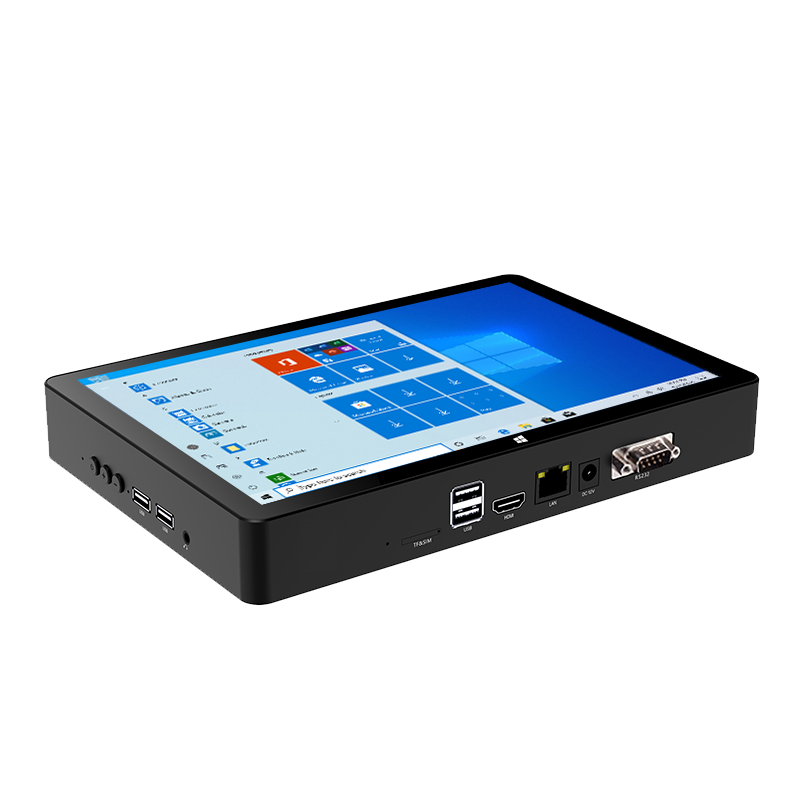

2024 ASK factory H10F J4125 10.1inch All-in-One Mini PC 1920*1200 IPS 8GB/16GB 128GB EMMC Computer Tablet Touch Screen Mini PC

2024 ASK factory H10F J4125 10.1inch All-in-One Mini PC 1920*1200 IPS 8GB/16GB 128GB EMMC Computer Tablet Touch Screen Mini PC

FOB Reference Price: Get Latest Price

≥2 Pieces

US $209.5

≥10 Pieces

US $205.5

≥100000 Pieces

US $188.8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Operating System:: Windows 10

Type:: Tablet PC

Processor Main Frequency:: 1.6GHz

Weight:: 2kg

Place of Origin:: China, Guangdong

Brand Name:: Ascosk

Model Number:: PIPO H10F

CPU:: Intel Celeron J4125 quad-core

OS:: Windows 10/Windows 11 optional

Microphone recording:: Built-in mic, sensitivity -38db

SSD:: *1, supports the built-in SSD M.2 2280

RJ45:: *1,support 1000M,POE charging(optional)

USB:: USB3.0 *4

HD output interface:: *1,HD TYPE-A

RS232:: *1,DB9

battery:: 7.4V/5000mAh, 5-6/H

Quick Details

Screen Size:: 10.1"

Memory Capacity:: 8GB

Display resolution:: 1920*1200IPS

Operating System:: Windows 10

Type:: Tablet PC

Processor Main Frequency:: 1.6GHz

Weight:: 2kg

Place of Origin:: China, Guangdong

Brand Name:: Ascosk

Model Number:: PIPO H10F

CPU:: Intel Celeron J4125 quad-core

OS:: Windows 10/Windows 11 optional

Microphone recording:: Built-in mic, sensitivity -38db

SSD:: *1, supports the built-in SSD M.2 2280

RJ45:: *1,support 1000M,POE charging(optional)

USB:: USB3.0 *4

HD output interface:: *1,HD TYPE-A

RS232:: *1,DB9

battery:: 7.4V/5000mAh, 5-6/H

PIPO factory X8 X9 X10 mini pc android/ win os optional tablet pc set top box

Why Choose Us

Customizable
We can support OEM/ODM service, the process of customization is following:

1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.

Assisting customers in their journey towards customized solutions:
☑ Logo(Packing , Computer Logo)

☑ Computer Colors
☑ Security

☑ Interfaces Customization
☑ Virtualisation

☑ Data Protection

☑ And so on...

Products Description

Funtion			Optional 4G module, custom made 2D scan, reserved SSD port for adding SSD directly, 4Ω2.5W dual speakers loud
operating system			Windows 10/Windows 11 optional, multi-language
Screen	display	10.1-inch, 10-point touch
hardware	CPU	Intel® Celeron J4125 quad-core
		frequency	2.0 GHz~2.70GHz
		resolution	1920*1200 IPS
		GPU	Intel Graphics UHD 600
		RAM	8GB/16GB
		ROM	128GB EMMC
		Audio output interface	Dual speaker 4 Ω 2.5W
		Microphone recording	Built-in mic, sensitivity -38db
		gravity sensor	Three axis rotation
interface	SSD	*1, supports the built-in SSD M.2 2280
		USB	USB3.0 *4
		RJ45	*1，support 1000M，POE charging（optional,IEEE802.3at POE plus,class 4，25.5W）
		TF&SIM 2in1 card slot	*1
		Audio output and microphone input	*1
		HD output interface	*1，HDMI TYPE-A
		RS232	*1，DB9
2D			custom made 2D scan
Network	4G custom made, (optional)	Built-in support: 3G/4G module Nano SIM x1 GSM：850、900、1800 LTE(FDD)：B1、B3、B5、B8、B20 LTE(TDD)：B38、B39、B40、B41 TD-SCDMA：B34、B39 WCDMA：B1、B5、B8 CDMA2000/EVDO：BC0
Network		WIFI+BT 2in1 module	2.4G+5G dual-band wifi, Intel AC-3165 WIFI 802.11ac /b/g/n+BT 4.0
battery			7.4V/5000mAh， 5-6/H
Button batteries			RTC：CR2032
charger			12V 2.4A， Ø5.5mm*2.5mm
Other	Material	Metal + Plastic
		Wall hanging installation	Wall hanging hole position 100x100mm，M3*4mm
		net weight	0.99kg
		Packaging/Product Size （Length X width X height）	29021295mm/24316632mm
