Product Name:
-

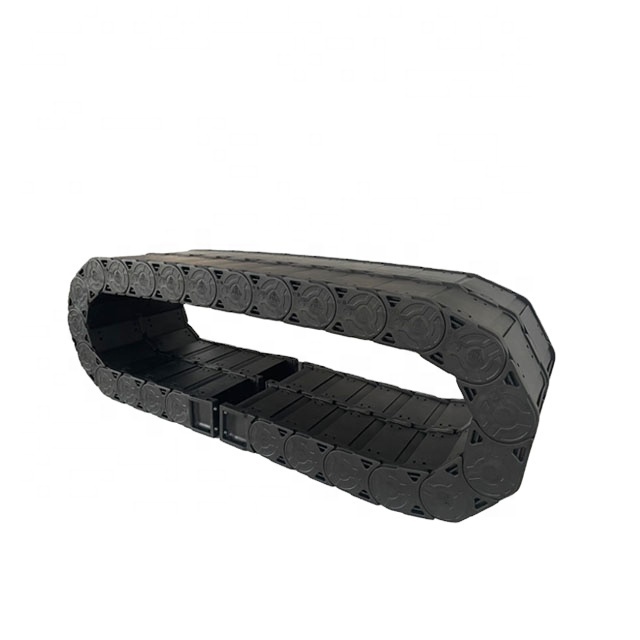

Flexible Plastic cable drag chian
-
Function:
-
Cable Drag Chain Protect Wires
-
Application:
-
CNC Cutting Machine
-
Structure:
-
Bridge /Totally enclosed
-
Color:
-
Black
-
Size:
-
Customized Sizes
-
Temperature Range:
-
40 -130
-
Place of origin:
-
China,jiangsu
-
Purpose:
-
Cable Protection
Quick Details
-
Brand Name:
-
Kwlid
-
Weight (KG):
-
2
-
Brand:
-
Kwlid
-
Model:
-
TLW TLM TDG TLJ TLZ TEZ
-
Core Components:
-
Plastic
-
Material:
-
Plastic
-
Product Name:
-
Flexible Plastic cable drag chian
-
Function:
-
Cable Drag Chain Protect Wires
-
Application:
-
CNC Cutting Machine
-
Structure:
-
Bridge /Totally enclosed
-
Color:
-
Black
-
Size:
-
Customized Sizes
-
Temperature Range:
-
40 -130
-
Place of origin:
-
China,jiangsu
-
Purpose:
-
Cable Protection
Product Description
Plastic drag cable chain can be used for such locations where repciprocating motions are required so that internally installed cables, oil pipes, gas tubes and water tubes can be draged and protected. The drag chains have already extensively used in digital-controlled machine tools, electronic equipement,machinery for stone industrymachinery for glass industry, machinery for doors and windows, moulding injectors, manipulators, lifting and transport equipment and automatic warehouses, etc.Each joint of the chain can be opened up so as to facilitate repairs and maintenance.
Plastic drag cable chain
operate in a variety of ways
horizontal 90°turn
vertical type vertical suspending way
assembly type(horizomtal/vertical)
Features at glance
|
Material
|
reinforced nylonPA66
|
|
core function
|
cable protection and management
|
|
structure characteristic
|
Resistance to bending, torsion and bending
|
|
other characteristic
|
guiding and flexible
|
|
Color
|
black structure ,different color dots required
|
|
Shape
|
rectangular
|
|
Thickness
|
customized
|
|
Resistances
|
oil and salt resistant ,acid and alkali resistant
|
|
operating speed and acceleration
|
5m/sec
|
best-selling series
|
type
|
inside heighte*
inside width(mm)
|
outside height*
outside width(mm)
|
bending radius
(mm)
|
pitch
(mm)
|
|
TLW8.8
|
8*8
|
11.2*13.8
|
15.18
|
14.5
|
|
TWL10.10
|
10*10
|
14*17
|
18.28.38
|
16.8
|
|
TWL10.15
|
10*15
|
14*22
|
18.28.38
|
16.8
|
|
TWL10.20
|
10*20
|
14*27
|
18.28.38
|
16.8
|
|
TWL10.25
|
10*25
|
14*32
|
18.28.38
|
16.8
|
|
TWL15.15
|
15*15
|
20*26.2
|
28.38.48
|
25
|
|
TWL15.20
|
15.20
|
20*31.2
|
28.38.48
|
25
|
|
TWL15.30
|
15.30
|
20*41.2
|
28.38.48
|
25
|
|
TWL15.40
|
15.40
|
20*51.2
|
28.38.48
|
25
|
|
TWL15.50
|
15.50
|
20*61.2
|
28.38.48
|
25
|
|
TWL18.18
|
18*18
|
23*29
|
28.38*48*55*75
|
30.5
|
|
TWL18.25
|
18.25
|
23*36
|
28.38*48*55*75
|
30.5
|
|
TWL18.35
|
18.35
|
23*46
|
28.38*48*55*75
|
30.5
|
|
TWL18.40
|
18.40
|
23*51
|
28.38*48*55*75
|
30.5
|
|
TWL18.50
|
18.50
|
23*61
|
28.38*48*55*75
|
30.5
|
Selections
Inner
height
: Flexible cable carrier drag chain take the most thick piece of the internally installed cable, oil pipe, gaspipe or water pipe as the reference height plus 10% of the space height at least as the inner height Hi.If overlapping, take the overlapped height as the actual height.
for example ①&③ in picture
Inner width : Flexible cable carrier drag chain take the sum of the outside diameter of the thicker cables,oil pipes, gas pipes or water pipes as the reference of the inner width and leave at least 10% of the space as a margin.s ame principle with internal height
Radius of a bend (R) : Flexible cable carrier drag chain take the biggest radius of a bend of a cable, oil pipe gas pipe or water pipe as a reference value and leave 10% of the space as a margin.
Inner width : Flexible cable carrier drag chain take the sum of the outside diameter of the thicker cables,oil pipes, gas pipes or water pipes as the reference of the inner width and leave at least 10% of the space as a margin.s ame principle with internal height
Radius of a bend (R) : Flexible cable carrier drag chain take the biggest radius of a bend of a cable, oil pipe gas pipe or water pipe as a reference value and leave 10% of the space as a margin.
installation for cable drag chains
Put a screw driver vertically into the opening hole at both ends of the cover and then open the cover. Put the drag chain for cables and oip pipes according to the instructions provided. Put the cover back.
