Quick Details
-
Weight:
-
1587 KG
-
Product name:
-
Mini Farm Tractor
Quick Details
-
Brand Name:
-
jinma
-
Place of Origin:
-
jiangsu,china
-
Engine Brand:
-
Top brand
-
Weight:
-
1587 KG
-
Product name:
-
Mini Farm Tractor
Product Overview
China brand tractor agriculture machinery
JINMA 454E
for sale
Jinma 454E tractor is new type four wheel tractor design for The European Union market special require. It is energy-saving, efficient, multi-purpose, beautiful for the specialty, can make you obtain satisfactory economic benefit. It has the advantages of suitable power, large traction, compact structure, high transmission efficiency, easy to operate, easy to maintain, convenient to match, economical to use and good comprehensive utilization performance.
1.The engine is Direct drive
2.Single/double clutch four wheel drive
3.8 gear transmission
4.Perfect in performance of Hydraulic suspension system
5.Low pressure wide drive tires with good adhesion
6.There are both Mechanical or hydraulic steering system

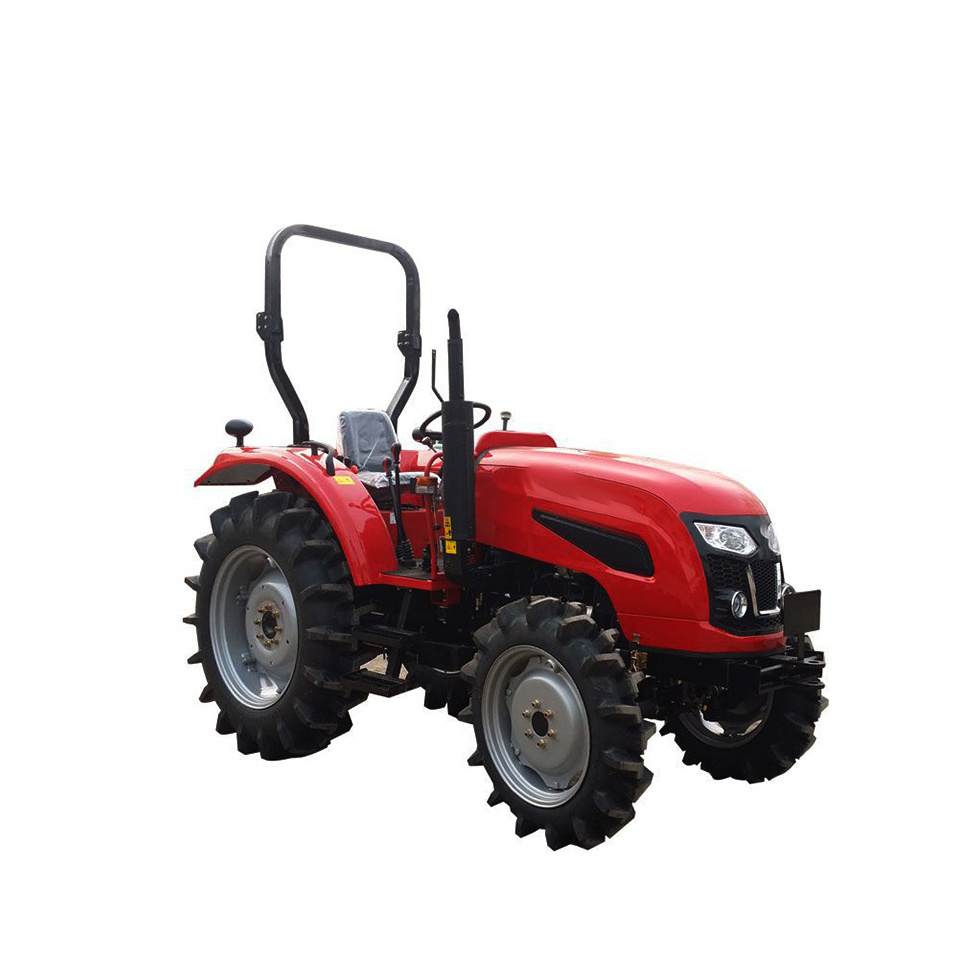

PRODUCT PICTURES
PRODUCT SPECIFICATIONS
|
Model
|
|
454E
|
254E
|
|
|
Drive Type
|
|
4WD
|
4WD
|
|
|
Overall Dimensions L×W×H(mm):
|
|
3375×1585×2510
|
3360×1500×2450
|
|
|
Wheel Track (mm)
|
Front
|
1050
|
1050
|
|
|
|
Rear
|
1240
|
1200
|
|
|
Wheel Base(mm)
|
|
1835
|
1755
|
|
|
Ground Clearance (mm)
|
|
320
|
320
|
|
|
Rated Traction Force(N)
|
|
7500
|
1527
|
|
|
Construction Mass(kg)
|
|
1587
|
3
|
|
|
Min.Turning Radius(m)
|
|
3.5
|
3LS25B
|
|
|
Theoretical Speed (km/h)
|
Forward
|
1.86/2.84/4.45/6.14/8.61/13.12/20.58/28.37
|
9 inch dual clutch
|
|
|
|
Reverse
|
2.45/11.84
|
(4+1)x2
|
|
|
Theoretical Speed
(With creeper) km/h) |
Forward
|
0.35/0.53/0.83/1.14/1.61/2.45/3.84/5.29
|
6.00-16
|
|
|
|
Reverse
|
0.46/2.21
|
9.5-24
|
|
|
Theoretical Speed
(With Shuttle) km/h) |
Forward
|
1.86/2.84/4.45/6.14/8.61/13.12/20.58/28.37
|
Hydraulic steering
|
|
|
|
Reverse
|
1.79/2.73/4.29/5.91/8.29/12.64/19.83/27.33
|
Disc brake
|
|
|
Model
|
|
4L45B
|
4200
|
|
|
Type
|
|
In-line ,water cooled,4 stroke cycle
|
540/1000
|
|
|
Rated Power(kw/hp)
|
|
33.1
|
Turf tyre 26×7.5-12/11.2-20
|
|
|
Rated Speed (rpm)
|
|
2400
|
|
|
|
Bore×Stroke (mm)
|
|
95*100
|
|
|
|
Total Displacement(L)
|
|
2.83
|
|
|
|
Clutch
|
|
10 inch dual clutch
|
|
|
|
Gear Box
|
|
(4+1)*2
|
|
|
|
Main Drive
|
|
Two bevel gears
|
|
|
|
Differential
|
|
Two planetary gear
|
|
|
|
Differential Lock
|
|
Jaw lock
|
|
|
|
Final Transmission
|
|
Single spur gear
|
|
|
|
Tyre
|
Front
|
6.50-16
|
|
|
|
|
Rear
|
11.2-24
|
|
|
|
Steering Gear
|
|
Hydraulic steering
|
|
|
|
Brake
|
|
Disc brake
|
|
|
|
Hydraulic System
|
Lifting Capacity at 610mm Behind Lift Point (N)
|
7.5
|
|
|
|
|
3-Point Suspension
|
Category :I
|
|
|
|
P.T.O Shaft
|
Rotating
Speed (rpm) |
540/1000
|
|
|
|
|
Spline Size
|
34.79
|
|
|
|
|
|
Turf tyre
|
|
|
