- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ZG Tech
-
Use:
-
FTTX
-
Product name:
-
MVOA
-
Operating Wavelength:
-
1310nm/1550nm
-
Attenuation range (dB):
-
0.8 ~ 30
-
Connector Type:
-
FC UPC
-
Fiber Type:
-
G.652D
-
Working Temperature:
-
-25°C~+75°C
-
Operating temperature:
-
-40°C~+80°C
-
Applcation:
-
Telecommunication, Networking,
-
Certification:
-
ISO 9001:2015
Quick Details
-
Type:
-
FTTx Solutions
-
Model Number:
-
Variable optical Attenuator
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZG Tech
-
Use:
-
FTTX
-
Product name:
-
MVOA
-
Operating Wavelength:
-
1310nm/1550nm
-
Attenuation range (dB):
-
0.8 ~ 30
-
Connector Type:
-
FC UPC
-
Fiber Type:
-
G.652D
-
Working Temperature:
-
-25°C~+75°C
-
Operating temperature:
-
-40°C~+80°C
-
Applcation:
-
Telecommunication, Networking,
-
Certification:
-
ISO 9001:2015

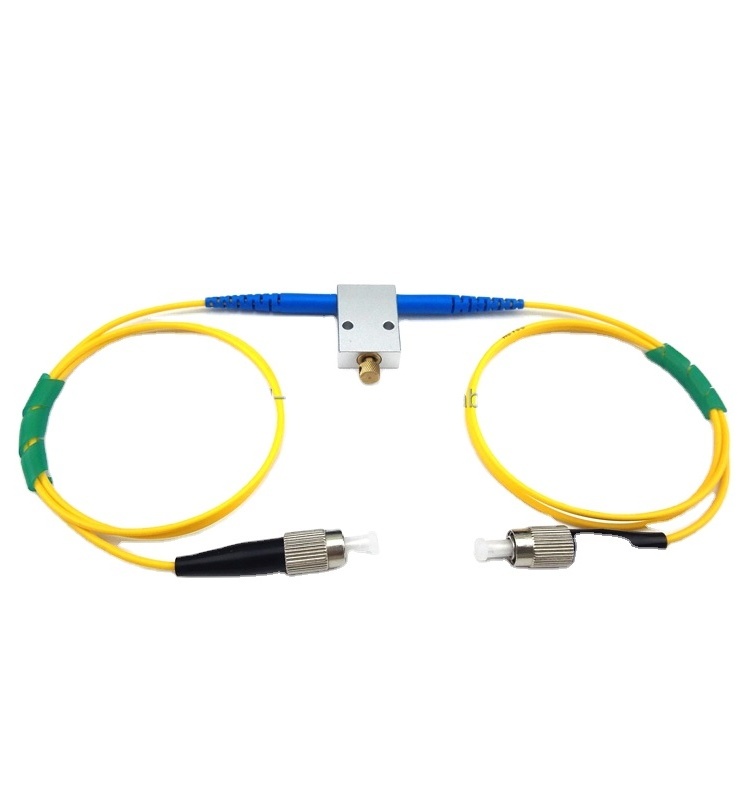

1310nm/1550nm Single Mode 0.8~60dB 2.0mm MVOA Mechanical Variable Optical Attenuator with FC UPC Connectors
In-line Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal. It is often used to limit the optical power received by the photo detector to within the limits of the optical receiver.
Tina Jiang
Skype: zgsales5
zgsales5 @ optical-solution.com
| Features: | Applications: |
|
Single mode and Multimode
Zirconia sleeves or Phosphor bronze sleeves NTT standard compatible Increases panel density and quick plug in installation |
Telecommunication
CATV LAN & WAN Network Broadband FTTP. |
Performance Specification:
| Operating wavelength (nm) | SM:1310/1550nm MM: 850 /1300nm |
| Attenuation range (dB) | 0.8~60 |
| Original loss (dB) | 0.8 |
| Adjustment Precision (dB) | 0.1 |
| PDL (dB) | 0.2 |
| Fiber Type | G.652D |
| Maximum Optical Power (mw) | 500 |
| Operating Temperature (℃) | -25°C~+75°C |
| Storage Temperature (℃) | -40~85 |
The Pictures of ZG Factory
ISO9001:2015
Our Service:
Pre-sale service:
1.We have full stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
After you choose:
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment
3. Email you the tracking no., and help to chase the parcels until it arrive you.
After-sale service:
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Skype.
What you need is what we do care, ZG Tech is your reliable business friend!
