Quick Details
-
Weight:
-
500 KG
-
Machinery Function:
-
Cooking Mixing
-
Output product name:
-
Jam
-
Type:
-
industrial electric jacketed kettle for jam-making sauce making
-
After-sales Service Provided:
-
Overseas third-party support available
-
Material:
-
SS304, SS316L
-
Capacity:
-
50-2000L
-
Certification:
-
CE, ISO
-
Method:
-
Tilting, mixing, fixed
-
Heating method:
-
Steam, electric
Quick Details
-
Brand Name:
-
BLS
-
Place of Origin:
-
Zhejiang, China
-
Voltage:
-
110V-600V
-
Weight:
-
500 KG
-
Machinery Function:
-
Cooking Mixing
-
Output product name:
-
Jam
-
Type:
-
industrial electric jacketed kettle for jam-making sauce making
-
After-sales Service Provided:
-
Overseas third-party support available
-
Material:
-
SS304, SS316L
-
Capacity:
-
50-2000L
-
Certification:
-
CE, ISO
-
Method:
-
Tilting, mixing, fixed
-
Heating method:
-
Steam, electric
Product Description
Hot-selling jacketed cooking pot has the advantages of large heating area, high thermal efficiency, fast material
heating, uniform heating and easy control of heating temperature. Widely used in food processing and brewing, such as candy,cakes, beverages, juice, jam, candied fruit, dairy and canned food, wine making,daily chemical industrie
heating, uniform heating and easy control of heating temperature. Widely used in food processing and brewing, such as candy,cakes, beverages, juice, jam, candied fruit, dairy and canned food, wine making,daily chemical industrie
The kettle can be heated by electric or gas or steam!just tell us your requirement,we can do for you!
Configuration and features:

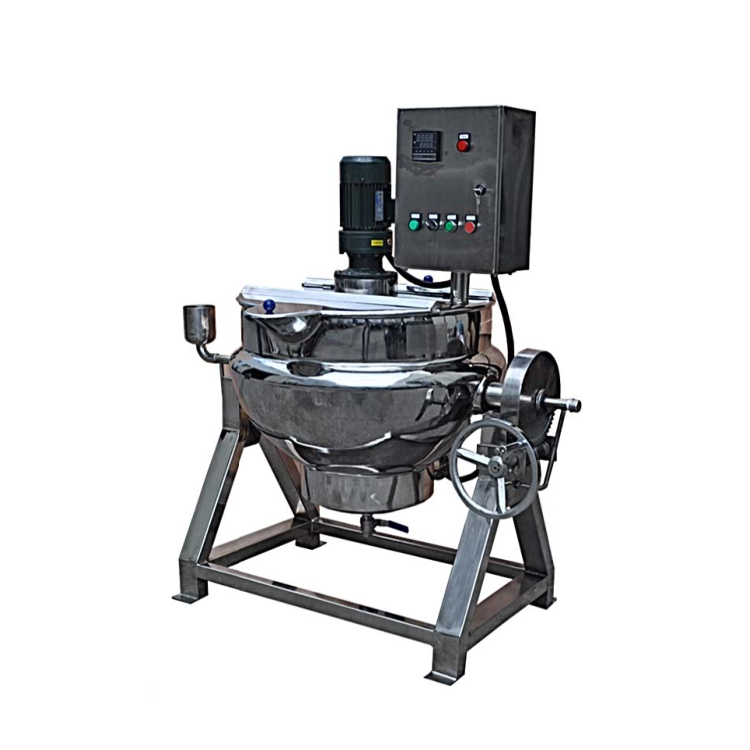

*Cooking mixer machine food is composed of kettle, bracket, worm wheel and worm etc.
*The kettle can revolve with 180°.
*The equipment is used for open concentration, mainly for decocting and concentration of liquids in industries of food industry, chemical industry and light industry etc.
*The equipment is used for open concentration, mainly for decocting and concentration of liquids in industries of food industry, chemical industry and light industry etc.
*Contact area of the equipment with materials is made of stainless steel SUS304,which has perfect corrosion—proof performance, and
is highly endurable according to GMP requirements.
*Blender also can be added according customer requirements.
is highly endurable according to GMP requirements.
*Blender also can be added according customer requirements.
|
Description:
|
Designed according to GMP standard, widely used for cooking feeding material in the food-processing, cosmetics industries
|
|
Construction:
|
Kettle, bracket, worm wheel and worm etc.
|
|
Heating method:
|
By electricity (oils or water), steam, LPG gas
|
|
Material:
|
SS304/SS316L
|
|
Capacity:
|
50L-1000L
|
|
Agitator Type:
|
With PTFE scraper(20-25rpm), optional frame mixer(36rpm) and homogenizer(3000rpm)
|
|
Speed:
|
Constant speed in standard, stepless speed control and frequency control of motor speed avaible
|
|
Motor:
|
Standard Taiwan GPG motor, optional horizontal type
|
|
Jacket:
|
Two layers no isolation in standard
|
|
Surface treatment:
|
Inner polished and outside polished
|
|
Application scope:
|
Dairy, food, beverage,cosmetic, etc
|
|
Standard configuration:
|
SUS304 electric controller, Taiwan GPG motor and Schneider component,full stainless steel bracket(standard 202, 304 optional)
|
|
Optional configuration:
|
VFD, wheels, pressure, open cover, homogenizer etc.
|
scraper mixer
inside the kettle equip scraper mixer to blend your products,it also can avoid the product stick into the kettle
stainless steel control cabinet to operate the kettle conveniently,it has on/ff switch,heating on/off,emergency stop,electric power supply light,speed converter display etc.
electric heating tube to heat your products
wheels can be installed or not according to customer's requirement ,wheels can move the whole kettle easily.
Oil level observation hole:
you can observe the oil level here,once the conduction oil reach this location,you can stop to add the oil into the jacket
oil cup which is used to add the conduction oil into the jacket
worm wheels to incline the kettle to discharge the finished products out
Technical Paramenters
|
model
|
heating area (m2)
|
amount of heat conduction oil (kg)
|
power and root number (KW*Z)
|
boiling time for reference (min)
|
|
JCG50
|
0.45
|
20
|
3*3
|
10-15
|
|
JCG100
|
0.58
|
30
|
4*3
|
10-15
|
|
JCG150
|
0.88
|
45
|
4*3
|
20-30
|
|
JCG200
|
1.13
|
55
|
5*3
|
20-30
|
|
JCG300
|
1.43
|
65
|
6*3
|
20-30
|
|
JCG400
|
1.75
|
75
|
8*3
|
20-30
|
|
JCG500
|
2.00
|
120
|
8*3
|
20-35
|
|
JCG600
|
2.3
|
160
|
9*3
|
20-35
|
|
JCG1000
|
3
|
230
|
12*3
|
20-35
|
related product
We are specialized in producing different kinds of jacketed kettle,just tell us your needs,we can customize the kettle for you
LPG Gas heating
steam jacket heating
vertical type jacketed kettle
we can also do the
Planetary Jacketed Cooking Kettle,if you are interested in it,pls click the picture to know more.
