Quick Details
-
Brand Name:
-
Daocheng
-
Model Number:
-
all type
-
Product name:
-
wireless remote split type CIU smart plastic STS prepaid water meter
-
Color:
-
white prepaid water meters
-
Keyword:
-
STS Prepaid cold Water Meter
-
Material:
-
plastic
-
Size:
-
DN15mm 20mm 25mm
-
Application:
-
the water meter for Pipeline water
-
Battery life:
-
6Years to 10 years
-
Display:
-
LCD Digital Display
Quick Details
-
Warranty:
-
1 year, 2 years
-
Type:
-
Multi-jet meters, Compound meters, Turbine meters, Electromagnetic meters, Ultrasonic meters, Prepaid water meters
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Daocheng
-
Model Number:
-
all type
-
Product name:
-
wireless remote split type CIU smart plastic STS prepaid water meter
-
Color:
-
white prepaid water meters
-
Keyword:
-
STS Prepaid cold Water Meter
-
Material:
-
plastic
-
Size:
-
DN15mm 20mm 25mm
-
Application:
-
the water meter for Pipeline water
-
Battery life:
-
6Years to 10 years
-
Display:
-
LCD Digital Display
Products Description

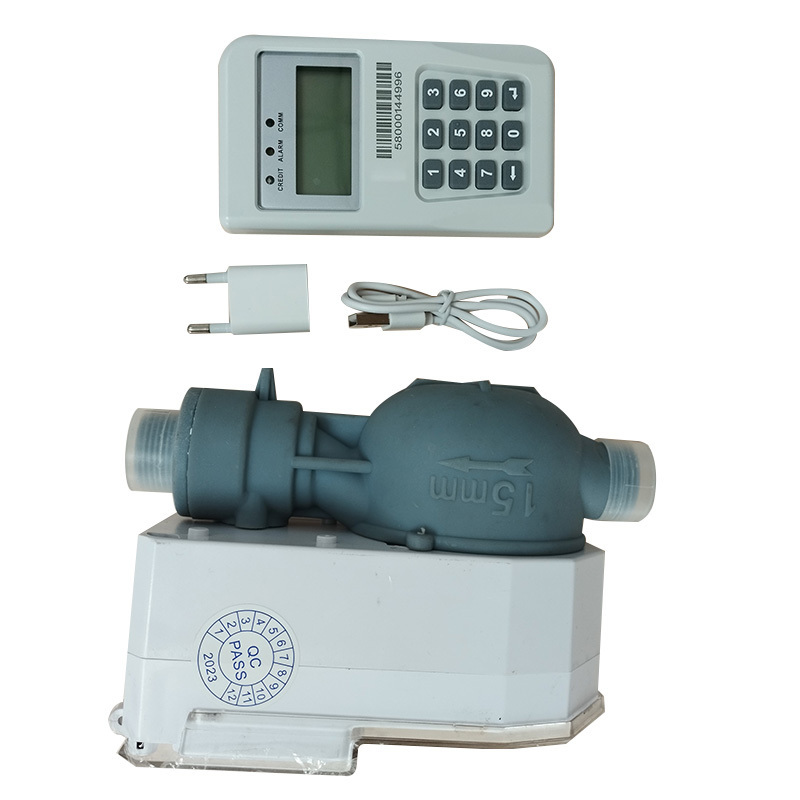

Wireless remote STS split smart Prepaid Water Meter with CIU
DN15 DN20 DN25 Valve Controlled prepaid water meter
|
Diameter
|
mm
|
15
|
20
|
25
|
||
|
Turndown Ratio
|
Q3/Q1
|
≥100
|
|
|
||
|
Q4(overload flow)
|
m3/h
|
3.125
|
5
|
7.875
|
||
|
Q3(constant flow)
|
m3/h
|
2.5
|
4
|
6.3
|
||
|
Q2(boundary flow)
|
m3/h
|
0.05
|
0.064
|
0.1008
|
||
|
Q1(minimum flow)
|
m3/h
|
0.025
|
0.04
|
0.063
|
||
|
Pressure loss
|
∆ p
|
≤63
|
|
|
||
|
Maximum Pressure Allowed
|
MPa
|
≤1
|
|
|
||
|
Working Frequency
|
MHz
|
470-510
|
|
|
||
|
Battery Life
|
year
|
≥6
|
|
|
||
|
Remote Style
|
/
|
LoRa
|
|
|
||
|
Transmit Power
|
dBM
|
≤20
|
|
|
||
|
Valve Work Power
|
mA
|
45
|
|
|
||
|
constant Current
|
uA
|
≤5
|
|
|
||
STS smart prepaid digital water meters
controlled cold water prepaid water meter
LoRa Wireless STS Prepaid Water Meter with AMR/AMI function, realizes the prepayment function and remote semi-automatic/automatic meter data collection through LoRa RF wireless Com. Module. This solution is in order to solve the non-revenue water for water companies. At the same time, it can automatically collect and monitor the meter data, improving the efficiency of meter reading and reducing the cost of management.
LoRa Wireless STS Prepaid Water Meter complies to International STS Standard IEC62055-41,51, gets certified from STSA. Customers could purchase water through multiple methods (Vending Points, Agency, Customer Self-service, ect.), then obtain 20-digit recharge token, and input the recharge token through Customer Interface Unit (CIU) to recharge the meter.
Meanwhile, the meter integrated with LoRa RF Wireless Module could be upgraded to AMR/AMI solution for remote meter data collection. By walking along or driving along the street, basic Meters' Data ( Monthly Consumed Water, Meter Battery Voltage, Run Status, ect.) could be collected automatically by Mobile Data Collector (MDC) and stron POS which equipped with stron Walk-by DataCollection APP, and be uploaded to Center System by GPRS or WiFi. Another way, adopt Data Concentrator Unit (DCU) in concentrated meter installation areas, which could communicate with meter via LoRa RF Wireless Com. and the center system via GPRS.
It could communicate with meters in the range of 500m-1km. Meters' data could be uploaded to Center System automatically everyday, for Customer Monitor, Consumption Data Analyzing, Possible Leakage and tamper situation detection etc., Which actually realizes Meter Data Acquisition Automation.
STS prepaid water meter product features :
STS code type prepaid water meter takes encrypted 20 bit code as transmission medium, with high data security, beautiful appearance and convenient operation. It can be used for water measurement and charging in residential buildings, enterprises and institutions. It is an ideal measuring and charging instrument for water charging and modern management of management department.
STS prepaid water meter specifications:
* It meets the requirements of STS standard and has high encryption level.
* Anti magnetism and anti-interference.
* Cover opening detection.
* Ultra low power consumption.
* Balance alarm to prevent arrears.
* Self check function to prevent valve and storage errors.
* There is no need for meter reading, which is convenient for management.
* Real-time clock.
* Utilities can set step price into meter on request
* There are various ways to recharge without card (Pay by mobile payment M-PESA, Alipay, MTN, Airtel, etc.).
* LORA-RF communication (optional)
STS smart Prepaid Water Meter
|
Function
|
Details
|
|
Prepayment
|
STS Standard, recharge by input 20digits TOKEN
|
|
Low credit alarm
|
Alarm value can be set by inputting corresponding TOKEN
|
|
Prepaid and post-paid switch
|
Meter can be switch to prepaid mode or post-paid mode
|
|
Non-return valve
|
Non-return valve inside for preventing back-flow
|
|
Anti-tamper
|
Meter will automatically close the valve after detection of magnetic field and open cover event
|
|
Step Tariff
|
Step Tariff can be set by inputting corresponding TOKEN
|
|
Overdraft Collection
|
Non- Revenue gas (Overdraft) can be collected day by day or
month by month |
|
Communication
|
The meter is available with AMI system through LORA RF or Bluetooth 4.0 on request
|
|
Information Inquiry
|
Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code
|
