Quick Details
-
Control System Brand:
-
Cypcut
-
Cutting Thickness:
-
25mm metal
-
Control Software:
-
BECKHOFF CYPCUT
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Golden Laser
-
Weight (KG):
-
5500 KG
-
Working area:
-
W2000mm* L6000mm
-
Laser generator working mode:
-
Continuous/Modulation
-
Beam mode:
-
Multimode
-
X axle stroke:
-
3050mm
-
Tube length:
-
3m; 6m
-
Tube diameter:
-
20mm- 160mm
-
Power supply:
-
AC380V±5% 50/60Hz (3 phase)
-
Auxiliary gas system:
-
Dual-pressure gas route of 3 kinds of gas sources
-
Floor space:
-
5.6m x 3.2m
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
adjustable
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Cypcut
-
Cutting Thickness:
-
25mm metal
-
Control Software:
-
BECKHOFF CYPCUT
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Golden Laser
-
Weight (KG):
-
5500 KG
-
Working area:
-
W2000mm* L6000mm
-
Laser generator working mode:
-
Continuous/Modulation
-
Beam mode:
-
Multimode
-
X axle stroke:
-
3050mm
-
Tube length:
-
3m; 6m
-
Tube diameter:
-
20mm- 160mm
-
Power supply:
-
AC380V±5% 50/60Hz (3 phase)
-
Auxiliary gas system:
-
Dual-pressure gas route of 3 kinds of gas sources
-
Floor space:
-
5.6m x 3.2m
CNC laser machine cutting inox, galvanized steel,aluminum

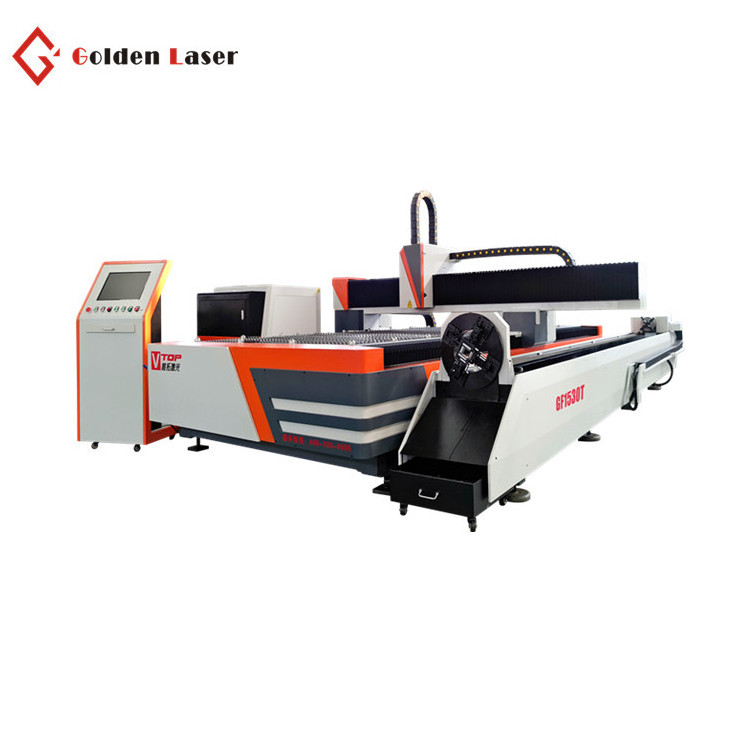

Fiber Laser Cutting Machine for Sheet Metal&Tube XJGC 150300 DTG
- Laser Power: 1000W 1500W 2000W 2500W 3000W
- Working Size: 1500X 3000 / 1500X 4000 / 1500X 6000 / 2000X 6000(mm*mm)
Fiber Laser Cutting Machine - Highlights
1) Adopt double ball screw closed-loop system and America Delta Tau Systems Inc PMAC Controller which enable high processing accuracy and high working efficiency during high speed cutting.
2) Standard collocation of America IPG 1000W fiber laser generator YLS-1000 , realizes low operation and maintenance cost and maximum longer-term investment returns and profits.
3) Open structure i s easy and convenient for material uploading and unloading. Drawer collecting device makes receiving materials more simple.
Fiber Laser Cutting Material
|
Power |
Mild Steel |
Stainless Steel |
Aluminum |
Copper |
Brass |
|
2000W |
16mm |
8mm |
5mm |
3mm |
3mm |
|
1000W |
12mm |
6mm |
3mm |
2mm |
2mm |
|
500W |
6mm |
3mm |
|
|
| Fiber Laser Cutting Industry | |
|
1.Sheet metal fabrication
2. Electrical cabinet 3. Elevator 4. Automotive parts 5. Aviation & aerospace 6. Lighting lamps 7. Metal carfts & decoration |
8. Hardware tools
11. Kitchenware equipment
12. Fitness equipment
14. Agricultural and forestry machinery |
|
Laser power |
1000W |
|
Laser source |
IPG fiber laser generator |
|
Laser generator working mode |
Continuous/Modulation |
|
Beam mode |
Multimode |
|
Processing surface (L × W) |
2000mm x 6000mm |
|
X axle stroke |
6050mm |
|
Y axle stroke |
2550mm |
|
Z axle stroke |
100mm/120mm |
|
CNC system |
America Delta Tau Systems Inc PMAC full-closed loop servo controller |
|
Power supply |
AC380V ± 5% 50/60Hz (3 phase) |
|
Total Power consumption |
11KW |
|
Position accuracy X, Y and Z axle |
+0.03mm |
|
Repeat position accuracy X, Y and Z axle |
+0.02mm |
|
Maximum position speed of X and Y axle |
70m/min |
|
Auxiliary gas system |
Dual-pressure gas route of 3 kinds of gas sources |
|
Format supported |
AI, BMP, PLT, DXF, DST, etc |
|
Floor space |
5.6m x 3.2m |
|
* Technical data, dimensions, appearance and color of machine are subject to change without notification along with updates. |
|
Fiber Laser Cutting Sheet Metal
Fiber Laser Cutting Metal Tube & Pipes
| GOLDEN · VTOP LASER - Metal Laser Cutting Machine Series | |
|
|
|
|
XJGC 150300DT III Simple Fiber Laser Cutting Machine 1. Fiber laser cutting sheet metal 1.5m*3m 2. IPG fiber laser 500w 3. Max thickness 6mm 4. Floor space: 4.5m*4.5m
|
XJG 150300DT Fiber Laser Cutting Machine 1.Fiber laser cutting sheet metal 1.5m*3m 2.Laser power 500W 700W 1000W 3.Max thickness 12mm 4.Floor Space: 5.6m*3.2m
|
|
|
|
|
XJGC 150300 DTG Fiber Laser Cutting Machine 1.Fiber laser cutting sheet metal & tube 2.Laser power 500w 1000w 3.Max thickness 12mm 4.Cut sheet metal 1.5m*3m / tube 3m*200mm
|
XJGC 150300 JH Pallet Fiber Laser Cutting Machine 1.Fiber laser cutting sheet metal 1.5m*3m 2.Laser Power: IPG & Coherent fiber laser 1000W 3.Max 12mm thickness 4.Cutting head: Precitec / Laser mech / Golden Laser
|
|
|
|
|
XJGC 20600G CNC Tube Laser Cutting Machine 1. Fiber laser cutting tube & pipe 2. Laser power: 500W 1000W 2000W 3 .Max cut thickness 10mm 4. Working size: 6m length * 200mm diameter
|
XJGC 200400 JH Fiber Laser Cutting Machine 1. Fiber laser cutting sheet metal 2m*4m 2. Laser power: IPG fiber 2000W 3000W 3. Max thickness 20mm 4. CNC system BECKHOFF / PMAC / CYCUS
|
|
CJG 150300 DTG YAG Laser Cutting Machine
1.YAG laser cutting sheet metal & tube 1.5m*3m 2.Laser Power 650w 850w 3.Max thickness 10mm 4.Suspension type anti-collision and dynamic focus |
JGMSJG 13090 YAG Laser Cutting Machine 1.YAG laser cutting sheet metal 1.3*0.9m 2. Laser power 650w 800w 3. Max thickness 8mm 4. Cut both ferrous & non-ferrous metal |
1, What kind of metal need to cut ? size and thickness?
2, Is it sheet metal or tube?
3, After cutting,what is the final product?
4, Are you end user or machine agent?
