MCH13/ET Portable high pressure Air compressor tank for scuba diving use

MCH13/ET Portable high pressure Air compressor tank for scuba diving use

FOB Reference Price: Get Latest Price

≥1 Sets

US $6900

≥5 Sets

US $6800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 83*43*63

Weight:: 99KG

After Warranty Service:: Video technical support

Local Service Location:: Italy

After sales Service Provided:: Free spare parts

Quick Details

Place of Origin:: Italy

Model Number:: MCH13

Voltage:: 380V-400V

Dimension(L*W*H):: 83*43*63

Weight:: 99KG

After Warranty Service:: Video technical support

Local Service Location:: Italy

After sales Service Provided:: Free spare parts

Product Description

Three phase motor drive in MCH16 series of air compressor .

MCH13 /SMART air compressor have filter device to ffctively separate oil ,water and particles in compressed air .With overpressure

protection and good safety performance ,it is necessary equipment for workers engaged in hazardous operations in toxic areas to
effectively ensure life safety. A professional compressor that inflates air respirator cylinders.

The main features of this high pressure air compressor are :
-Equipped with two sets of high-pressure chaging system ,it can charge two gas cylinders at the same time .
-High load design enables the compressor to operate all year round
-Variable frequency wide frequency three-phase motor can match any voltage between 380V-400V and 50-60HZ at the same time.
-Ajustable safety valve system can meet the different pressure og gas supply such as fire fighting and diving at the same time
,which is more convenient for customers to use
-It has good ductility ,and can upgrade many extended functions such as automatic shutdowm and blowdown function and mute function

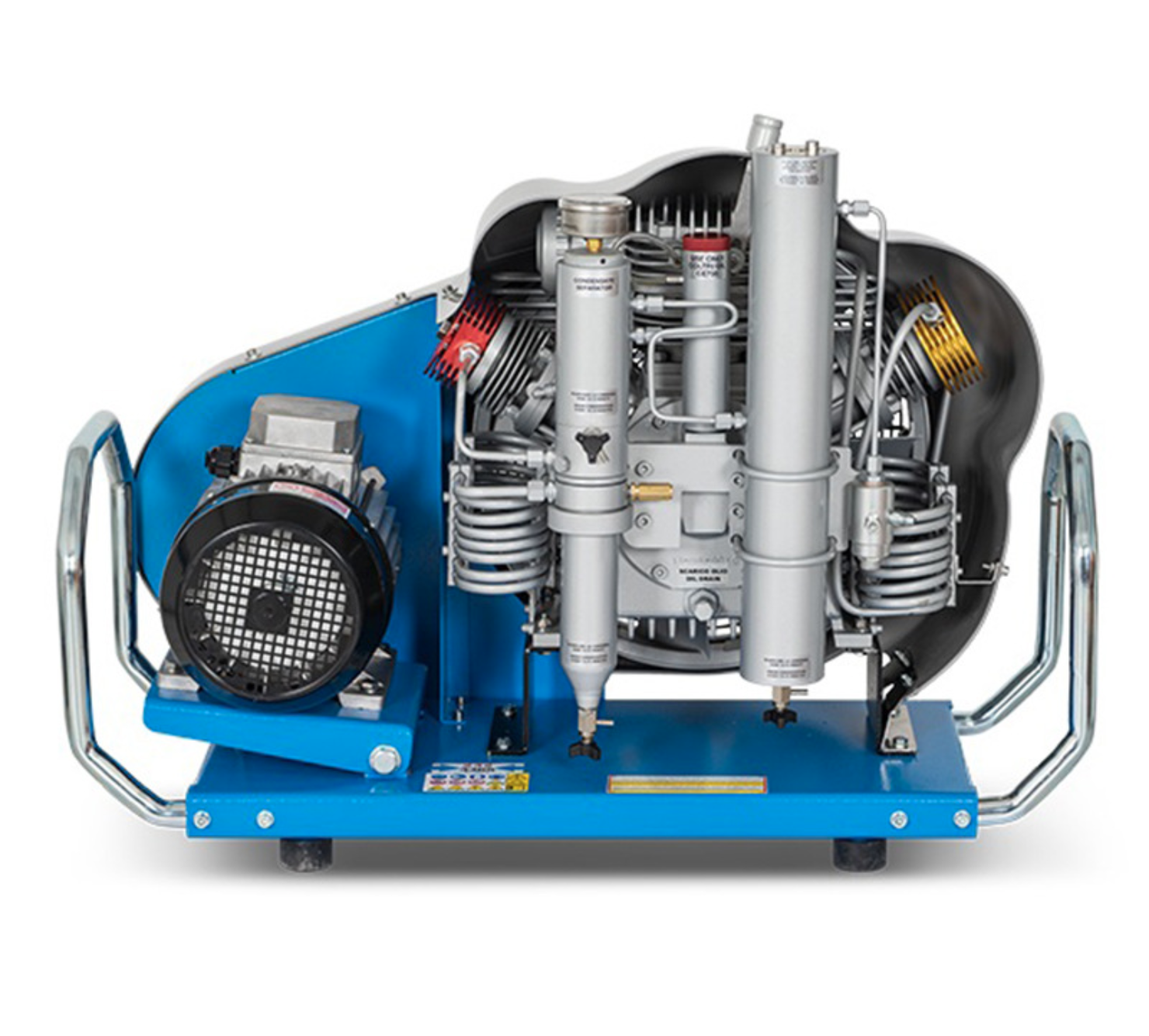

MCH13 Air compressor machine

Charging rate:235L/min

1.41M3/h , 8.3CFM FAD
Power:4 Kw

Filling time:8.3mins (10L,0-200bar)
Dimensions:64*88*48cm
Dry weight:99kg
Noise pressure:80.7 dB
Number of stages and cylinders:3
Max work pressure:330bar/4786psig

Voltage：380-400V，50HZ
