Quick Details
-
Max. Lifting Load:
-
20T
-
Span:
-
7.5-30m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Jane
-
Weight (KG):
-
4000 kg
-
Product name:
-
Single girder overhead crane
-
Color:
-
Client's Request
-
Lifting mechanism:
-
Eliectric Hoist
-
Keywords:
-
10 Ton European Beam Single Double Girder Overhead Crane
-
Control method:
-
Ground Control+Remote Control
-
Power Source:
-
3 Phase 380V 50hz
-
Lifting speed:
-
3 ~ 35 m or customized
-
Work Duty:
-
A5 A6
-
Material:
-
Steel Structure
-
Capacity:
-
0.5-20T
Quick Details
-
Max. Lifting Height:
-
25M, 7.5m, 5M, 10M, 15M, 6m, 20M, Other, 35M
-
Marketing Type:
-
Hot products
-
Rated Lifting Moment:
-
100KN
-
Max. Lifting Load:
-
20T
-
Span:
-
7.5-30m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Jane
-
Weight (KG):
-
4000 kg
-
Product name:
-
Single girder overhead crane
-
Color:
-
Client's Request
-
Lifting mechanism:
-
Eliectric Hoist
-
Keywords:
-
10 Ton European Beam Single Double Girder Overhead Crane
-
Control method:
-
Ground Control+Remote Control
-
Power Source:
-
3 Phase 380V 50hz
-
Lifting speed:
-
3 ~ 35 m or customized
-
Work Duty:
-
A5 A6
-
Material:
-
Steel Structure
-
Capacity:
-
0.5-20T
Products Description

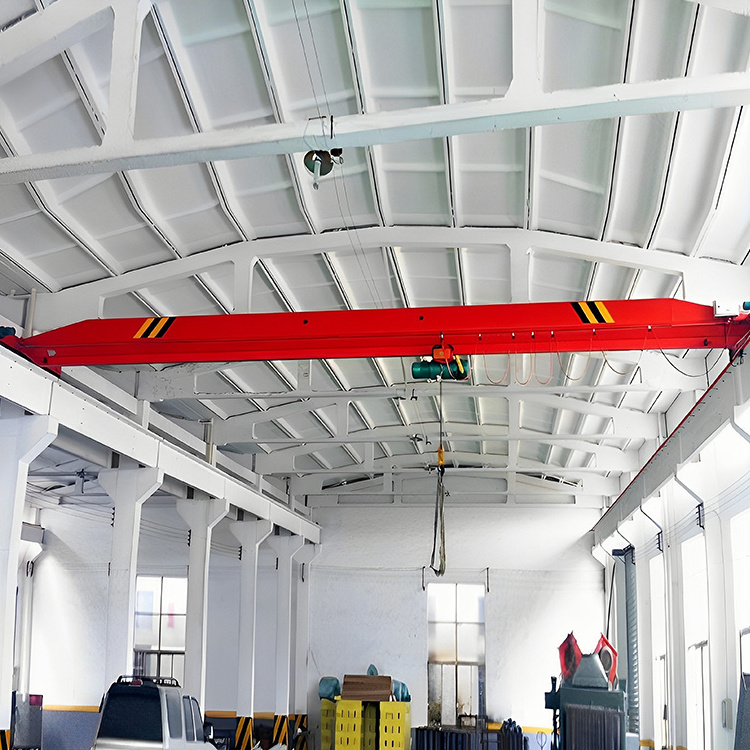

Single girder overhead crane
Single girder overhead crane
is a lifting equipment that is horizontally mounted over workshops, warehouses, and material yards for material lifting. Due to its two ends located on tall cement columns or metal supports, the shape resembles a bridge. The bridge of a single beam bridge crane runs longitudinally along the tracks laid on both sides of the elevated structure, making full use of the space below the bridge to lift materials without being hindered by ground equipment. It is the most widely used and numerous type of lifting machinery.
Specification
|
Single girder overhead crane
|
|
|
||
|
SN
|
Item
|
Parameter
|
||
|
1
|
Load Capacity
|
0.5t to 20t
|
||
|
2
|
Lifting height
|
3 -35 m or customized
|
||
|
3
|
Cross Speed
|
0-30 M/Min (VVVF)
|
||
|
4
|
Working Class
|
A3-A5
|
||
|
5
|
Working temperature
|
-20-45 ℃
|
||
|
6
|
Way to Control
|
Pendant Push Button / Wireless Remote Controller / Cabin
|
||
|
7
|
Specification
|
CE, ISO
|
||
|
8
|
Safety device
|
Buffer,current overload protection,overload device,power failure protection
|
||
|
9
|
Application area
|
Factory,workshop,warehouse,power station,logstic,etc.
|
||
Product Details
Welding technology
The main beam of the crane adopts a welding assembly line combined with manual inspection welding
.
Paint treatment
High performance corrosion-resistant paint surface treatment, customers can customize colors independently.
Single beam main beam
Adopting thickened plates, with high strength, high load-bearing capacity, and time-saving and labor-saving features
.
Running end beam
Adopting a three in one soft drive motor, noiseless, smooth operation, and maintenance free
.
