Quick Details
-
Marketing Type:
-
Hot Product
-
Rated Power:
-
200W
-
Engraving Speed:
-
5-120 characters/min
-
Main Axle Rotational Speed:
-
0-24000rpm/min
-
Feeding Height:
-
100mm
-
Application:
-
110mmx20mm-140mmx80mm
-
Dimensions:
-
56X40X36.5cm
-
Weight (KG):
-
20
-
Marking Depth:
-
0.05-1.0mm (according to materials )
-
Controller:
-
Controller B ( Windows System )
-
Type:
-
Pneumatic Printer
-
System Functions:
-
Bar Code
-
Marking Materials:
-
Metal Matrials
-
Graphic Format Supported:
-
orted: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
Air Cooling
-
Air Cooling:
-
Pneumatic Dot Peen Marking
-
Work Environment:
-
Temperature: 5 ~ +35 C ° Humidity: ≤ 80% room
-
Weight:
-
20.0 kg
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
VMADE
-
Machine Type:
-
CNC
-
Marketing Type:
-
Hot Product
-
Rated Power:
-
200W
-
Engraving Speed:
-
5-120 characters/min
-
Main Axle Rotational Speed:
-
0-24000rpm/min
-
Feeding Height:
-
100mm
-
Application:
-
110mmx20mm-140mmx80mm
-
Dimensions:
-
56X40X36.5cm
-
Weight (KG):
-
20
-
Marking Depth:
-
0.05-1.0mm (according to materials )
-
Controller:
-
Controller B ( Windows System )
-
Type:
-
Pneumatic Printer
-
System Functions:
-
Bar Code
-
Marking Materials:
-
Metal Matrials
-
Graphic Format Supported:
-
orted: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
Air Cooling
-
Air Cooling:
-
Pneumatic Dot Peen Marking
-
Work Environment:
-
Temperature: 5 ~ +35 C ° Humidity: ≤ 80% room
-
Weight:
-
20.0 kg

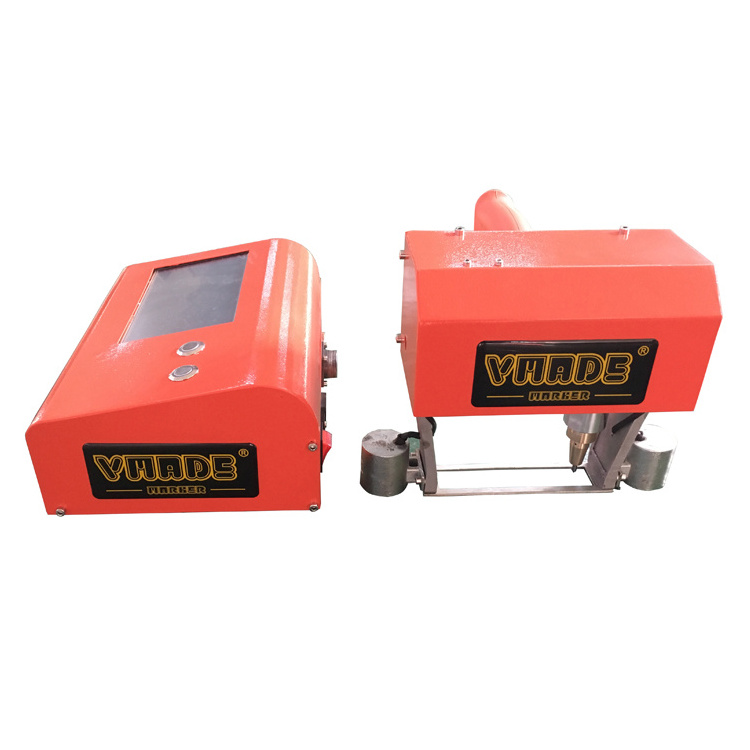

VMADE Hand-Held Micro Percussion Dot Peen Marking Machine Letter Plate Portable Metal Dot Pin Stamping Machine
VMADE Machine Exclusive copyrights for Metal Parts Deep Dot Peen Marking Machine with Touch screen operation
Model: VPM-10P/20P
Applications: Used for marking large-sized workpieces or immovable parts and components on site.
Main Features:
Provided with a lightweight marking head, it is easy to carry for mobile use. Used for printing any character or graphic in large-sized components made of various materials. Fitted with a two-dimensional table which is die casted with precision molds, linear rolling guide rails, and self-enclosed and self-lubricating bearings, thus ensuring highly consistent performance. Employ control software based on WINDOWS operating systems, which enables the automatic printing of serial numbers. It is an ideal machine for marking frames, signs, large-sized or immovable workpieces
|
Type Number |
VPM |
|
Marking Range |
20mm×120mm (Size can be
|
|
Marking speed range |
10~100 words/min (characters) |
|
Marking depth range |
0.05 ~ 1.0mm (according to materials ) |
|
Compressed air pressure required |
0.4~0.8Mpa |
|
System functions |
1.Character input, editing, marking
2.VIN code automatically calculated,
3.Serial number setting, automatically
4.Tag data query, reporting, print 5.Characters, graphics, Chinese character editing |
|
Marked Font size |
Arbitrary adjustable |
|
Tag character content |
0 ~ 9 figures, A ~ Z large, lowercase letters Graphics,
|
|
Operating voltage |
Control cabinet ~ 220V 50Hz ± 10% |
|
Machine power |
≤200W |
|
Work Environment |
Temperature: 5 ~ +35 C ° Humidity: ≤ 80% room |
|
Safety |
Insulation resistance:Normal atmospheric
|
|
Electric strength: 50Hz1500V 1min |
|
|
Leakage Current |
≤0.75Ma |
|
|
Pre-sale service
-
Free sample marking
For free sample testing, please send us your file, we will do marking here and make video to show you the effect,or send sample to you for checking quality. -
Customized machine design
According to customer's application, we may revise our machine accordingly for customer's convenience and high production efficiency.
After-sale Service
- Before delivering the machine, we will test and adjust it many times, guarantee that every machine work and high quality,so you can use it directly when you get it.
- If you have problems while using, 24hours online professional advice available.
- Lifetime software free upgrades.
- Fiber laser source we warranty for 3 years ,the machine warranty for 2 years.
