Quick Details
-
Brand Name:
-
Disen
-
Model Number:
-
DSO-WH50A
-
Product name:
-

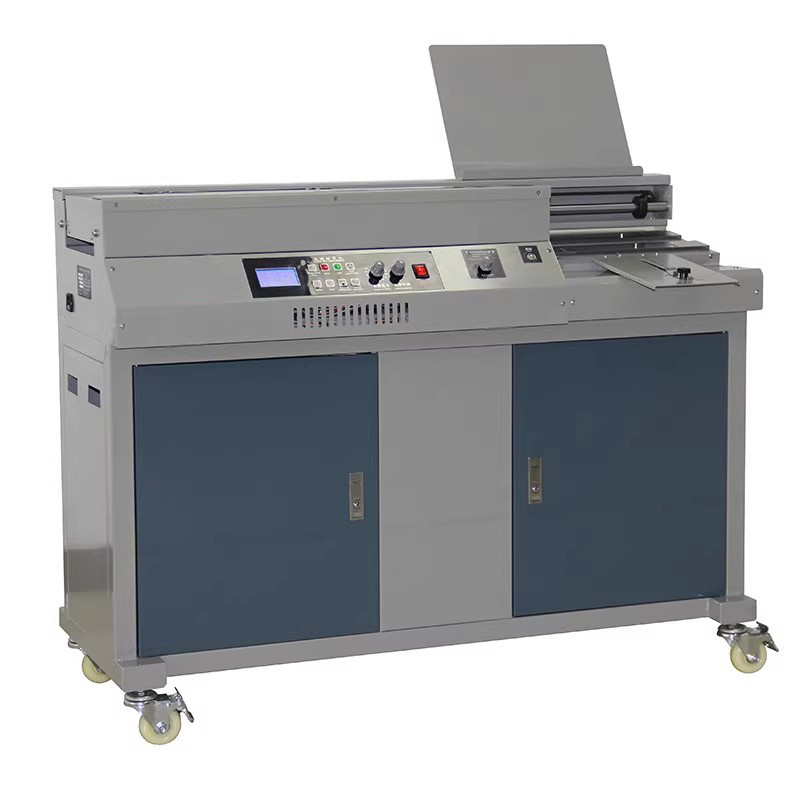

50A Book Glue Binding Machine
-
Keyword:
-
glue book binding machine
-
Name:
-
hot glue binding machine a4
-
Glue roller:
-
1pcs
-
Binding thickness:
-
0-50mm
-
Binding speed:
-
about 200books/hour
-
Slippage type:
-
Beeline
-
Warm-up time:
-
About 25 minutes
-
Binding width:
-
0-380mm(A4)
Quick Details
-
Type:
-
Glue Binding Machine
-
Power:
-
Electricity
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Disen
-
Model Number:
-
DSO-WH50A
-
Product name:
-
50A Book Glue Binding Machine
-
Keyword:
-
glue book binding machine
-
Name:
-
hot glue binding machine a4
-
Glue roller:
-
1pcs
-
Binding thickness:
-
0-50mm
-
Binding speed:
-
about 200books/hour
-
Slippage type:
-
Beeline
-
Warm-up time:
-
About 25 minutes
-
Binding width:
-
0-380mm(A4)
Product Description
Connect power cord.Open the power button on control pannel.Set temp. with 180 degree.
After warming up 25mins.The glue roller rolling automatic.Open the clamp head to put paper on left side.
Put bookcover on cover table.Make sure the middle of bookcover is alignment center line and fix it.
Press start button,the clamp head move from left to right.It will automatic gluing and cutting on spine.
Clamp head move to right side. Cover table lift and clamp for binding. After reach to setting time will open automatic.Generally
set 5seconds.
set 5seconds.
Pick up book from right side of cleamp head.The clamp head will back to last postion. Finish book binding.
Specification
|
Model
|
DSO-WH50A
|
DSO-WH50A+
|
DSO-WH50B
|
DSO-WH50B+
|
|||
|
Binding width
|
0-380mm(A4)
|
|
0-420mm(A3)
|
|
|||
|
Binding thickness
|
0-50mm
|
|
|
|
|||
|
Binding speed
|
About 200books/hour
|
|
|
|
|||
|
Spine
|
Can change with square or round spine
|
|
|
|
|||
|
Power
|
1-2kw
|
|
|
|
|||
|
Voltage
|
220V(optional 110V)
|
|
|
|
|||
|
Glue roller
|
1pcs
|
3pcs
|
1pcs
|
3pcs
|
|||
|
Packing size
|
1330*600*1060
|
|
1430*600*1060mm
|
|
|||
|
Weight
|
170kg
|
|
190kg
|
|
|||
Main Features
(1) Touch the key then you can finish all the flow, very convenience and quickly.
(2) Microcomputer producer controlling, digital display, unattached key-press function and self-checking function.
(3) Precise glue binding, which keep the spine of the book smoothly.
(4) High speed alloy milling cutter which keep coat paper full.
(5) Adjust it just depend on the operating speed.
(6) Digital display screen. Independent key-press function.
