Quick Details
-
Brand Name:
-
HENGSHI
-
Model Number:
-
05
-
Product name:
-
cloture en panneaux rigides classique
-
Wire Diam:
-
4mm~5mm
-
Mesh:
-
25mmX25mm,50mmX25mm,50mmX50mm etc
-
Surface Treatment:
-
PVC Coated , powder coated , Galvanized
-
Applications:
-
industry,agriculture,building,transportation,mining etc
-
Post:
-
square, retangular, round, peach, etc
-
length:
-
2m,2.2m,2.5m
-
Height:
-
0.63~2.43m
-
color:
-
Green, blue, black,gray,brown,etc
-
Packing:
-
metal pallet
Quick Details
-
Frame Material:
-
Metal
-
Feature:
-
Easily Assembled, Sustainable, Rot Proof, Waterproof
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HENGSHI
-
Model Number:
-
05
-
Product name:
-
cloture en panneaux rigides classique
-
Wire Diam:
-
4mm~5mm
-
Mesh:
-
25mmX25mm,50mmX25mm,50mmX50mm etc
-
Surface Treatment:
-
PVC Coated , powder coated , Galvanized
-
Applications:
-
industry,agriculture,building,transportation,mining etc
-
Post:
-
square, retangular, round, peach, etc
-
length:
-
2m,2.2m,2.5m
-
Height:
-
0.63~2.43m
-
color:
-
Green, blue, black,gray,brown,etc
-
Packing:
-
metal pallet
Product Description

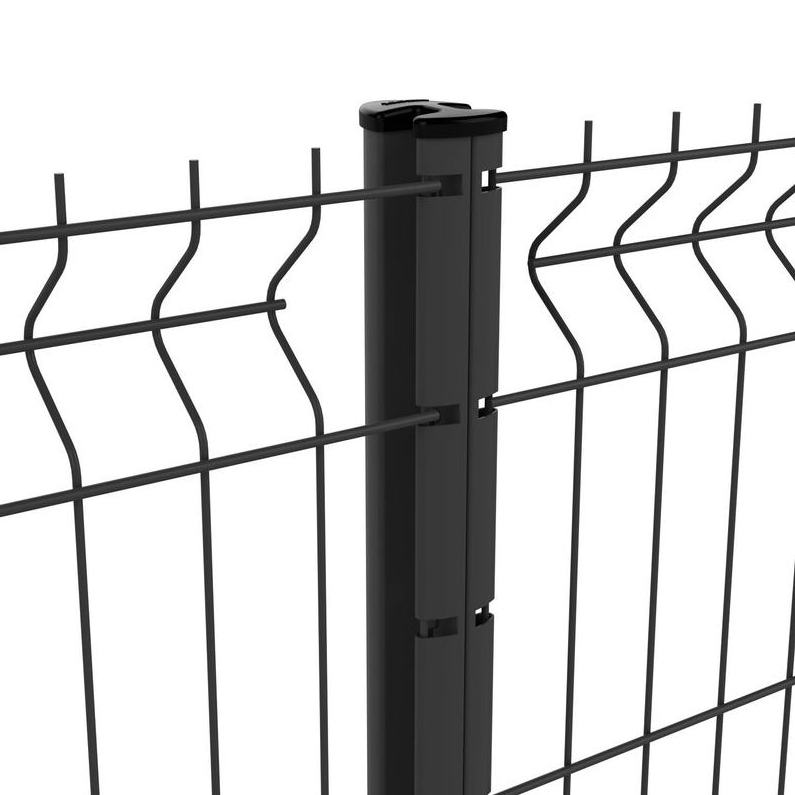

Nylofor 3D is an ideal solution for most types of low to medium security fence applications.
· Attractive and cost effective solution
· Panels have a high level of rigidity
· Wide choice of colour options
· Available as a complete system
Panels
The Nylofor 3D panels are 2500mm wide and heights range from 1730 to 2430mm. The panels have vertical barbs
of 30mm on the top of the panel (panels are reversible if required - barbs at top or at bottom). Mesh sizes of Nylofor
3D are 200 x 50mm, and 100 x 50mm for the beam sections. Heavy wires, with a diameter of 5mm guarantee a
high level of rigidity.
Coating
Panels are manufactured from pre-galvanised wires. An adhesion coating is applied to allow perfect adhesion with the
polyester coating (min. 100 micron). Posts are polyester coated with a galvanized substrate in accordance with Euro
norm 10147.
Colours
Standard colours of Nylofor 3D are Green RAL6005 and Black RAL9005. Other colours are available on request.
Product Paramenters
|
DIMENSIONS (mm)
|
|
|
|
|
|
|
||||||
|
Fence Height
|
post height
|
fence width
|
bending
|
wire diameter
|
mesh
|
mesh
|
||||||
|
630
|
1100
|
2500
|
2
|
4
5
|
55X200
|
50X150
|
||||||
|
830
|
1300
|
|
2
|
|
|
|
||||||
|
1030
|
1500
|
|
2
|
|
|
|
||||||
|
1230
|
1800
|
|
2
|
|
|
|
||||||
|
1530
|
2000
|
|
3
|
|
|
|
||||||
|
1830
|
2300
|
|
4
|
|
|
|
||||||
|
2030
|
2500
|
|
4
|
|
|
|
||||||
|
2430
|
3000
|
|
4
|
|
|
|
||||||
Details Images
Color
Gray Color
Black color
Galvanized
Benefits
Rigidity
Panels with rectangular meshes, heavy wires and horizontal curves guarantee a very high level of rigidity.
Complete system
The system consists of panels in various heights supported by 5 types of posts, each with a specific fixing
system. All types are available with adapted accessories and a wide range of swing and sliding gates.
Long lifetime
HENGSHI fence’s coating technology is state of the art and assures an extra long life. A special layer is applied after galvanisation to ensure optimal adhesion of the polyester top coat.
Efficient and fast installation
All components have been developed to provide a professional system that can be installed efficiently
and rapidly.
loading the container
1>>Packing:metal pallet with plastic film ,which protect the goods well and easy to unloading it
2>>Each pole will be wrapped in plastic film to prevent the paint from being rubbed off during transportation
TIPS： If you have other packing requirements, we can also customize according to your requirements
2>>Each pole will be wrapped in plastic film to prevent the paint from being rubbed off during transportation
TIPS： If you have other packing requirements, we can also customize according to your requirements
