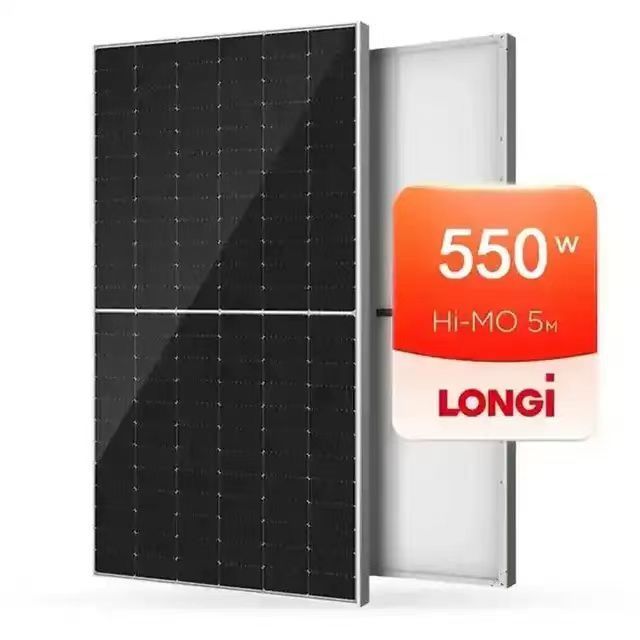

Ensure Color and Power No Difference.
Ensure high yields,consistent performance and durability,
First of 52 steps strict quality control and inspection process.
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
25years
-
Brand Name:
-
LONGi
-
Model Number:
-
Hi-MO X6 explorer
-
Place of Origin:
-
China
-
Panel Dimensions:
-
2278x1134x35mm
-
Weight:
-
27.5kg
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
-
Frame:
-
Anodized aluminum alloy frame
-
Cable:
-
4mm2; Portrait/Landscape Length
-
Glass:
-
3.2mm, High Transmission
-
Maximum static load on the front side:
-
5400Pa
-
Maximum static load on the back:
-
2400Pa
-
Junction Box:
-
IP68 Rated
-
Application:
-
Residential&Commercial Solar Panel System
-
Through hail testing:
-
Diameter 25mm, impact speed 23m/s
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, HJT, hbc, N-TYPE, BIPV
-
Panel Efficiency:
-
22.5%
-
Warranty:
-
25years
-
Brand Name:
-
LONGi
-
Model Number:
-
Hi-MO X6 explorer
-
Place of Origin:
-
China
-
Panel Dimensions:
-
2278x1134x35mm
-
Weight:
-
27.5kg
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
-
Frame:
-
Anodized aluminum alloy frame
-
Cable:
-
4mm2; Portrait/Landscape Length
-
Glass:
-
3.2mm, High Transmission
-
Maximum static load on the front side:
-
5400Pa
-
Maximum static load on the back:
-
2400Pa
-
Junction Box:
-
IP68 Rated
-
Application:
-
Residential&Commercial Solar Panel System
-
Through hail testing:
-
Diameter 25mm, impact speed 23m/s
Products Description
Project type: General flat photovoltaic power station
Project location: Chakovar City, Punjab Province, Pakistan
Project capacity 15.21MW (14.21MW provided by Longi)
Project highlights: This project is one of the series of solar power generation projects in collaboration with Bestway Cement Group, which reduces carbon footprint and dependence on the national power grid.
Product Model
|
Component model
|
LR5-72HTH-570M
|
LR5-72HTH-575M
|
LR5-72HTH-580M
|
LR5-72HTH-585M
|
|
Maximum power (Pmax/W)
|
570
|
575
|
580
|
585
|
|
Open circuit voltage (Voc/V)
|
51.91
|
52.06
|
52.21
|
52.36
|
|
Short circuit current (Isc/A)
|
14.07
|
14.14
|
14.20
|
14.27
|
|
Peak power voltage (Vmp/V)
|
43.76
|
43.91
|
44.06
|
44.21
|
|
Peak power current (Imp/A)
|
13.03
|
13.10
|
13.17
|
13.24
|
Packing & Delivery
Our Factory
In March 2022, certified by the Hamelin Institute of Solar Energy (ISFH) in Germany, Longi's silicon heterojunction cell (p-HJT) prepared using gallium doped p-type silicon wafers set a world record for the efficiency of large-sized p-type photovoltaic cells with a conversion efficiency of 25.47%.
The R&D team of Longi has set a new world record for 25.40% conversion efficiency of indium free HJT batteries on M6 full-size (274.5c ㎡) single crystal silicon wafers.
On November 2, 2022, Longi Green Energy launched a new generation of photovoltaic module products, Hi-MO 6, to the world. Based on the different functional characteristics and application scenarios of the product, Hi-MO 6 has innovatively created four series in the industry: Explorer series, Scientist series, Extreme Intelligence series, and Artist series.
In March 2023, Longi Green Energy was once again listed on Bloomberg New Energy Finance (BNEF) as a Tier 1 (primary photovoltaic module manufacturer).
Grade A Material
Solar Panel Glass
* High-transmittance and low reflection
* Inspection:GB15763.2-2005.ISO9050
* High solar transmittance
* High mechanical strength
* High flatness
* Inspection:GB15763.2-2005.ISO9050
* High solar transmittance
* High mechanical strength
* High flatness
EVA
*Excellent durability, such as weather resistance, high-temperature and high humidity resistance, UV light resistance. *Excellent
light transmittance and transparency *Inactivation and harmless in solar cells during processing *Have a high cross linking rate
after lamination. *Good encapsulating properties
light transmittance and transparency *Inactivation and harmless in solar cells during processing *Have a high cross linking rate
after lamination. *Good encapsulating properties
Solar Cells
* High output-power: conversation efficiency is 18%-22%
* High shunt-resistance: adapt the several environmental conditions.
* Bypass diode minimizes the power drop by shade
* Excellent low light effect
* Low breakage rate
* High shunt-resistance: adapt the several environmental conditions.
* Bypass diode minimizes the power drop by shade
* Excellent low light effect
* Low breakage rate
Back Sheet
*High Weather Resistance *High Security *High insulation *High Water Vapor Resistance *High Adhesion *High Compatibility
Frame
* Aluminium extrusion profile with prompt delivery
* Available in customized surface finish
* Excellent material for smooth and subtle edges
* Extrusion for construction and other industrial purposes
* Thickness variable according special request
* Available in customized surface finish
* Excellent material for smooth and subtle edges
* Extrusion for construction and other industrial purposes
* Thickness variable according special request
Junction Box
* High current and voltage carrying capacity
* Simple, quick and safe effective field assembly
* IP 68 it can be used in the outdoor iron environment
* Expansion connector are available for future requirement
* Double permanent connection are adapted for all of the connecting.
* Simple, quick and safe effective field assembly
* IP 68 it can be used in the outdoor iron environment
* Expansion connector are available for future requirement
* Double permanent connection are adapted for all of the connecting.
Strict QC System
Before and After Lamination. Most stringent acceptance criteria and tightest tolerance, Intelligent alarm and stop mechanism in
case of any deviation or errors
case of any deviation or errors
Before and Following Lamination
Ensure "Zero" micro crack monitoring before final Inspection, Continuous line monitoring and video photo record for each cell and
panel.
Ensure "Zero" micro crack monitoring before final Inspection, Continuous line monitoring and video photo record for each cell and
panel.
