Product Name
|

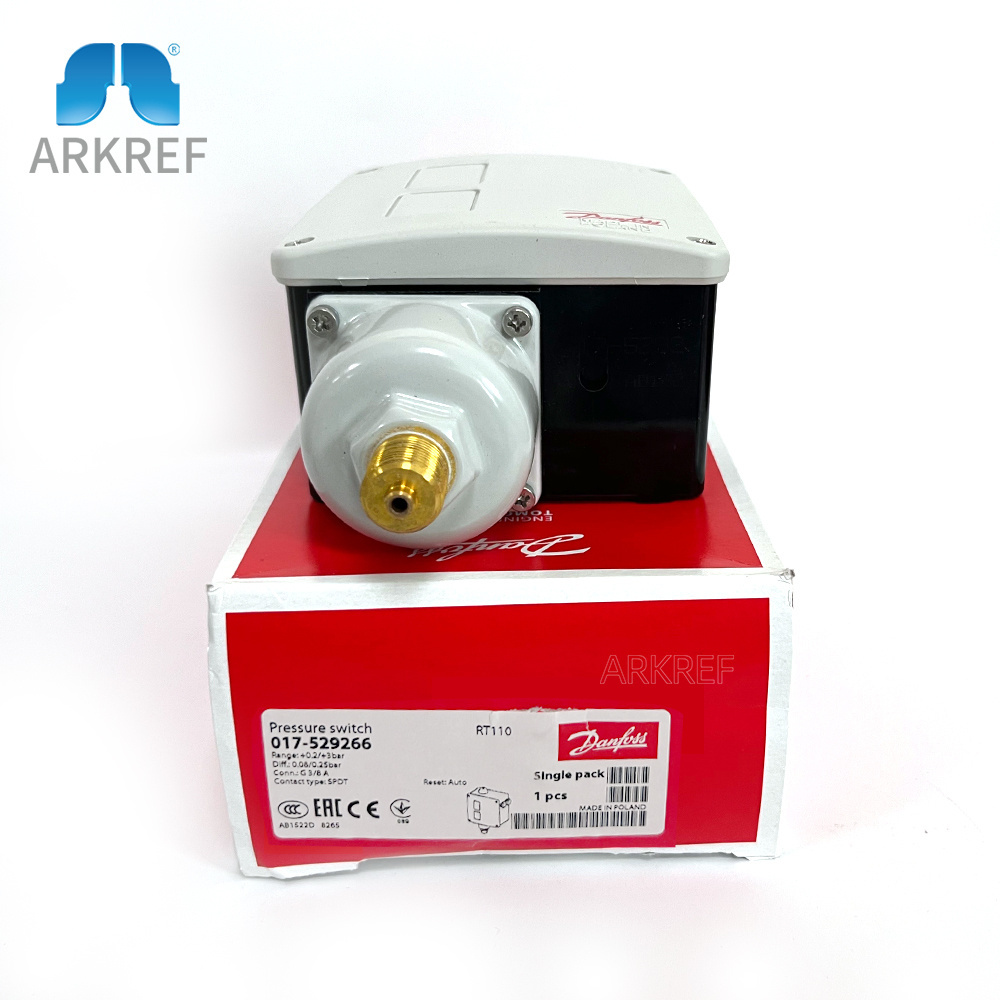

Danfoss Pressure Switch
|
|
Ambient temperature range [°C] [Max]
|
70 °C
|
|
Ambient temperature range [°C] [Min]
|
-50 °C
|
|
Ambient temperature range [°F] [Max]
|
158 °F
|
|
Ambient temperature range [°F] [Min]
|
-58 °F
|
|
Category
|
IV
|
|
Contact function
|
SPDT
|
|
Contact rating
|
AC15=3 A, 400 V
AC1=10 A, 400 V DC13=12 W, 220 V AC3=4 A, 400 V LR=28 A, 400 V |
|
Contact rating @ 250K cycles
|
AC15=1 A, 400 V
AC1=10 A, 400 V AC3=2 A, 400 V DC13=12 W, 220 V LR=14 A, 400 V |
|
Electrical connection
|
Screwed cable entry
|
|
Electrical connection size
|
2xPg 13.5
|
|
Electrical connection standard
|
DIN 40430
|
|
Electrical spec. standard
|
EN 60947-4/-5
|
