Quick Details
-
Maximum Torque:
-
0.72N.m
-
Operating Speed:
-
24000/30000rpm
-
Size:
-
353*80mm
-
Power:
-
2.2kw
-
Current:
-
7.6A
-
Frequency:
-
400Hz
-
Rotating speed:
-
24000rpm
-
Pole number:
-
2P
-
Phase number:
-
3
-
Weight:
-
9kg
-
Blind rivet:
-
IS020-15°
-
Tool holder:
-
IS020
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Weight (KG):
-
10
-
Brand Name:
-
G-PENNY Machine
-
Maximum Torque:
-
0.72N.m
-
Operating Speed:
-
24000/30000rpm
-
Size:
-
353*80mm
-
Power:
-
2.2kw
-
Current:
-
7.6A
-
Frequency:
-
400Hz
-
Rotating speed:
-
24000rpm
-
Pole number:
-
2P
-
Phase number:
-
3
-
Weight:
-
9kg
-
Blind rivet:
-
IS020-15°
-
Tool holder:
-
IS020
Product Description

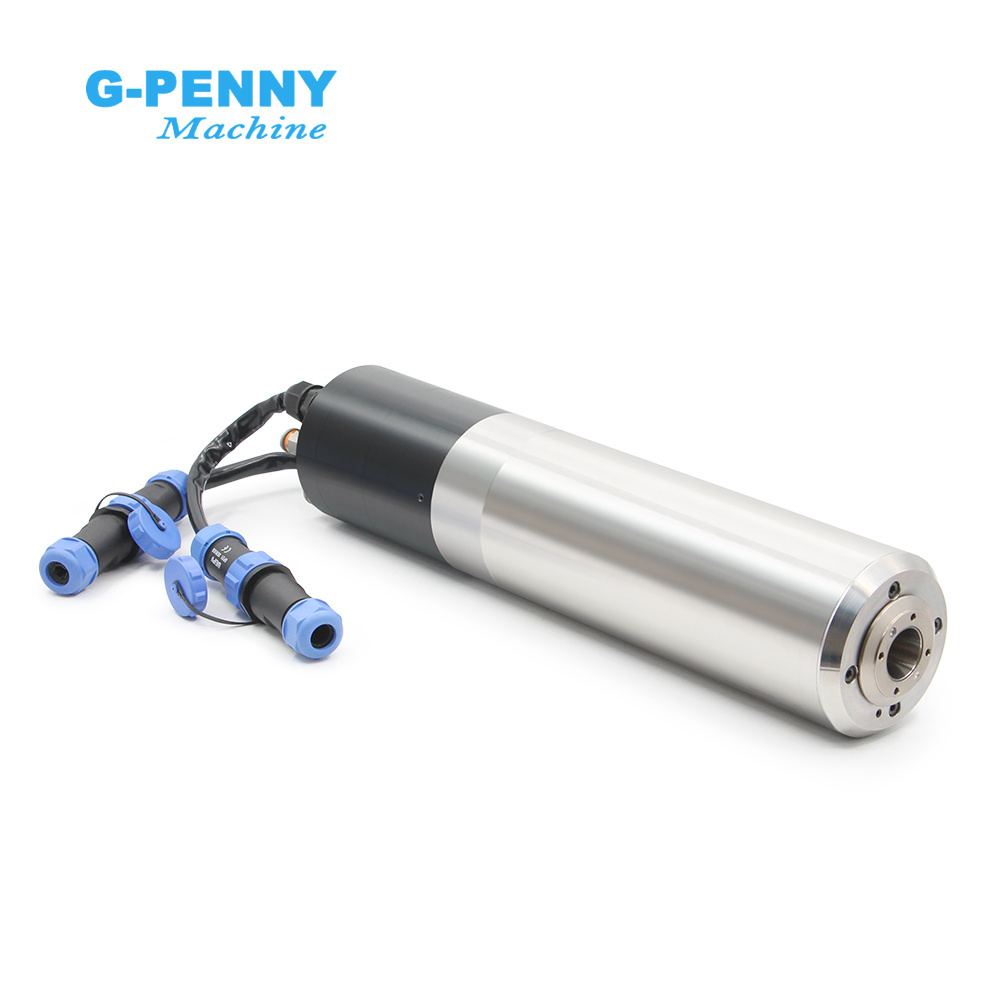

1 pcs & 110v/220v/380v 2.2kw Water cooled spindle motor ATC Spindle motor 4 pcs Ceramic Ball Bearings
(NEW DESIGN-WITH AIR PLUG)
Spindle Model
：GDL80-20-24Z/2.2
Voltage: 110v/220v/380v
Power : 2.2kw
Current : 10A
Frequency : 400Hz/800H
Rotating speed : 24000rpm
Pole number : 2P/ 4P
Phase number : 3
Weight(kg): 10KG
4 pcs Ceramic Ball Bearings ( 7005 *2 & 7004 * 2)
Tool holder: ISO20 (Parfaite is recommended)
Voltage: 110v/220v/380v
Power : 2.2kw
Current : 10A
Frequency : 400Hz/800H
Rotating speed : 24000rpm
Pole number : 2P/ 4P
Phase number : 3
Weight(kg): 10KG
4 pcs Ceramic Ball Bearings ( 7005 *2 & 7004 * 2)
Tool holder: ISO20 (Parfaite is recommended)
|
Size
|
Power
|
Voltage
|
Current
|
|
80*350.7mm
|
2.2kw
|
110v/220v/380v
|
10A
|
|
Frequency
|
Speed
|
Pole number
|
Phase number
|
|
400Hz/800Hz
|
24000rpm
|
2p/4p
|
3
|
1. The electric spindle must be installed in the clamping position, otherwise the bearing will be damaged easily.
2. The spindle must be completely stopped to change the tool. The manual tool change button must not work when the spindle rotates, otherwise the spindle will be stuck.
3. The compressed air must be clean and dry with a filtration accuracy of 0.1 microns. The gas seal is always open. It is recommended to use secondary filtration with a filtration accuracy of 0.5 microns and 0.1 microns, and the air filter has a self-draining device.
2. The spindle must be completely stopped to change the tool. The manual tool change button must not work when the spindle rotates, otherwise the spindle will be stuck.
3. The compressed air must be clean and dry with a filtration accuracy of 0.1 microns. The gas seal is always open. It is recommended to use secondary filtration with a filtration accuracy of 0.5 microns and 0.1 microns, and the air filter has a self-draining device.
Common knowledge on the use and maintenance of automatic tool changing electric spindle series products
1. Before starting work, turn on the electric spindle and run it without load for 5-10 minutes for running-in and preheating.
2. Manually change the tool three to four times. The hand-tightened tool handle and spindle rotate normally and then start working.
3. During use, be sure to change the tool when the spindle is completely stopped to prevent friction between the cylinder shaft and the tie rod and cause congestion.
4. Keep the solenoid valve clean and the exhaust smooth to prevent the compressed air from accumulating in the cylinder after the tool change spindle grabs the tool, and the piston cannot return to its position. The friction between the cylinder shaft and the puller will cause congestion.
1. Before starting work, turn on the electric spindle and run it without load for 5-10 minutes for running-in and preheating.
2. Manually change the tool three to four times. The hand-tightened tool handle and spindle rotate normally and then start working.
3. During use, be sure to change the tool when the spindle is completely stopped to prevent friction between the cylinder shaft and the tie rod and cause congestion.
4. Keep the solenoid valve clean and the exhaust smooth to prevent the compressed air from accumulating in the cylinder after the tool change spindle grabs the tool, and the piston cannot return to its position. The friction between the cylinder shaft and the puller will cause congestion.
5. Air pump and oil and water The separator discharges oil and water once a day to keep the compressed air dry and clean
Each interface is equipped with a silicone cover to prevent damage during transportation.
