Quick Details
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
3.2KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
COMEID
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
3150*1950*1450 (mm)
-
Weight (KG):
-
1000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
wood acrylic PVC engraving cutting
-
Structure:
-
Iron casting table stable strong table
-
Transmission:
-
Linear rail and ball screw
-
Spindle:
-
Water Cooling Spindle
-
Control system:
-
DSP Control System
-
Software:
-
ARTCAM,Type3
-
Package:
-
plywood case
-
Key Word:
-
4 axis CNC machine rotary spindle
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
6000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
3.2KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
COMEID
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
3150*1950*1450 (mm)
-
Weight (KG):
-
1000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
wood acrylic PVC engraving cutting
-
Structure:
-
Iron casting table stable strong table
-
Transmission:
-
Linear rail and ball screw
-
Spindle:
-
Water Cooling Spindle
-
Control system:
-
DSP Control System
-
Software:
-
ARTCAM,Type3
-
Package:
-
plywood case
-
Key Word:
-
4 axis CNC machine rotary spindle

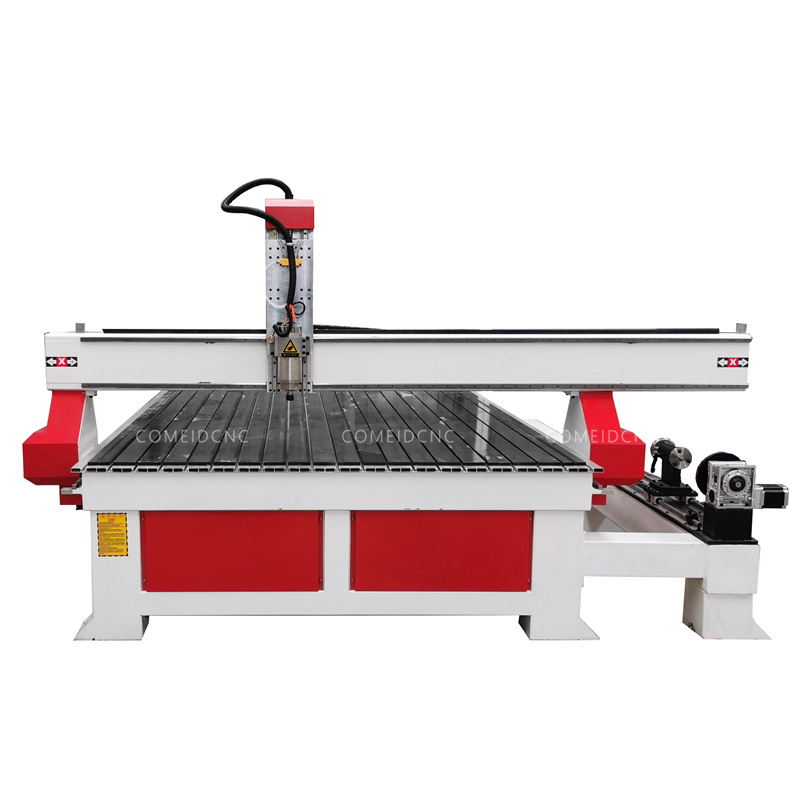

High quality 4 axis CNC machine rotary spindle manufacturer
ADVANTAGE:
1. For Z axis,we use double ballscrew,which has bigger and stronger holding power.
2. We use accurate LM linear (Taiwan HIWIN) 25mm, more stable,higher precision,longer lifetime and
lower noise.
3. The rotary table can be movable,so you can both work on flat and cylinder objects.
TECHNICAL PARAMETERS :
|
Machine Model |
4 axis CNC Router CMD1335 with Rotary |
|
XY Transmission |
Linear Rail and Rack Gears |
|
Spindle motor |
3.0KW Self-coolant Spindle |
|
Software |
TYPE3 / AUTCUT (English)/ ARTCAM |
|
Operation System |
DSP 0501 Control System/Nc Studio Card |
|
Driver |
Stepper Motor |
|
Spindle Speed |
6000-24000 RPM |
|
Max Working Speed |
6000mm/min |
|
Working Voltage |
AC220V 50HZ/60HZ |
|
Blade Diameter |
3.175mm,4mm,6mm(or 8mm,12.7mm) |
|
Rotary Size |
30mm(diameter) *1500mm(length) |
|
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
|
X,Y Resolution |
0.025mm |
|
N.W |
980KG |
|
Packing Size(L*W*H) |
3200*2400*1600mm |
|
Key Word |
router cnc woodworking |
|
Machine Model |
rotary cnc router |
Sample display:
For furniture bulk production such as desk / sofa legs/stair handrailsand other column/cylinder products
3D Sculptures ,complex artworks ,360 degree human body, buddhist statue ,artwork etc
