- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
Customer's Requirement
-
Power:
-
7.5kw
-
Weight:
-
450kg
-
Dimension(L*W*H):
-
1100x676x975mm
-
Name:
-
homogenizer used in milk juice ice cream
-
Capacity:
-
1000L/H
-
Max pressure:
-
25Mpa
-
Application:
-
use for homogenizer milk, juice, beverage and so on
-
Material:
-
Stainless Steel 304
-
Product Type:
-
Daily Cosmetics
-
Designation:
-
High Pressure Milk Homogenizer Machine
-
Working pressure:
-
0-20Mpa
-
Piston diameter and frequency:
-
Diameter 25mm - about 210 times /minutes
-
Certification:
-
CE SGS
Quick Details
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Qiaoxing
-
Model Number:
-
GJJ
-
Voltage:
-
Customer's Requirement
-
Power:
-
7.5kw
-
Weight:
-
450kg
-
Dimension(L*W*H):
-
1100x676x975mm
-
Name:
-
homogenizer used in milk juice ice cream
-
Capacity:
-
1000L/H
-
Max pressure:
-
25Mpa
-
Application:
-
use for homogenizer milk, juice, beverage and so on
-
Material:
-
Stainless Steel 304
-
Product Type:
-
Daily Cosmetics
-
Designation:
-
High Pressure Milk Homogenizer Machine
-
Working pressure:
-
0-20Mpa
-
Piston diameter and frequency:
-
Diameter 25mm - about 210 times /minutes
-
Certification:
-
CE SGS
1. homogenizer used in milk juice ice cream Description :
(1) homogenizer used in milk juice ice cream is widely used in the dairy sauce , fruit juice beverages, chemical industry, pharmaceutical industry, biological chemical industry, protect skin to taste, paint ink, nano materials, petrochemical industry, printing and dyeing auxiliaries, papermaking, pesticides, fertilizers, plastics and rubber, the power electronics industry of fine chemicals, such as super fine crushing, thus get higher standards more high quality products.
(2) fruit juice milk homogenizer equipment product to solve the easy stratification, precipitation of formula design and color of milk, gave birth to the juice, contains protein and natural health products have a good role and applications.
2. homogenizer used in milk juice ice cream Main Data:
| Model | Flow (L/H) | Max Pressure (Mpa) | Working Pressure (Mpa) | Power (Kw) | Dimension (L×W×H) |
| GJJ-0.2/25 | 200 | 25 | 20 | 2.2 | 755×520×935 |
| GJJ-0.5/25 | 500 | 25 | 20 | 4 | 1010×616×975 |
| GJJ-1/25 | 1000 | 25 | 20 | 7.5 | 1100×676×975 |
| GJJ-1.5/25 | 1500 | 25 | 20 | 11 | 1100×770×1100 |
| GJJ-2/25 | 2000 | 25 | 20 | 15 | 1410×850×1190 |
| GJJ-3/25 | 3000 | 25 | 20 | 22 | 1410×960×1280 |
| GJJ-4/25 | 4000 | 25 | 20 | 30 | 1550×1050×1380 |
| GJJ-5/25 | 5000 | 25 | 20 | 37 | 1605×1200×1585 |
| GJJ-6/25 | 6000 | 25 | 20 | 45 | 1671×1260×1420 |
| GJJ-8/25 | 8000 | 25 | 20 | 55 | 1671×1260×1420 |
| GJJ-10/25 | 10000 | 25 | 20 | 75 | 2725×1398×1320 |
| GJJ-12/25 | 12000 | 25 | 20 | 90 | 2825×1500×1320 |
| GJJ-0.1/40 | 100 | 40 | 35 | 3 | 755×520×935 |
| GJJ-0.3/40 | 300 | 40 | 35 | 5.5 | 1020×676×1065 |
| GJJ-0.5/40 | 500 | 40 | 35 | 7.5 | 1100×676×1065 |
| GJJ-0.8/40 | 800 | 40 | 35 | 11 | 1100×770×1100 |
| GJJ-1/40 | 1000 | 40 | 35 | 15 | 1410×850×1190 |
| GJJ-1.5/40 | 1500 | 40 | 35 | 22 | 1410×850×1280 |
| GJJ-2/40 | 2000 | 40 | 35 | 30 | 1550×1050×1380 |
| GJJ-2.5/40 | 2500 | 40 | 35 | 37 | 1605×1200×1585 |
| GJJ-3/40 | 3000 | 40 | 35 | 45 | 1605×1200×1585 |
| GJJ-4/40 | 4000 | 40 | 35 | 55 | 1671×1260×1420 |
| GJJ-5/40 | 5000 | 40 | 35 | 75 | 2000×1400×1500 |
| GJJ-6/40 | 6000 | 40 | 35 | 90 | 2825×1500×1320 |
| GJJ-0.1/60 | 100 | 60 | 50 | 4 | 1020×676×1065 |
| GJJ-0.2/60 | 200 | 60 | 50 | 5.5 | 1020×676×1065 |
| GJJ-0.3/60 | 300 | 60 | 50 | 7.5 | 1100×676×1065 |
| GJJ-0.5/60 | 500 | 60 | 50 | 11 | 1100×770×1100 |
| GJJ-0.8/60 | 800 | 60 | 50 | 18.5 | 1410×850×1190 |
| GJJ-1/60 | 1000 | 60 | 50 | 22 | 1470×960×1280 |
| GJJ-1.5/60 | 1500 | 60 | 50 | 37 | 1605×1200×1585 |
| GJJ-2/60 | 2000 | 60 | 50 | 45 | 1671×1260×1420 |
| GJJ-2.5/60 | 2500 | 60 | 50 | 55 | 2000×1300×1585 |
| GJJ-3/60 | 3000 | 60 | 50 | 75 | 2725×1398×1320 |
| GJJ-4/60 | 4000 | 60 | 50 | 90 | 2825×1500×1320 |
| GJJ-5/60 | 5000 | 60 | 50 | 110 | 2825×1500×1320 |
| GJJ-0.1/70 | 100 | 70 | 60 | 5.5 | 1020×676×1065 |
| GJJ-0.2/70 | 200 | 70 | 60 | 7.5 | 1100×676×1065 |
| GJJ-0.3/70 | 300 | 70 | 60 | 11 | 1100×770×1100 |
| GJJ-0.5/70 | 500 | 70 | 60 | 15 | 1410×850×1190 |
| GJJ-1/70 | 1000 | 70 | 60 | 22 | 1410×850×1280 |
| GJJ-1.5/70 | 1500 | 70 | 60 | 37 | 1605×1200×1585 |
| GJJ-2/70 | 2000 | 70 | 60 | 45 | 1671×1260×1420 |
| GJJ-2.5/70 | 2500 | 70 | 60 | 55 | 1671×1260×1420 |
| GJJ-3/70 | 3000 | 70 | 60 | 75 | 2725×1398×1320 |
| GJJ-4/70 | 4000 | 70 | 60 | 90 | 2825×1500×1320 |
| GJJ-5/70 | 5000 | 70 | 60 | 110 | 2825×1500×1320 |
| GJJ-0.1/100 | 100 | 100 | 80 | 7.5 | 1100×676×1065 |
| GJJ-0.2/100 | 200 | 100 | 80 | 11 | 1100×770×1100 |
| GJJ-0.3/100 | 300 | 100 | 80 | 15 | 1410×850×1190 |
| GJJ-0.5/100 | 500 | 100 | 80 | 18.5 | 1410×850×1190 |
| GJJ-1/100 | 1000 | 100 | 80 | 37 | 1605×1200×1585 |
| GJJ-2/100 | 2000 | 100 | 80 | 75 | 2725×1398×1320 |
| GJJ-3/100 | 3000 | 100 | 80 | 110 | 2825×1500×1320 |

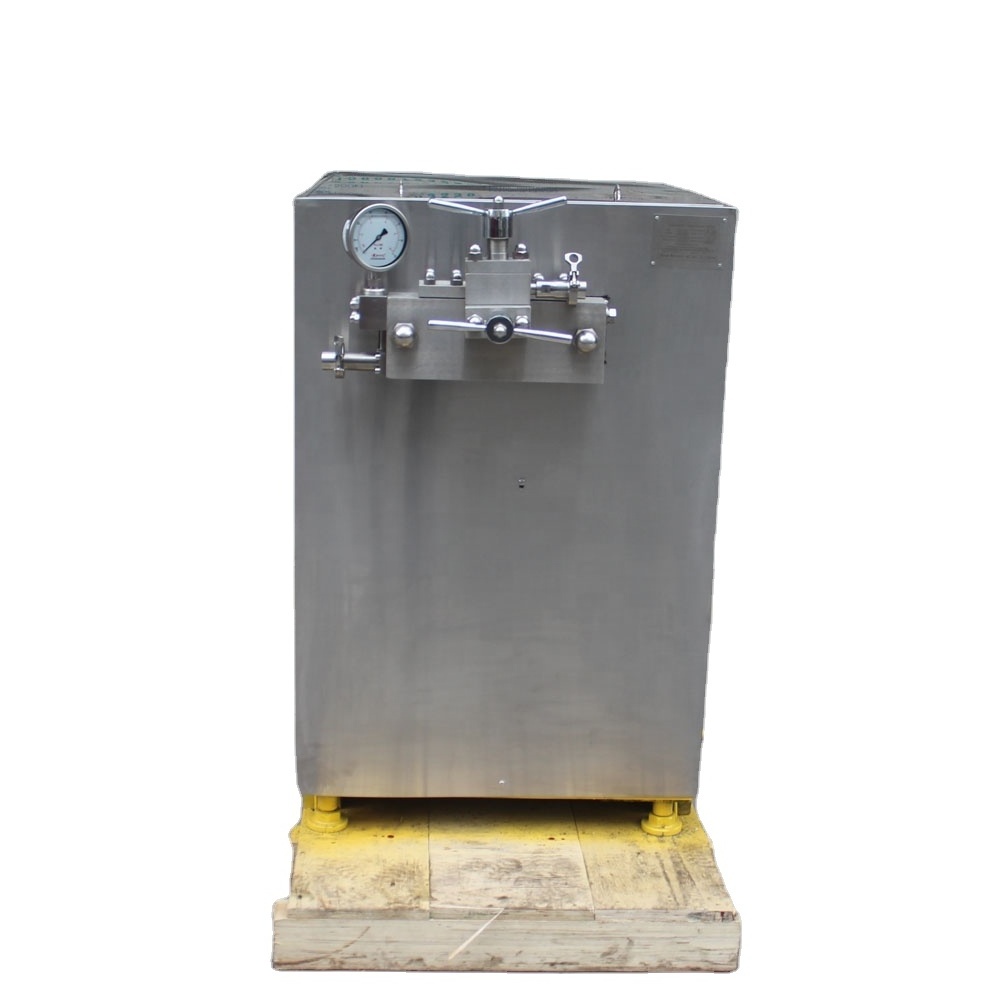

3. homogenizer used in milk juice ice cream Photos :
