Quick Details
-
Brand Name:
-
OEM
-
Liquid Flow Rate:
-
4M3/H
-
Maximum Working Pressure:
-
1.0 Mpa
-
Weight:
-
1.28 KG
-
Dimension(L*W*H):
-
191*73*50MM
-
Working Temperature Range:
-
-195℃---220℃
-
Application:
-
Cooling or Heating
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
None
-
Certification:
-
ce
-
After sales Service Provided:
-
Online support
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Structure:
-
Plate Heat Exchanger
-
Voltage:
-
230V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Liquid Flow Rate:
-
4M3/H
-
Maximum Working Pressure:
-
1.0 Mpa
-
Weight:
-
1.28 KG
-
Dimension(L*W*H):
-
191*73*50MM
-
Working Temperature Range:
-
-195℃---220℃
-
Application:
-
Cooling or Heating
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
None
-
Certification:
-
ce
-
After sales Service Provided:
-
Online support
-
Marketing Type:
-
Ordinary Product

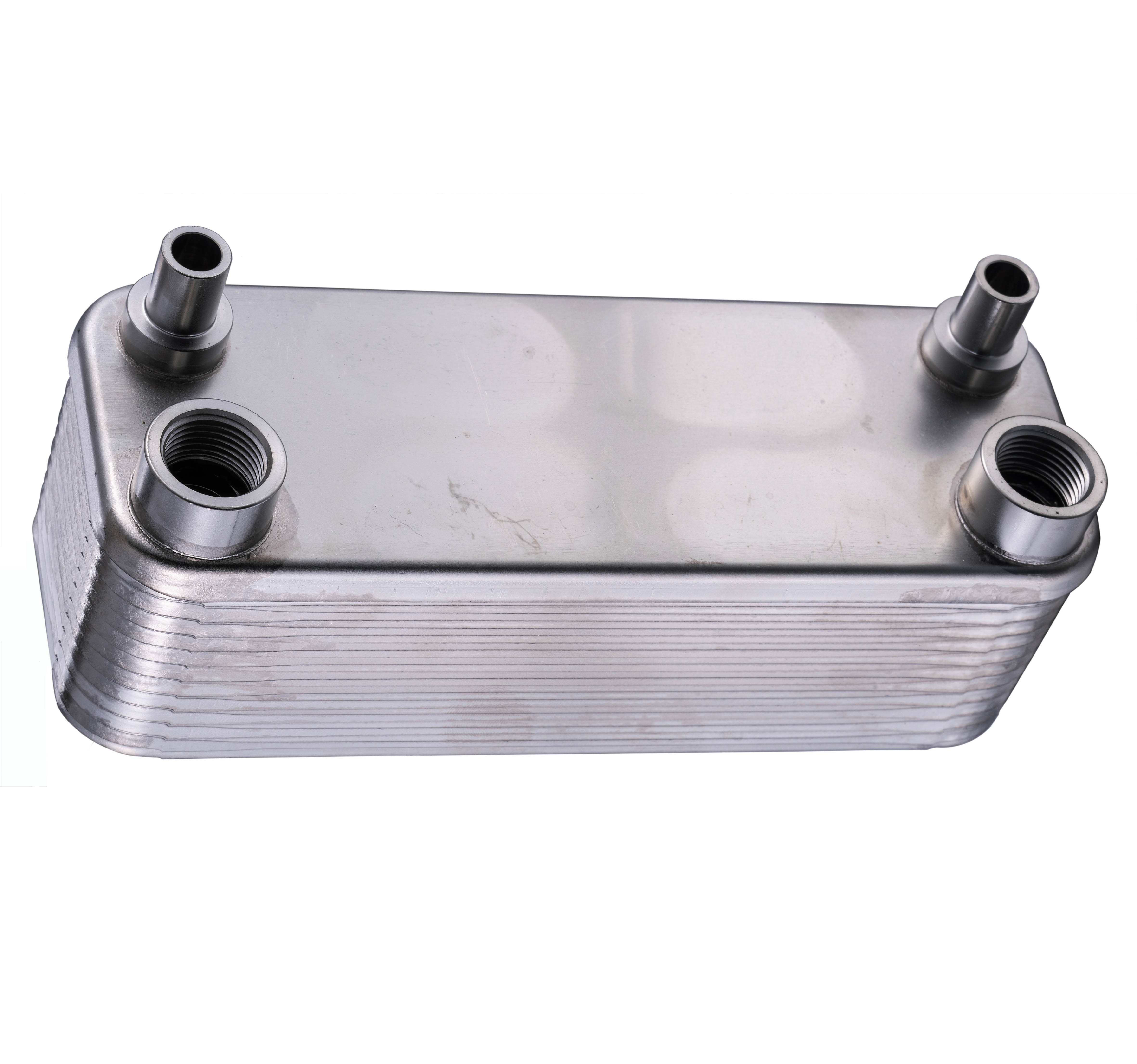

High quality stainless steel brazed NICKEL plate heat exchanger
Technique details:
| Max. plate no. : | 60pcs |
| Max. flow rate: | 4m3/h |
| Thickness of one plate: | 0.3mm |
| Unit heat exchanger area: | 0.014m2 |
| Soldering material: | copper 99.9% (or nickle) |
| Volume per channel: | 0.022L/channel |
| Material: | 304 SS, (or 316 SS) |
| Designing pressure: | 1.0Mpa or 2.0Mpa |
| Test pressure: | 2.0Mpa or 3.0Mpa |
| Designing temperature: | -195℃ ~ +200℃ |
| Brand | Style(A/B) | Total Heat Area(m2) | H (mm) | Weight (kg) | Volume (L) | |
| OEM | B3-14A/C- | 10 | 0.112 | 27 | 0.88 | 0.198 |
| B3-14A/C- | 12 | 0.140 | 32 | 0.98 | 0.242 | |
| B3-14A/C- | 14 | 0.168 | 36 | 1.07 | 0.286 | |
| B3-14A/C- | 16 | 0.196 | 41 | 1.17 | 0.330 | |
| B3-14A/C- | 18 | 0.224 | 45 | 1.26 | 0.374 | |
| B3-14A/C- | 20 | 0.252 | 50 | 1.36 | 0.418 | |
| B3-14A/C- | 26 | 0.336 | 63 | 1.65 | 0.550 | |
| B3-14A/C- | 30 | 0.392 | 72 | 1.84 | 0.638 | |
| B3-14A/C- | 36 | 0.476 | 85 | 2.13 | 0.770 | |
| B3-14A/C- | 40 | 0.532 | 94 | 2.32 | 0.858 | |
| B3-14A/C- | 46 | 0.616 | 108 | 2.61 | 0.990 | |
| B3-14A/C- | 50 | 0.672 | 117 | 2.8 | 1.078 | |
| B3-14A/C- | 56 | 0.756 | 130 | 3.09 | 1.210 | |
| B3-14A/C- | 60 | 0.812 | 139 | 3.28 | 1.298 | |
Connector size:
1/2“ or 3/4”BSP / NPT
We also have other different models for your selection.
