Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FBD
-
Dimension(L*W*H):
-
customized
-
Weight:
-
5 KG
-
Working Temperature Range:
-
5 - 200 ℃
-
Color:
-
White Colorful
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
12-240V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FBD
-
Dimension(L*W*H):
-
customized
-
Weight:
-
5 KG
-
Working Temperature Range:
-
5 - 200 ℃
-
Color:
-
White Colorful
Fluoropolymer (PTFE) Heaters are compatible with virtually any chemistry. Sizes up to 27 kW. Large variety of standard and custom configurations for over the side and bottom installations.

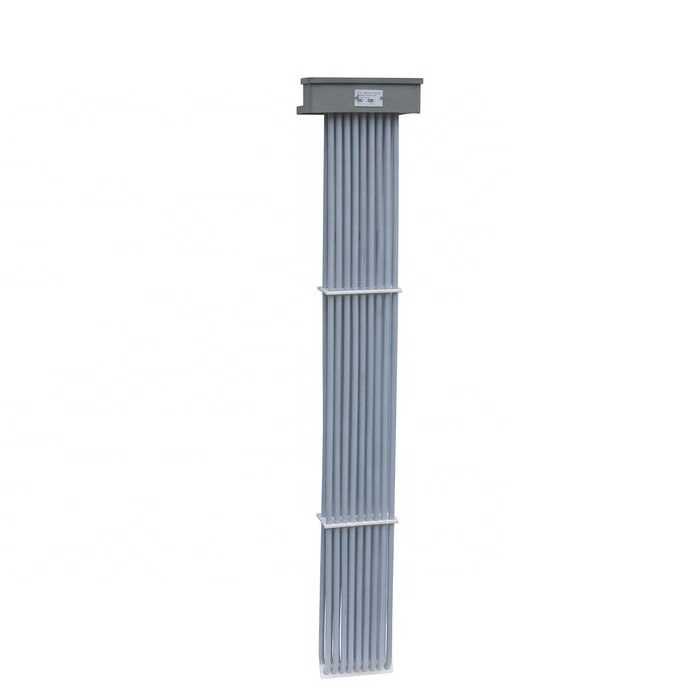

6HX Series, Six Element Fluoropolymer (PTFE) Heater
|
WATTS |
VOLTS |
HOT ZONE In.(mm) |
OVERALL LENGTH
|
MODEL NUMBER |
SHIP WGT. Lbs./(mm) |
|
2000 |
120
|
9
|
17
|
6HX2117-1**
|
19
|
|
3000 |
240
|
15
|
23
|
6HX3223-**
|
22
|
|
4000 |
240
|
21
|
29
|
6HX4229-**
|
24
|
|
6000 |
240
|
28
|
35
|
6HX6235-**
|
27
|
|
8000 |
240
|
38
|
47
|
6HX8247-**
|
33
|
|
10000 |
240
|
47
|
59
|
6HX10259-**
|
40
|
|
12000 |
240
|
55
|
68
|
6HX12268-**
|
45
|
|
Three phase standard. Single phase available as option. Add "-1" before thermal protector designator.
|
|||||
Product Features and Benefits:
SUPERIOR CHEMICAL RESISTANCE : Inert to most aqueous acid, alkaline, anodizing and pickling solutions up to 212 (100).
RUGGED CONSTRUCTION : Heavy wall fluoropolymer (PTFE) covered stainless steel element reduces permeation and eliminates the need for gas purge systems. Guaranteed 100% pinhole free.
OUTSTANDING PERFORMANCE : Low watt density design (10 watts/square inch, 1.5w/cm2) for long service life. Excellent choice for electroless chemistries.
CORROSION RESISTANT HEAD : Vapor tight, flame retardant polypropylene terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit.
SAFETY FEATURES :
|
• |
Grounded internal metal element. |
|
• |
Thermal protector built in. Replaceable P1 fuse standard for solutions up to 190 ° F (88 ℃ ). |
|
• |
Non-floating construction. |
CERTIFICATIONS : UL, CSA, and CE.
SIZES : 2,000 watts to 12,000 watts.
VOLTAGES : 120, 240 or 480 volts. 208, 380, 415, 600 and other voltages available. Three phase standard, single phase available.
OPTIONS AVAILABLE (consult factory):
|
• |
Resettable thermal protectors:
|
|
• |
Polypropylene guards: recommended for applications up to 180 ° F (82 ℃ ). |
|
• |
Fluoropolymer (PTFE) guards: recommended for chromic acid or solutions over 180 ° F (82 ℃ ). |
|
• |
L-shaped and other special configurations. |
|
• |
Longer wire and conduit lengths. |
|
• |
Lower watt densities for highly viscous solutions and technical acids. |
|
• |
Temperature and level controls sized to match the heater. |
