Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Growatt
-
Model Number:
-
SPF 6000ES Plus
-
Input Voltage:
-
48V
-
Output Voltage:
-
230V
-
Output Current:
-
60A/80A
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
460*395*132mm
-
Certificate:
-
CE, IEC 62109-1/2, VDE 0126-1-1
-
Warranty:
-
5Years, 10Years Optional
-
Weight:
-
15kg
-
Inverter type:
-
Pure Sine Wave Inverter
-
Product name:
-
solar inverter 6kw
-
Application:
-
Solar Power System Home
-
Battery type:
-
Lead Acid \ Lithium \ Gel
-
Display:
-
LCD
-
Protection Degree:
-
IP20
-
Rated Power:
-
6000VA/6000W
-
Surge Power:
-
12000VA
-
Transfer Time:
-
10ms typical,20ms Max
-
Parallel Capability:
-
Yes, 6 units maximum
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
93%
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Growatt
-
Model Number:
-
SPF 6000ES Plus
-
Input Voltage:
-
48V
-
Output Voltage:
-
230V
-
Output Current:
-
60A/80A
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
460*395*132mm
-
Certificate:
-
CE, IEC 62109-1/2, VDE 0126-1-1
-
Warranty:
-
5Years, 10Years Optional
-
Weight:
-
15kg
-
Inverter type:
-
Pure Sine Wave Inverter
-
Product name:
-
solar inverter 6kw
-
Application:
-
Solar Power System Home
-
Battery type:
-
Lead Acid \ Lithium \ Gel
-
Display:
-
LCD
-
Protection Degree:
-
IP20
-
Rated Power:
-
6000VA/6000W
-
Surge Power:
-
12000VA
-
Transfer Time:
-
10ms typical,20ms Max
-
Parallel Capability:
-
Yes, 6 units maximum

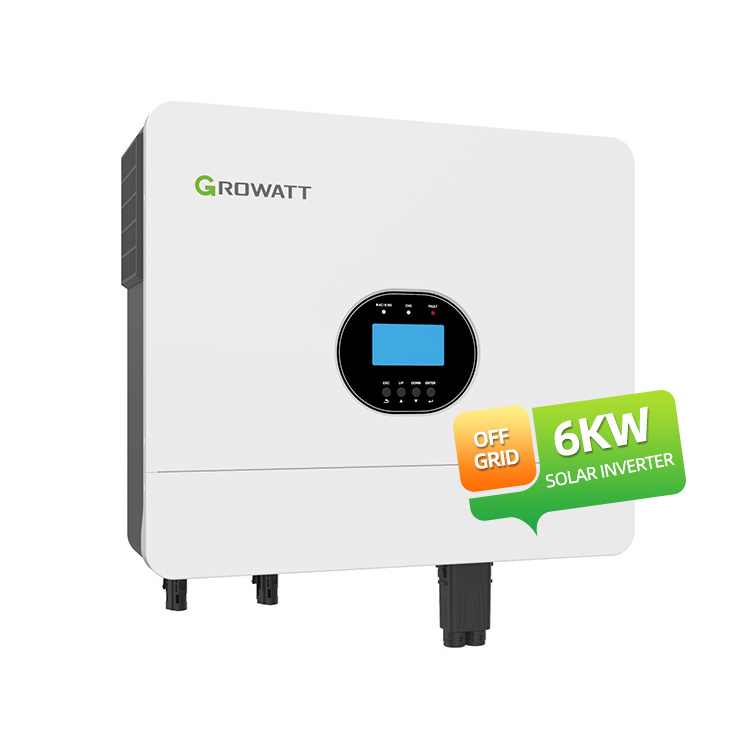

Growatt SPF 6000ES PLUS is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications. This inverter can work with or without batteries.
The whole system also need other devices to achieve complete running such as PV modules, generator, or utility grid. Please consult with your system integrator for other possible system architectures depending on your requirements. The WiFi / GPRS module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.
The whole system also need other devices to achieve complete running such as PV modules, generator, or utility grid. Please consult with your system integrator for other possible system architectures depending on your requirements. The WiFi / GPRS module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.
Product Parameter
|
Datasheet
|
SPF 6000ES Plus
|
|
|
Battery Voltage
|
48VDC
|
|
|
Battery Type
|
Lithium/Lead-acid
|
|
|
Inverter Output
|
|
|
|
Rated Power
|
6000VA/6000W
|
|
|
Parallel Capability
|
Yes, 6 units maximum
|
|
|
AC Voltage Regulation
(Battery Mode) |
230VAC ± 5% @ 50/60Hz
|
|
|
Surge Power
|
12000VA
|
|
|
Efficiency (Peak)
|
93%
|
|
|
Waveform
|
Pure sine wave
|
|
|
Transfer Time
|
10ms typical，20ms Max
|
|
|
Solar Charger
|
|
|
|
Maximum PV Array Power
|
8000W
|
|
|
MPPT Range @ Operating Voltage
|
120VDC ~ 450VDC
|
|
|
Number of Independent MPP Trackers/
Strings Per MPP Tracker |
2/1
|
|
|
Max. input current per MPP tracker
|
16A
|
|
|
Maximum PV Array Open
Circuit Voltage |
500VDC
|
|
|
Maximum Solar Charge Current
|
100A
|
|
|
AC Charger
|
|
|
|
Charge Current
|
80A
|
|
|
AC Input Voltage
|
230VAC
|
|
|
Selectable Voltage Range
|
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
|
|
|
Frequency Range
|
50Hz/60Hz (Auto sensing)
|
|
|
Physical
|
|
|
|
Protection Degree
|
IP20
|
|
|
Dimension (W/H/D)
|
460/395/132mm
|
|
|
Net Weight (kgs)
|
13.5
|
|
|
Operating Environment
|
|
|
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|
|
Altitude
|
<2000m
|
|
|
Operating Temperature
|
0°C - 55°C
|
|
|
Storage Temperature
|
-15°C - 60°C
|
|
