Quick Details
-
Model Number:
-
NT12-2.3
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
0.95 Kg
-
Sealed Type:
-
Sealed
-
Maintenance Type:
-
Free
-
Size:
-
178*34*65mm
-
Voltage:
-
12v
-
Cycle use:
-
14.6-15V
-
Design Life:
-
3
-
Company established year:
-
2005
-
Standby use:
-
13.5V-13.8V
-
Carton/pcs:
-
1
-
initial current:
-
less than 0.69A
-
Certification:
-
CE,ROHS,UL,ISO,MSDS
Quick Details
-
Chargeable:
-
Yes
-
Warranty:
-
14 months
-
Brand Name:
-
NEATA
-
Model Number:
-
NT12-2.3
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
0.95 Kg
-
Sealed Type:
-
Sealed
-
Maintenance Type:
-
Free
-
Size:
-
178*34*65mm
-
Voltage:
-
12v
-
Cycle use:
-
14.6-15V
-
Design Life:
-
3
-
Company established year:
-
2005
-
Standby use:
-
13.5V-13.8V
-
Carton/pcs:
-
1
-
initial current:
-
less than 0.69A
-
Certification:
-
CE,ROHS,UL,ISO,MSDS
Why choose us?
1.
More than 18 years
of experience in battery production field, welcome to visit our factory
2.With complete production
facilities, professional laboratories, R&D center and senior engineers with more than 10 years of experience.
3. Products have
CE,UL,ROHS,ISO,MSDS
and shipment certifications.
4. Our customized lead acid batteries and lithium batteries are widely used in solar energy systems, UPS,
inverter,telecommunication,back up power for electric system,CCTV and other fields
4. Our customized lead acid batteries and lithium batteries are widely used in solar energy systems, UPS,
inverter,telecommunication,back up power for electric system,CCTV and other fields
Related Product
Product Details

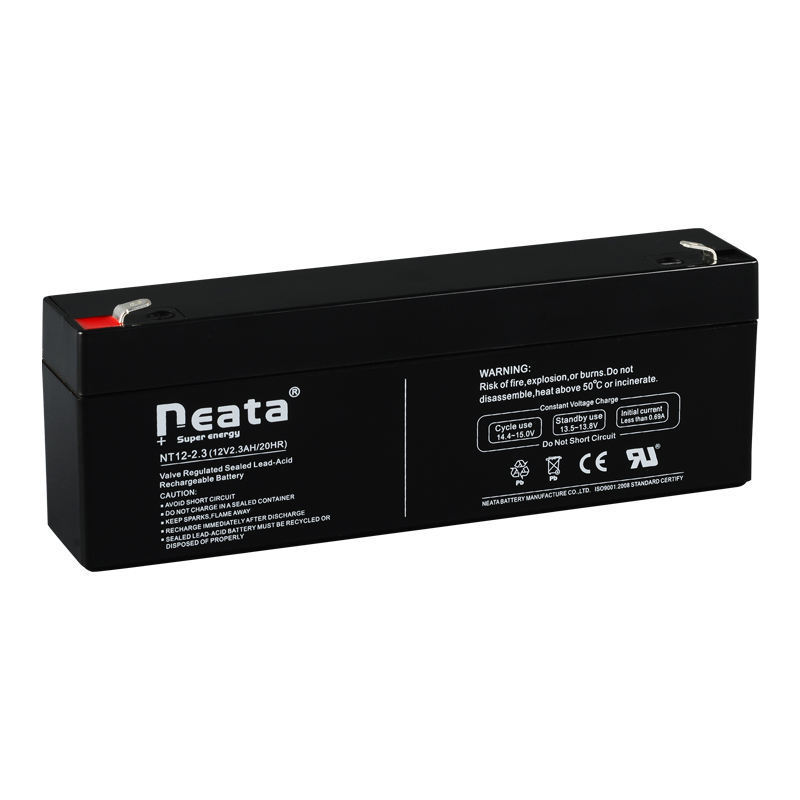

Neata Maintenance Free Rechargeable Sealed Lead Acid AGM Battery 12V 2.3Ah 6-dzm-2.3 For Elevator CE UL ROHS ISO REACH Certified
|
Description
|
|
|
||
|
Model
|
12V2.3Ah
|
|
||
|
Nominal Voltage
|
12V
|
|
||
|
Nominal Capacity
(20hour rate)
|
2.3Ah
|
|
||
|
Cyclic Life
|
50%(C20) Depth of discharge
|
600Times
|
||
|
Capacity 25℃ (77°F)
|
20 hour rate (0.115A)
|
2.3Ah
|
||
|
|
10 hour rate (0.218A)
|
2.18Ah
|
||
|
|
5 hour rate (0.368A)
|
1.84Ah
|
||
|
|
1 hour rate (1.49A)
|
1.49Ah
|
||
|
internal Resistance
|
Full Charged Battery 25℃(77°F)
|
≤50mΩ
|
||
|
Capacity Affected By Temperature
(20 Hour Rate)
|
40℃ (104°F)
|
102%
|
||
|
|
25℃ (77°F)
|
100%
|
||
|
|
0℃ (32°F)
|
85%
|
||
|
|
-15℃ (5°F)
|
65%
|
||
|
Self-Discharge at 25℃ (77°F)
|
Capacity after 3 month storage
|
90%
|
||
|
|
Capacity after 6 month storage
|
80%
|
||
|
|
Capacity after 12 month storage
|
62%
|
||
|
Float Life
|
25℃(77°F) Float charge at 13.8V
|
About 3 Years
|
||
|
Charge (Constant Voltage)25℃ (77°F)
|
Cycle
|
Initial Charging Current
Less than0.69A
Voltage14.6-15.0V
|
||
|
|
Float
|
Voltage 13.5-13.8V
|
||
|
Float Charge(Constant Voltage)
|
Voltage13.5-13.8V
|
|
||
|
Usage
|
UPS/Solar/Wind/Alarm/Security/Telecommunication/Emergency
Lighting System.
|
|
||
|
|
Electronic Instrument/ Fire-fighting Equipment/ Standby Power Supply/ Etc
|
|
||
|
Warranty
|
2 Years
|
|
||
|
OEM Service
|
Accept
|
|
||
|
Color
|
Black, Gray
|
|
||
|
Certificate
|
ISO/CE/UL/ROHS
|
|
||
|
Battery Construction
|
|
|
|
|
|
|
|
|||||||
|
Component
|
Positive plate
|
Negative plate
|
Container
|
Safety valve
|
Terminal
|
Separator
|
Electrolyte
|
|||||||
|
Raw matterial
|
Lead dioxide
|
Lead
|
ABS
|
Rubber
|
Copper
|
Fiberglass
|
Sulfuric acid
|
|||||||
|
Dimension
|
|
|
||
|
Battery
(L×W×H)
|
mm±1
|
178×34×65
|
||
|
|
inch
|
7.01×1.34×2.56
|
||
|
Box
(L×W×H)
|
mm±2
|
375×313×86
|
||
|
|
inch
|
15.8×14.6×3.66
|
||
|
Quantity Per Box
|
|
16 PCS
|
||
|
Net weight Per Cell
|
|
0.95 Kg±15g
|
||
|
Net weight Per Box
|
|
15.2 Kg
|
||
|
Gross Weight
|
|
15.4Kg
|
||
Product Introduction
Related Products
Battery Curve
Application
APPLICATION OF OUR PRODUCTS
Germany technology
Mainly applied for electric systems, security systems, medical equipment, shipping systems, telecommunications equipment, various testing machines, radio transceiver, the banking uninterruptible power supply system, railway locomotives, railway communications, emergency lighting systems, small lamps, large UPS and computer backup power, fire extinguishing systems, electronic equipment ,solar power system (off-grid solar power system, solar street light system, solar garden light system) and wind power system, non-traction battery.
Quanlity Guarantee
12V 1.2Ah-28Ah, 6V1 Ah-14Ah, 4V3Ah-8Ah
(1 year warranty since shipping day)
12V 33Ah-250Ah, 6V100Ah-220Ah
(2 years warranty since shipping day)
