Quick Details
-
Brand Name:
-
YUYE
-
Model Number:
-
YES1-63MA
-
Rated Current:
-
6A-63A, 63A
-
Pole:
-
4P
-
Warranty:
-
12 months
-
Rated frequency:
-
50/ 60Hz
-
Transfer time:
-
20ms
-
Rated operational current (Ie):
-
6A-63A
-
Rated insulation voltage:
-
690V
-
Rated operational voltage (Ue):
-
AC400V
-
Product name:
-
Automatic Transfer Switch
Quick Details
-
Type:
-
PC
-
Number of Pole:
-
4
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YUYE
-
Model Number:
-
YES1-63MA
-
Rated Current:
-
6A-63A, 63A
-
Pole:
-
4P
-
Warranty:
-
12 months
-
Rated frequency:
-
50/ 60Hz
-
Transfer time:
-
20ms
-
Rated operational current (Ie):
-
6A-63A
-
Rated insulation voltage:
-
690V
-
Rated operational voltage (Ue):
-
AC400V
-
Product name:
-
Automatic Transfer Switch
Product Description

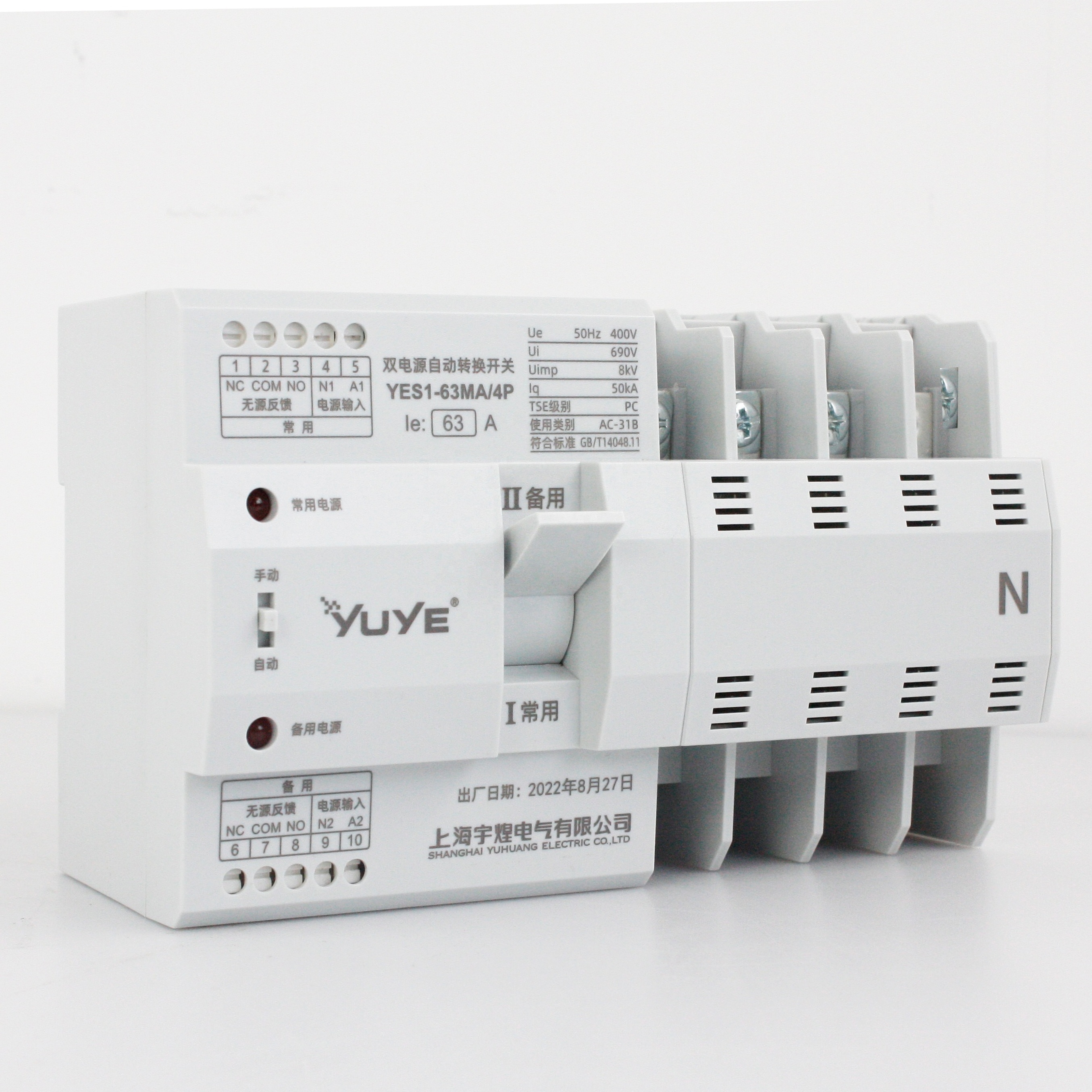

Yuye New ATS Dual-Power Auto Transfer Switch YES1-63MA 4P PC Type AC230V Din Rail Manual Auto Operation Grid to Grid/Generator
This series of household dual power automatic transfer switches the latest micro household power transfer switch developed by our company. The switch belongs to the PC class infrequent transfer switch , two positions structure , suitable for AC 50 / 60Hz ,rated current 6A - 63A AC power distributi on system, mainly used to detect whether the user's power supply is normal or standby.
When the common power supply is abnormal , immediately switch to the standby power supply, Switch inside the used mechanical and electric interlock, put an end to clear condition of two way power switch at the same time. so as to ensure the continuity, reliability and security of the power supply.
Specification
|
Frame Class
|
63
|
|
Rate Working Current le
|
6A,10A,16A,20A,25A,32A,40A,50A,63A
|
|
Rated Insulation Voltage Ui
|
690V
|
|
Rated Impulse Withstand Voltage Uimp
|
8KV
|
|
Rated Working Voltage Ue
|
AC400V
|
|
Rated Frequency
|
50/60HZ
|
|
Using Category
|
AC-31B
|
|
Transfer Time
|
20ms
|
|
Mechanical life
|
≥6000 times
|
|
Electrical life
|
≥1500 times
|
Perfoman
ce
And Features
1.The excitation electromagnet is adopted for actuation,the conversion speed is extremely fast,and the control voltage is AC220V(AC110V can be customized).
2.The switch body is provided with power-on indication of common powwr supply/standby power supply,and the swithc state is clear.
3.Automatic mode has the function of self-input and self-recover.When two power supplies exist at the same time,the common power supply gives priority to power supply.
4.Rail installation mode,modular structure design,total weight<0.9Kg,compact structure,small volume and convenient installation and maintenance.
Product Structure
Outline and Installing Dimensions
