Quick Details
-
Model Number:
-
TM515T22/ST
-
Warranty:
-
1 Years
-
Pressure range:
-
0-188psi
-
Battery life:
-
2 years
-
Sensor model:
-
flow through sensor
-
Pressure accuracy:
-
± 1.5psi
-
Temperature:
-
± 3 degree
-
Sensor weight:
-
22g
Quick Details
-
Voltage:
-
DC8-30 v
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
gobiz
-
Model Number:
-
TM515T22/ST
-
Warranty:
-
1 Years
-
Pressure range:
-
0-188psi
-
Battery life:
-
2 years
-
Sensor model:
-
flow through sensor
-
Pressure accuracy:
-
± 1.5psi
-
Temperature:
-
± 3 degree
-
Sensor weight:
-
22g

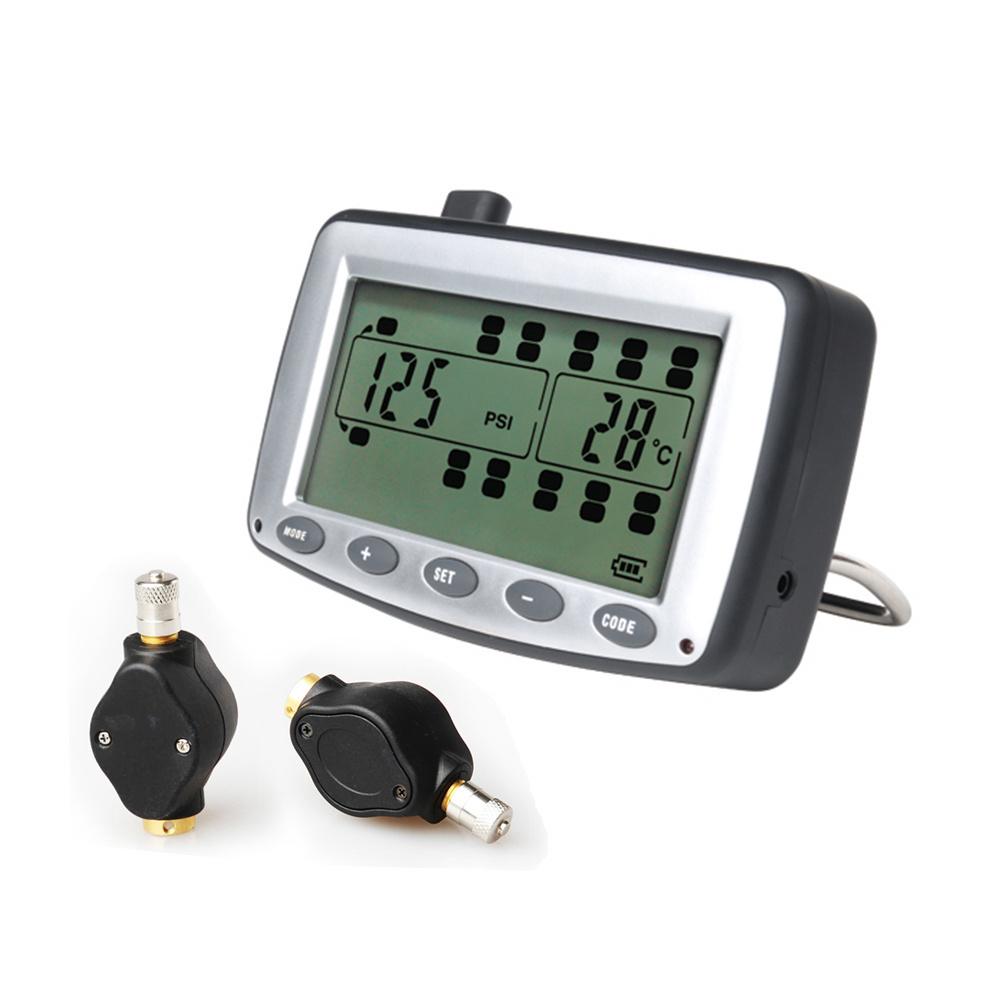

Tire pressure monitoring system
truck tpms for 6-38 wheels
1. What are the advantages of TPMS ?
l Reduce Driving Risks
l Improve Fuel Economy
l Prolong lifetime of the tires
2. Features:
Easy installation and reliable
Clear and large display
Solar power supported
Build in with rechargeable lithium battery
Automatic waking up when vehicle start in motion
Automatic backlight on/off for daytime or nighttime
High pressure and low pressure setting by user
High temperature setting by user
Visual and audible alerts for high/low pressure, high temperature and fast leakage
Pressure unit selectable: PSI, BAR
Able to read up to 22 tires
Automatic pair sensor with tyre location, no need to input sensor ID
3. Specifications:
Monitor specifications:
|
Operating voltage: |
6 to 30V |
|
Frequency |
433.92MHz |
|
Operating temperature |
-40 to +85° C |
|
Size |
90x 60 x 23 mm |
|
Weight |
120g |
External Sensor Specifications:
|
Pressure range: |
0 to 13 bar, 0 to 188psi |
|
Pressure sensitivity: |
± 0.1 bar or 1.5psi |
|
Temperature sensitivity: |
± 3 ℃ |
|
Transmission power: |
< 10dBm |
|
Transmission frequency: |
433.92MHz |
|
Battery life: |
2 years |
|
Operating temperature: |
-40 to +125° C |
|
Weight: |
22grams |
|
Size: |
60*31*20mm(L*W*H) |
4. Our Facilities:
5. Our Certificates (CE, E-mark, FCC, RoHS, ISO9001) & Patent
6. Cooperate with us, you will gain:
0EM or ODM service
Professional Research & Development Engineer
Competitive Price & Professional sales team
2-4 weeks leadtime
