Quick Details
-
Stream input:
-
1 IP (MPTS) output over UDP and RTP
-
Modulation:
-
QPSK 8PSK
-
Brand name:
-
Hooray Vision
-
Application:
-
Digital TV Headend / DVB-S2 uplink system
-
Multiplex:
-
Support Multiplexing ,Scrambling
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Input:
-
ASI /IP input
-
RF Output:
-
DVB-S/DVB-S2 Modulation
-
Stream input:
-
1 IP (MPTS) output over UDP and RTP
-
Modulation:
-
QPSK 8PSK
-
Brand name:
-
Hooray Vision
-
Application:
-
Digital TV Headend / DVB-S2 uplink system
-
Multiplex:
-
Support Multiplexing ,Scrambling

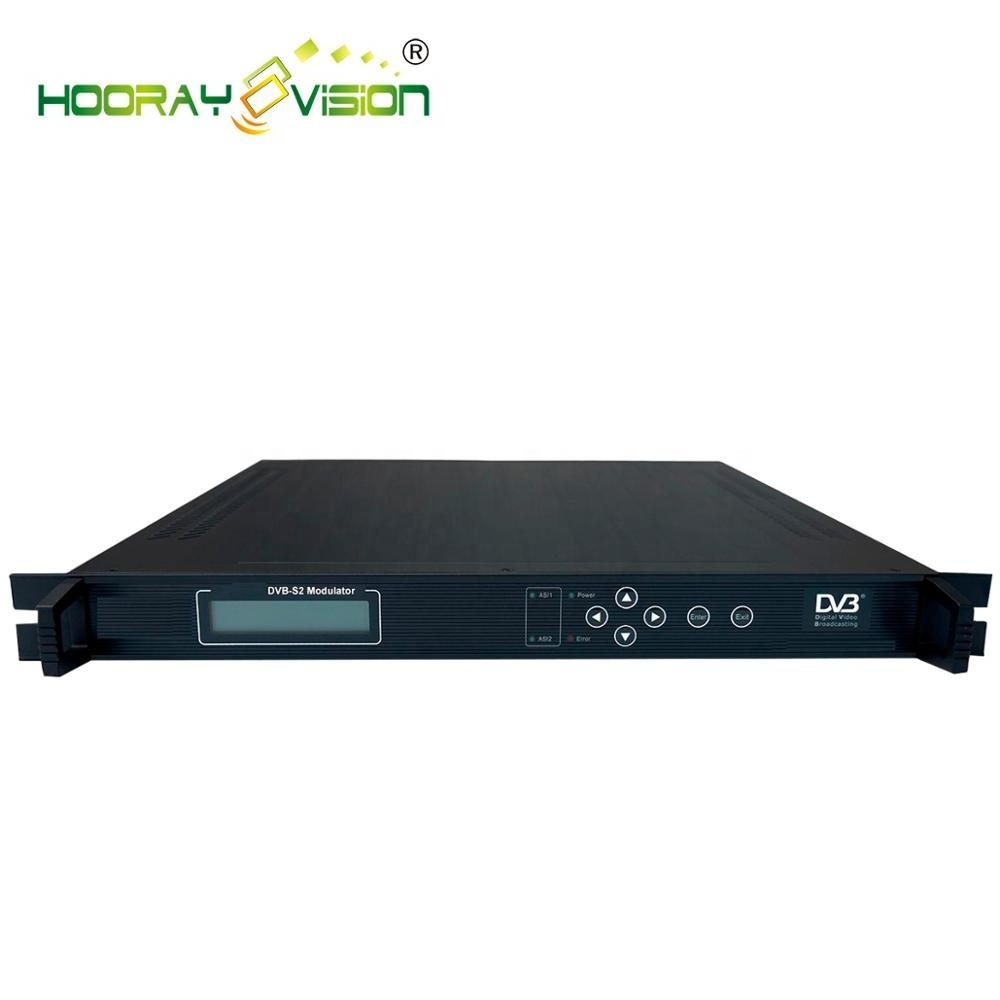

HDQ-5051S QPSK DVB-S DVB-S2 Modulator for MMDS satellite uplink Digital TV Braodcasting
HOORAYVISION HDQ-5051S is a high-performance modulator developed according to DVB-S2 (EN302307) standard which is the standard of second generation of the European broadband satellite telecommunication. It is to convert the input ASI and IP signals alternatively into digital DVB-S/S2 RF output.
It is easy to reach local and remote control with NMS software and LCD in the front panel.
With its high cost-effective design,
HOORAYVISION HDQ-5051 DVB-S2 modulator is wildly used for broadcasting, interactive services, news gathering and other broadband satellite applications.
DVB-S/S2 modulator supports 1*ASI or 1*IP input, output DVB-S2 8PSK RF.
Technical Specification
|
Input Interface |
1* ASI IN, (DVB standard, BNC interface) |
|
|
1*100mbps IP(TS over UDP) port(doesn't work with “ASI IN” at the same time) |
||
|
Output Interface |
75Ω , option: F-head(or N-head) |
|
|
Modulation Mode |
DVB-S(QPSK)/DVB-S2(8PSK), Don’t support 16/32APSK |
|
|
DVB-S2 |
QPSK: 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6(not work), 8/9, 9/10 |
|
|
DVB-S |
QPSK: 1/2, 2/3, 3/4, 5/6, 7/8 |
|
|
Roll-off Factor |
0.2, 0.25, 0.35 |
|
|
Output Frequency |
950~1800MHz (1khz step), F-head |
|
|
Symbol Rate |
17.2~40 Msym/s |
|
|
Error-Correcting Codes |
RS code188/204 |
|
|
MER |
≥28Db |
|
|
Output Level |
80~100dBuV |
|
|
Level Attenuation |
-20dBm~0dBm (0.5db step) |
|
|
Management |
Network RJ-45, 10/100M |
|
|
Keyboard+LCD |
||
|
General Features |
Size |
410mm*280mm*44mm |
|
Temperature |
0~45°C (Operation); -20~80°C (Storage) |
|
|
Power |
100-240VAC, 50Hz, 25W |
|
