KLS25-220-530

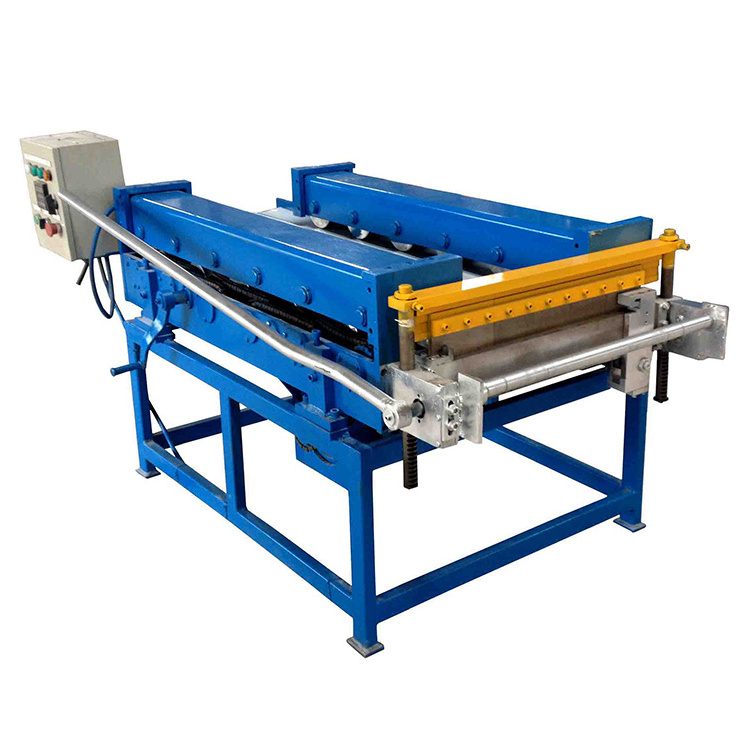

standing seam roofing 220-530mm
- Product Details
- {{item.text}}
Quick Details
-
Rolling thinckness:
-
0.5-0.8mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
XHH
-
Voltage:
-
380V/50HZ/3PH, 380V/50HZ/3PH
-
Dimension(L*W*H):
-
1700*1000*1100mm
-
Weight:
-
kg
-
Feeding width:
-
290mm-600mm
-
Video outgoing-inspection:
-
Available
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Forming Steps:
-
6 Steps
-
Motor Power:
-
1.5KW
-
Thickness:
-
0.5-0.8mm
-
Height of Roofing:
-
25mm
-
Effective Width:
-
220-530mm
-
Material Width:
-
290-600mm
-
Usage:
-
Making Standing Seam Roof Panels
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
8-12m/min
-
Rolling thinckness:
-
0.5-0.8mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
XHH
-
Voltage:
-
380V/50HZ/3PH, 380V/50HZ/3PH
-
Dimension(L*W*H):
-
1700*1000*1100mm
-
Weight:
-
kg
-
Feeding width:
-
290mm-600mm
-
Video outgoing-inspection:
-
Available
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Forming Steps:
-
6 Steps
-
Motor Power:
-
1.5KW
-
Thickness:
-
0.5-0.8mm
-
Height of Roofing:
-
25mm
-
Effective Width:
-
220-530mm
-
Material Width:
-
290-600mm
-
Usage:
-
Making Standing Seam Roof Panels
Focus on roll forming machine for more than
20
years
1. Factory Lifetime Service
:
offer technical support for the entire life of our machines.
2. Customized Profile
:
can design the profile according to customer request.
3. ONE-YEAR Guarantee Period
:we could supply you the
replacement parts free
of charge for any damaged parts caused by quality problems.
4. Overseas Services Optional :we can send our technicians to install and train the workers in the clients' factories with extra cost.
4. Overseas Services Optional :we can send our technicians to install and train the workers in the clients' factories with extra cost.
Products Description
Profile Drawing
|
Size
|
2000*1100*1200mm
|
|
Weight
|
1500KGS
|
|
Hydraulic Motor Power
|
2.2KW
|
|
Hydraulic Power
|
0.75kw
|
|
Voltage
|
380V/50HZ/3PH
|
|
Forming Steps
|
8 steps
|
|
Processing Speed
|
8-12m/min
|
|
Voltage
|
380V/50HZ/3PH
|
|
Material Thickness
|
0.5-0.8mm
|
|
Standing Height of Roofing
|
38mm
|
|
Thickness for common use and testing machine
|
0.6mm, 0.7mm (material: PPGI, GI, Aluminum)
|
|
Effective Width of Roofing
|
220-530mm
|
|
Material Width
|
316mm-626mm
|
|
Tolerance
|
±2mm
|
|
Cut-off system
|
Hydraulic cutting device
|
|
Material of principal axis
|
high grade 45# forged steel
|
|
Material of roller
|
45#steel with hard chrome plating
|
|
Material of blade
|
Cr12 mould steel with quenched treatment 60-62°C
|
|
Material for frame of machine
|
Fine welded structural steel, and one side of frame can be moved
|
|
Sprocket wheel
|
45 steel high-frequencies quench
|
|
Material for producing roofing
|
normal Colored coated ,Steel, galvanized steel, and Aluminum sheets
|
|
Usage
|
Producing standing seam roofing panels
|
Main Accessories:
* Main Standing Seam Roofing Machine;
* 3 Tons Manual Uncoiler
* PLC Computer Controlling System with Touch Screen( Brand: Delta made in Taiwan );
* Hydraulic Forming Cutter;
* Run out table ( 3 units );
* Protective Cover;
* Tools;
* Operation Manual;
* 3 Tons Manual Uncoiler
* PLC Computer Controlling System with Touch Screen( Brand: Delta made in Taiwan );
* Hydraulic Forming Cutter;
* Run out table ( 3 units );
* Protective Cover;
* Tools;
* Operation Manual;
Can not find the machine you need?
Why not customize it!
We have engineers with experience more than 17 years!
The configuration is not unique, we will provide you with customized services.
