Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300*900mm
-
Cutting Thickness:
-
0-30mm
-
Control Software:
-
DSP
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FST
-
Weight (KG):
-
410 KG
-
Core Components:
-
laser tube
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Laser type:
-
Sealed CO2 laser tube
-
Laser power:
-
60W,80W,100W,130W,150W,200W (optional)
-
Engraving area:
-
900*600mm,1300*900mm,1600*1000mm and small or big for your choose
-
Engraving speed:
-
0-60000mm/min
-
Resetting position accuracy:
-
±0.05mm
-
Working voltage:
-
AC110-220V ±10%.50-60HZ
-
Power:
-
1,000W
-
Operating temperature:
-
0-45°C
-
Operating humidity:
-
5-95%
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-60000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300*900mm
-
Cutting Thickness:
-
0-30mm
-
Control Software:
-
DSP
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FST
-
Weight (KG):
-
410 KG
-
Core Components:
-
laser tube
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Laser type:
-
Sealed CO2 laser tube
-
Laser power:
-
60W,80W,100W,130W,150W,200W (optional)
-
Engraving area:
-
900*600mm,1300*900mm,1600*1000mm and small or big for your choose
-
Engraving speed:
-
0-60000mm/min
-
Resetting position accuracy:
-
±0.05mm
-
Working voltage:
-
AC110-220V ±10%.50-60HZ
-
Power:
-
1,000W
-
Operating temperature:
-
0-45°C
-
Operating humidity:
-
5-95%
Product description
1. Blade or honeycomb table.Two kinds of of tables are available for different material
2.CO2 Glass sealed laser tube China famous brand (EFR, Reci), good beam mode stability, long service time.
3. Imported lens and mirrors. High transmittance, good focusing, reflection effect.
4. Ruida Controller system, support online/offline working, English language system, adjustable cutting speed and power.
5 High accuracy stepper motors and drivers. Belt transmission.
6. Tiwan Hiwin Linear square guide rails, higher precision.
7. Open style, the front and back of the machine is open which is possible for longer material, breakthrough the limit of the workpiece length.
8. Rotate cutting available
Product Paramenters
|

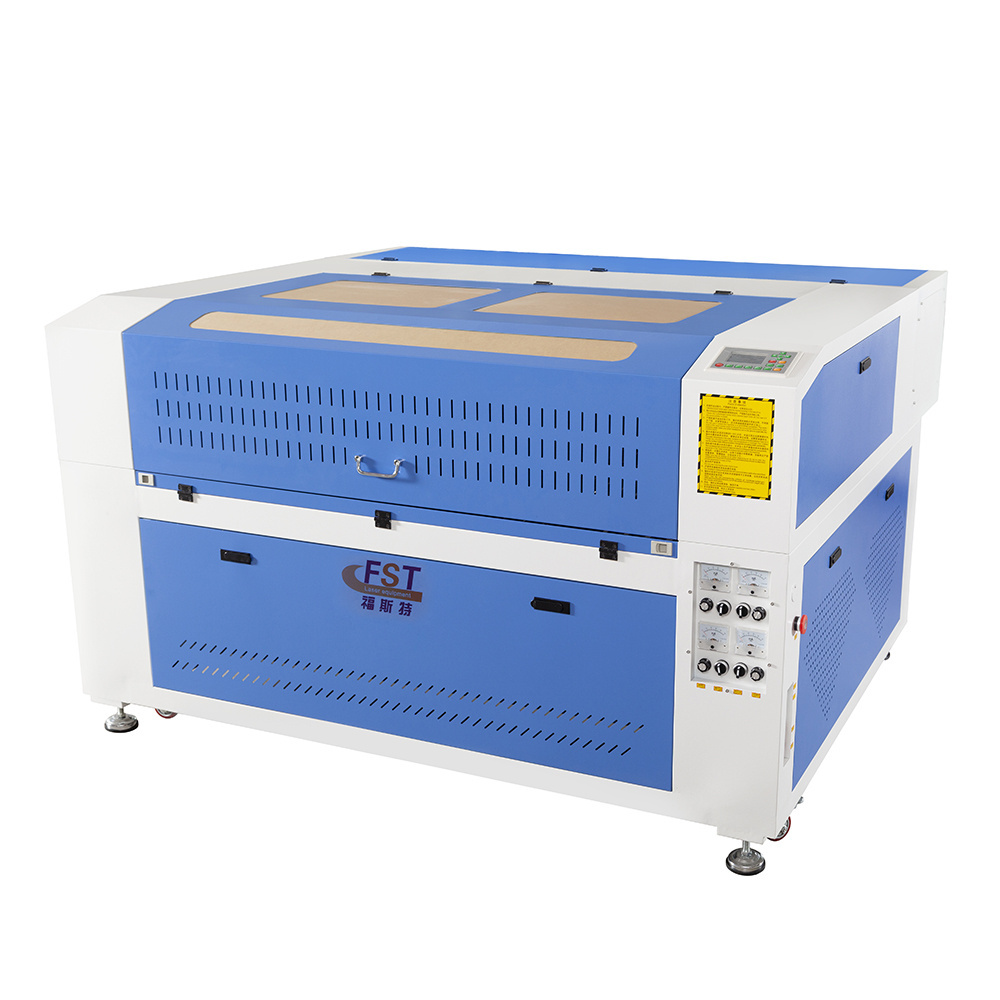

Model
|
FST-1390
|
|
Worktable
|
honeycomb or blade
|
|
Eneraving area
|
1300*900mm
|
|
Laser Power
|
60w/80w/ 100w/ 150w / 300w
|
|
Engraving Speed
|
0-60000mm/min
|
|
Engraving Depth
|
5mm
|
|
Cutting Speed
|
0-5000mm/min
|
|
Cutting Depth (Acrylic)
|
0-30mm (acrylic)
|
|
Up and down work table
|
Ec Up and down 550mm adjustable
|
|
Minimum Shaping Character
|
1*1mm
|
|
Resolution Ratio
|
0.0254mm (1000dpi)
|
|
Power Supply
|
220V(or110V)+/-10% 50Hz
|
|
Resetting Positioning
|
Accuracy less than or equal to 0.01mm
|
|
Water protecting sensor and alarm
|
Yes
|
|
Operating Temperature
|
0-45℃
|
|
Operating Humidity
|
35-70℃
|
|
Graphic Format Supported
|
PLT/DXF/BMP/JPG/GIF/PGN/TIF
|
|
Operation System
|
Windows 98/ME/2000/XP/VISTA/Windows 7/8
|
|
Software
|
RDWorks/LaserCAD
|
|
Engraving on Curve Surfaces(Yes/No)
|
No
|
|
Control Configuration
|
DSP
|
|
Water Cooling(Yes/No)
|
Yes
|
|
Maximum Height Of Materials To Engrave(mm)
|
120mm
|
|
Laser Tube
|
Sealed CO2 glass laser tube
|
|
Machine Dimension
|
1840x1400x1030(mm)
|
|
Packing Dimension
|
2040×1600×1320mm
|
|
Gross Weight
|
410kg
|
