Quick Details
-
Brand Name:
-
MUST
-
Model Number:
-
PH1100 PRO
-
Input Voltage:
-
220/230Vac
-
Output Voltage:
-
230Vac
-
Output Current:
-
80A 100A
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
480*420*215mm
-
Certificate:
-
CE RoHS
-
Warranty:
-
2 years
-
Weight:
-
27kg
-
Product name:
-

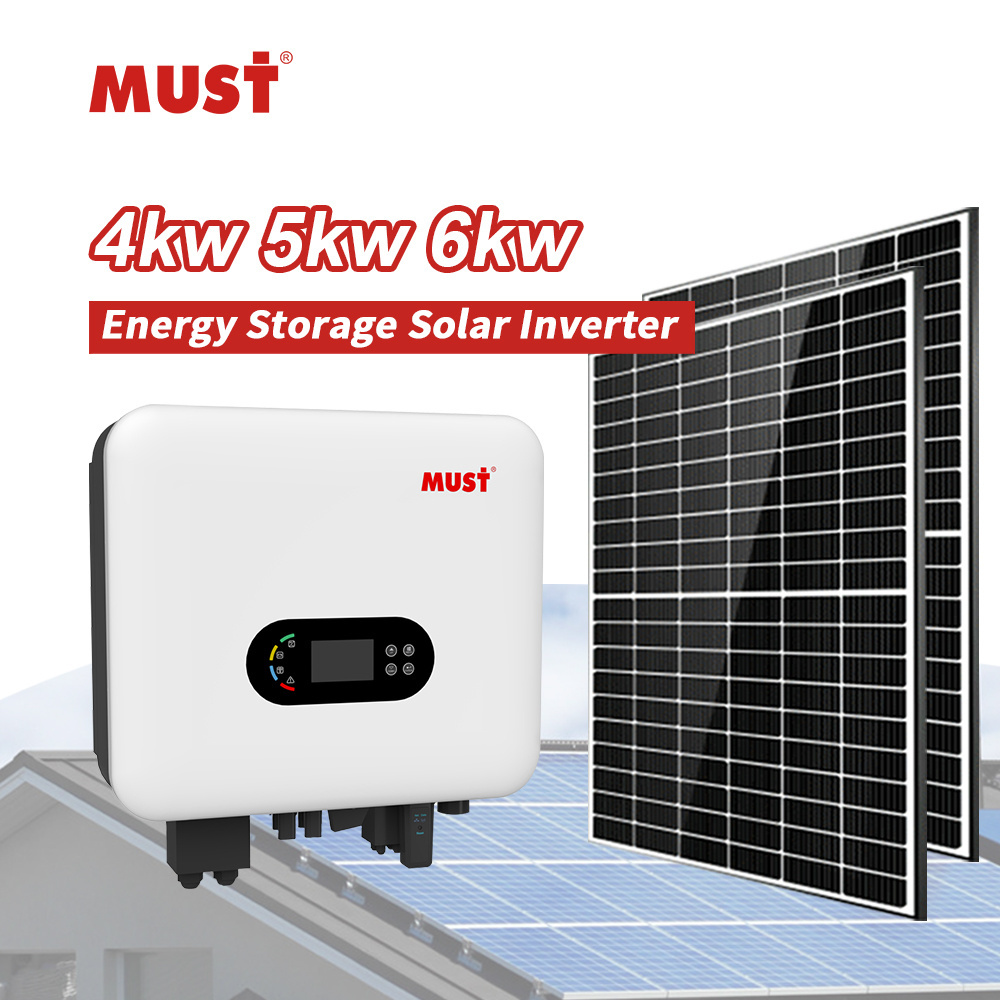

MUST hybrid 4kw 5kw 6kw PH1100 PRO on off grid solar inverter
-
Rated power:
-
5kw, 6kw
Quick Details
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
98%
-
Place of Origin:
-
China
-
Brand Name:
-
MUST
-
Model Number:
-
PH1100 PRO
-
Input Voltage:
-
220/230Vac
-
Output Voltage:
-
230Vac
-
Output Current:
-
80A 100A
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
480*420*215mm
-
Certificate:
-
CE RoHS
-
Warranty:
-
2 years
-
Weight:
-
27kg
-
Product name:
-
MUST hybrid 4kw 5kw 6kw PH1100 PRO on off grid solar inverter
-
Rated power:
-
5kw, 6kw
Products Description
|
MODEL
|
PH11-3648 PRO
|
PH11-4048 PRO
|
PH11-4648 PRO
|
PH11-5048 PRO
|
PH11-6048 PRO
|
|||||
|
RATED POWER
|
3600W
|
4000W
|
4600W
|
5000W
|
6000W
|
|||||
|
Nominal Battery System Voltage
|
48V
|
|
|
|
|
|||||
|
PV INPUT(DC)
|
|
|
|
|
|
|||||
|
Maximum recommended DC power
|
4000W
|
5000W
|
5500W
|
6000W
|
7000W
|
|||||
|
Nominal DC operating voltage
|
360V
|
|
|
|
|
|||||
|
Maximum DC voltage
|
500V
|
|
|
|
|
|||||
|
MPPT voltage range
|
120V~500V
|
|
|
|
|
|||||
|
Maximum input current
|
15A / 15A
|
|
|
|
|
|||||
|
No.of MPP tracker
|
2
|
|
|
|
|
|||||
|
Strings per MPP tracker
|
1
|
|
|
|
|
|||||
|
INVERTER OUTPUT(AC)
|
|
|
|
|
|
|||||
|
Nominal AC output power
|
3600W
|
4000W
|
4600W
|
5000W
|
6000W
|
|||||
|
Nominal output voltage; range
|
220/230/240V;180-280V
|
|
|
|
|
|||||
|
AC grid frequency; range
|
50/60Hz; 45~55/55-65Hz
|
|
|
|
|
|||||
|
Nominal output current
|
15.6A
|
17.5A
|
20A
|
21.7A
|
26A
|
|||||
|
Maximum output current
|
16A
|
18.1A
|
20.8A
|
22.7A
|
27.2A
|
|||||
|
Inrush current (spike/duration)
|
57.5A/5.2us
|
|
|
|
|
|||||
|
Total harmonic distortion i(THDi)
|
<3%
|
|
|
|
|
|||||
|
Power factor at rated power
|
1
|
|
|
|
|
|||||
|
Displacement power factor
|
0.8leading ～ 0.8lagging
|
|
|
|
|
|||||
|
Grid type
|
Single phase
|
|
|
|
|
|||||
|
BATTERY MODE OUTPUT(AC)
|
|
|
|
|
|
|||||
|
Output Rated Power
|
3600W
|
4000W
|
4600W
|
5000W
|
6000W
|
|||||
|
Nominal output voltage; accuracy range
|
230±1%
|
|
|
|
|
|||||
|
Output ferequency; accuracy range
|
50/60Hz (optional)±0.2%
|
|
|
|
|
|||||
|
Output rated current
|
15.6A
|
17.5A
|
20A
|
21.7A
|
26A
|
|||||
|
Output waveform
|
Pure sine wave
|
|
|
|
|
|||||
|
Peak power
|
5400W,10s
|
6000W,10s
|
6900W,10s
|
7500W,10s
|
9000W,10s
|
|||||
|
Total harmonic distortion v (linear load)
|
<3%
|
|
|
|
|
|||||
|
BATTERY & CHARGER
|
|
|
|
|
|
|||||
|
Battery type
|
Lead-acid battery / Lithium battery
|
|
|
|
|
|||||
|
Battery voltage
|
48V
|
|
|
|
|
|||||
|
Battery voltage range
|
40~60V
|
|
|
|
|
|||||
|
Charging curve
|
3-stage adaptive with maintenance
|
|
|
|
|
|||||
|
Protection
|
Over-current protection / Over-temperature protection
|
|
|
|
|
|||||
|
Maximum charging power
|
3600W
|
4000W
|
4600W
|
5000W
|
6000W
|
|||||
|
Maximum charging currernt
|
75A
|
85A
|
95A
|
100A
|
125A
|
|||||
|
EFFICIENCY
|
|
|
|
|
|
|||||
|
Maximum efficiency
|
97.1%
|
|
|
|
|
|||||
|
Euro-efficiency
|
96.5%
|
|
|
|
|
|||||
|
MPPT efficiency
|
99.8%
|
|
|
|
|
|||||
|
PROTECTION DEVICES
|
|
|
|
|
|
|||||
|
DC switch rating for each MPPT; Grid monitoring; Output over current protection; Output overvoltage protection-varistor; Ground
fault monitoring; Integrated all-pole sensitive leakage current |
|
|
|
|
|
|||||
|
GENERAL
|
|
|
|
|
|
|||||
|
Machine Dimension (W*H*D)
|
480*420*215mm
|
|
|
|
|
|||||
|
G.W
|
27kg
|
|
|
|
|
|||||
|
DC connection
|
H4 / MC4
|
|
|
|
|
|||||
|
AC connection
|
Terminal Block
|
|
|
|
|
|||||
|
Display
|
LED+LCD
|
|
|
|
|
|||||
|
Communication interfaces
|
Wi-Fi / USB / GPRS / RS485
|
|
|
|
|
|||||
|
Ingress protection rating
|
IP65
|
|
|
|
|
|||||
|
Humidity
|
0~95% RH(No codensing)
|
|
|
|
|
|||||
|
Operating temperature range
|
-20℃ +60℃ With derating above 45℃
|
|
|
|
|
|||||
|
Cooling concept
|
Natural
|
|
|
|
|
|||||
|
Altitude
|
<3000m
|
|
|
|
|
|||||
|
CERTIFICATION & STANDARDS
|
|
|
|
|
|
|||||
|
CE-EMC+LVD (EN6100-6-3: 2007, EN6100-6-1:2017+EN IEC62109-1:2010, EN IEC62109-2:2011); CE-LVD(EN62477-1:2022) IEC60529;
EN50549-1:2019 Poland Type A, (NC RfG:2016, PSE:2018, PTPiREE:2021) C10/C11 UNE217001-2020; UNE217002-2020, NTS-631:2021 (Type A) G98+G99 |
|
|
|
|
|
|||||
