Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZ CAD
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
NCDLASER
-
Marking Head Brand:
-
SINOGALVO
-
Weight (KG):
-
60 KG
-
Core Components:
-
laser source
-
Product name:
-

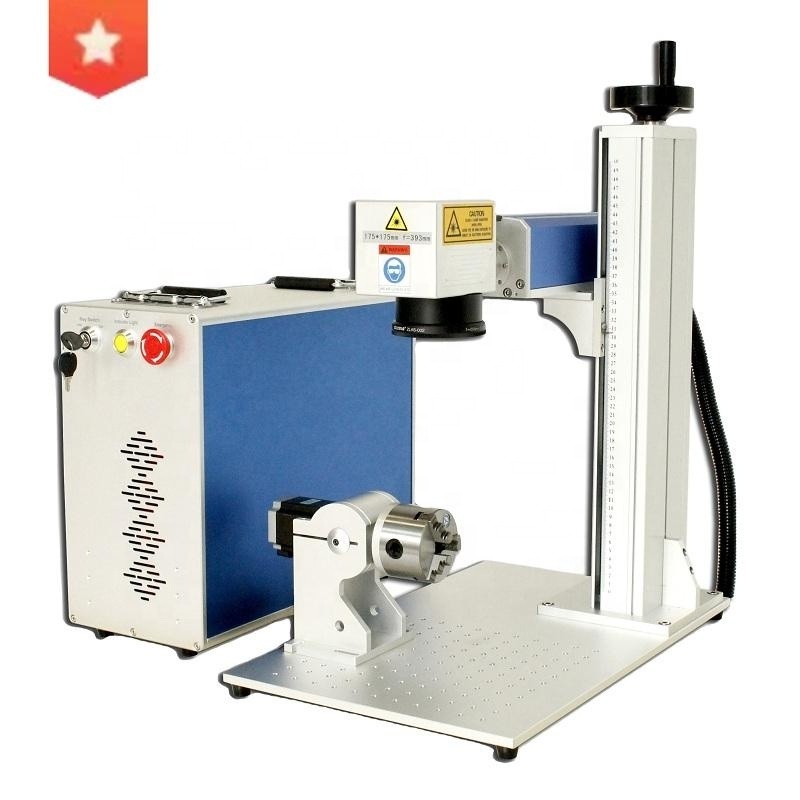

laser marking machine
-
Working area:
-
100x100/150x150/200x200(Optional)
-
Output power adjustment range:
-
10%-100%
-
Minimum Line Width:
-
0.01mm(0.0004in)
-
Minimum Character:
-
0.2mm(0.008in)
-
Electrical Requirements:
-
110V-240V/50Hz-60Hz
-
Communication Mode For Automation:
-
TCP/IP , IO , RS232
-
Marking Speed:
-
0-8000mm/s
-
Applicable Material:
-
Metal Materials
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dwg, LAS, DXP
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZ CAD
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
NCDLASER
-
Marking Head Brand:
-
SINOGALVO
-
Weight (KG):
-
60 KG
-
Core Components:
-
laser source
-
Product name:
-
laser marking machine
-
Working area:
-
100x100/150x150/200x200(Optional)
-
Output power adjustment range:
-
10%-100%
-
Minimum Line Width:
-
0.01mm(0.0004in)
-
Minimum Character:
-
0.2mm(0.008in)
-
Electrical Requirements:
-
110V-240V/50Hz-60Hz
-
Communication Mode For Automation:
-
TCP/IP , IO , RS232
-
Marking Speed:
-
0-8000mm/s
-
Applicable Material:
-
Metal Materials
|
Laser source
|
fiber laser source
|
|
Laser wavelength
|
1064nm
|
|
Frequency
|
20kHz~80kHz
|
|
Marking speed
|
0-7000mm/s
|
|
Resolution
|
0.001mm
|
|
Repeat positioning accuracy
|
0.003mm
|
|
Marking area
|
110*110mm
|
|
Minimum line width
|
0.01mm
|
|
Minimum character height
|
0.1mm
|
|
Cooling system
|
Air cooling
|
|
Working voltage
|
0.5KW/AC220V/50Hz(option)
|
|
Lifting pillar
|
500mm
|
|
Working environment
|
0~35°C humidity≤90%
|
|
Galvo head
|
Sino galvo head
|
|
Control board
|
JCZ control board
|
|
Packaging size
|
L*W*H(mm) 860*730*790
|
|
Weight
|
Gross weight 70kg
|
Chongqing Xinchenzhan Tec
hn
ology Co, Ltd. has been specializing in laser industry for more than 15 years our headquarter is based in Chongqing city, where it's a economic, financial, technological innovation, trading shipping and logistics center located in southwest in China. Integrity is our first rule when we build the factory Quality. Service and Responsibility are our business culture. Xinchenzhan Laser has passed the certification of CE, ISO9001, RoHS and FDA. Now our workshop enlarged to 4500 square meters. Our monthly output reaches to 2000 sets. Main Business: Laser Marking, Welding, Cleaning, Engraving, Cutting Machine Our company is a member of Verified Supplier Enterprise on Ali International Platform, and is one of the top three factories in the industry in Dadukou District, Chongqing, China. We are confident that we can help you achieve a financial balance for your products solutions. We have professional engineer team R&D design ability, strong produce ability, QUALITY CONTROL, TNA Management Control and after-service department.
1.Installation and debugging
Technicians can be sent to the factory for training (free of service fee for the first time).
Customers only need to provide accommodation for engineers.
2.Training
Free of charge for training within warranty. But customers need to take charge of the cost for accommodation, air tickets, visa fee.
3.24/7 online service
Our equipment comes with a 12-month warranty. If the defective equipment of domestic customers is within the warranty period, engineers will be sent to your factory and only the cost of parts will be charged.
4.Accessories supply
IPG laser source is 2 years. Except for optical and consumable parts, other parts are one year.
Only replacement parts, freight borne by the customer.
5.Remote diagnosis
The laser can check the operating status through our remote maintenance system.
Technicians can troubleshoot with remote access.
In addition, we will create a special user profile for all customers who purchase equipment from us to record your usage, maintenance records and other information. This will help us learn more about our customers more quickly so that we can provide the necessary upgrades based on customer feedback.
1.WHO ARE WE?
We are based in Chongqing, China, start from 2010, sell to Domestic Market(50.00%), North America (8.00%), Eastern Asia(8.00%), Western Europe(8.00%), Sourh America(4.00%), Southeast Asia(4.00%) Africa(4.00%), Oceania(4.00%), Northern Europe(4.00%), Southern Europe(4.00%), South Asia(2.00%).
There are total about 11-50 people in our office.
2.HOW CAN WE GUARANTEE QUALITY?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.WHAT SHOULD I DO WHEN SOMETHING GOES WRONG WITH THE LASER?
We offer a one-year warranty. In warranty, we will provide the broken items free of charge. Beyond the warranty period, we still provide maintenance service.
4.ARE YOU A MANUFACTURER OR A TRADING COMPANY?
We are a manufacturer founded in 2010, attracted by Chongqing's policy, working in Chongqing's foreign trade office, and later supported by the government to build a production factory in Shandong.
5.HOW LONG DOES IT TAKE TO LEARN THE LASER MACHINE?
The machine is easy to learn with teaching video, also we can help you to learn the laser online. Usually it will take a few hours to operate the laser. But it will take a bit of trial and error to learn what speed and power settings to use with different materials. So we include a comprehensive guide with your system that has recommended speed and power settings for various materials with which you will be working.
6.WILL THE LASER MACHINE BE SAFE DURING TRANSPORT?
(1) Inner: plastic stretch film and white foam.
(2) Middle: small pieces of wood and screws.
(3) Outside: standard export wooden case.
So, the laser machine will send to you safely. In case the machine was damaged, please contact us. We will process the replacement as soon as possible to ensure that it arrives in time.
