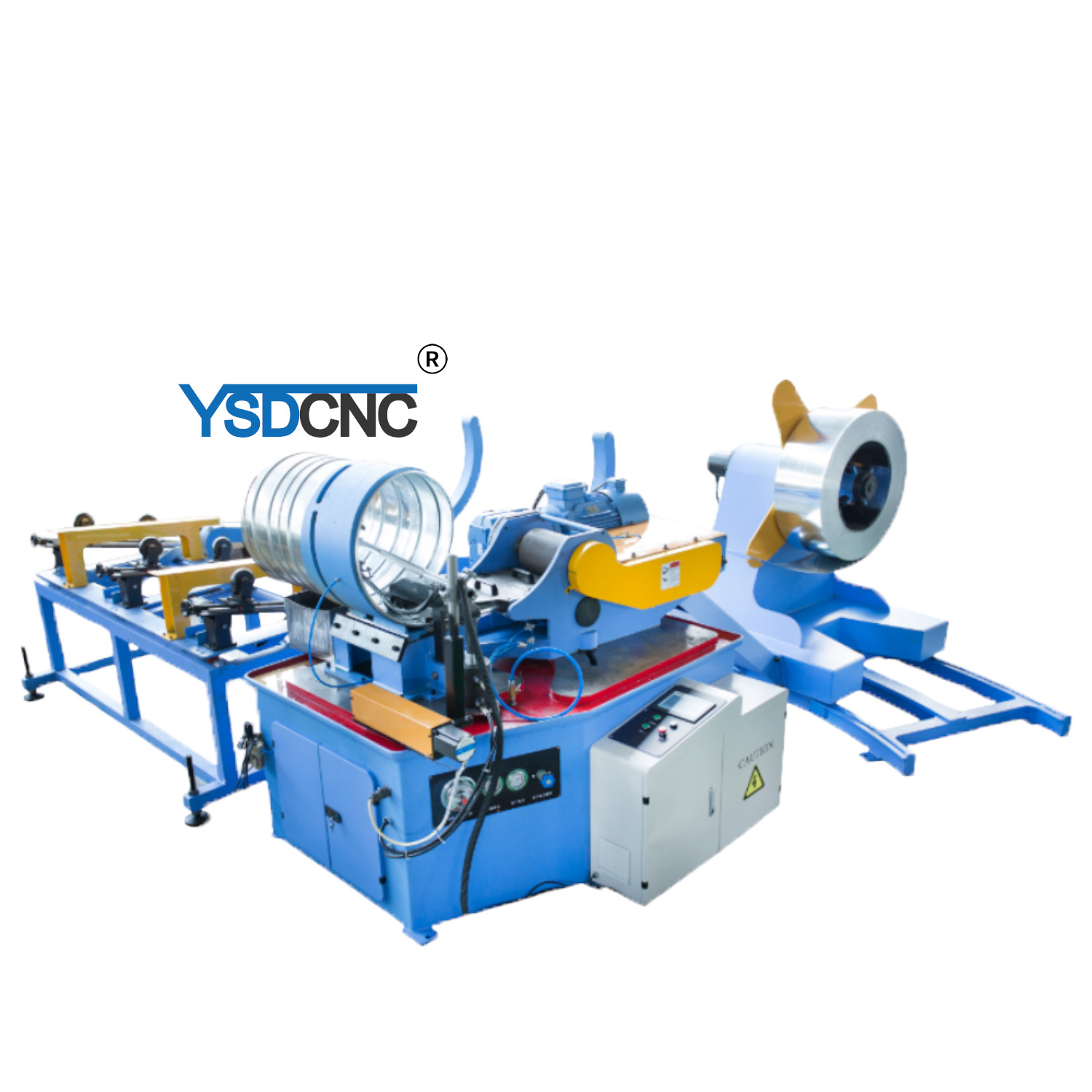

Hvac Duct Making Machine Spiral Pipe Production Machine Air Tube Roll Former Machine

Hvac Duct Making Machine Spiral Pipe Production Machine Air Tube Roll Former Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $15500

≥3 Sets

US $14500

≥5 Sets

US $14000

≥10 Sets

US $13500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 3000 kg

Place of Origin:: Jiangsu, China

Power:: 20KW

Dimension(L*W*H):: 2620*1920*2100mm

Sheet Thickness (mm):: 0.9-1.2mm

Production Capacity:: 0-32m/min

Name:: spiral duct machine

Pipe shape:: Circle Pipe

Raw material:: Galvanized Steel

Pipe diameter:: 350-1600mm

steel width:: 300mm

Usage:: Construction Pipe

Function:: Stable

thickness:: 0.9-1.2mm

Color:: Customer Selected

Voltage:: 380v/240v Customized

Quick Details

Marketing Type:: New Product 2023

Brand Name:: YSDCNC

Condition:: new

Weight:: 3000 kg

Place of Origin:: Jiangsu, China

Power:: 20KW

Dimension(L*W*H):: 2620*1920*2100mm

Sheet Thickness (mm):: 0.9-1.2mm

Production Capacity:: 0-32m/min

Name:: spiral duct machine

Pipe shape:: Circle Pipe

Raw material:: Galvanized Steel

Pipe diameter:: 350-1600mm

steel width:: 300mm

Usage:: Construction Pipe

Function:: Stable

thickness:: 0.9-1.2mm

Color:: Customer Selected

Voltage:: 380v/240v Customized

Product Description

The prestigious YSDCNC has been widely recognized in the HVAC and sheet metal industry as the spiral duct machine with outstanding quality, reliability, and performance-driven approach. YSDCNC launched a new modular Tubeformer concept for HVAC application. The new design aims at custom-tailored configurations suitable for individual production demands and greater functionality flexibility for future expansions. Assemble the machine according to your needs when it comes to output (speed configurations), strength (material thickness configurations), and range (dimension configurations)! The new touch screen based Control System manifests an operation- and production friendly design coupled with many features, including the newly developed optional PC Download function for enhanced production efficiency.

Performance Features:

1, patented mold, easy to adjust, and has its own patent, replace the mold more trouble and save the province of materials
2, high-speed synchronous cutting system
3, PLC control
4, can be on-site construction
5, can be adjusted
6, high-quality products, high-quality services
7, the system can handle galvanized sheet, aluminum
8, automatic roll out of equipment
9, can produce a variety of different diameter spiral tube

Specification

Main Technical Parameters:

Diameter：	350-1600mm
Ripple size：	waves pitch 120mm，waves height 8mm，two ripples between seam lock
thickness：galvanized steel	0.9-1.2mm，strip width 300mm
Uncoiler：	inner coil: 460-520mm
		outer coil:1400mm
		max load: 3000kg；hydraulic support
Seam lock：	outside
Feed speed：	0-30m/min，adjustable
Cutting type：	plasma cutting
Drive system：	gear drive,turning over ducts adopt air-power; Compaction of feed rolls adopts hydraulic power.
Moulds ：	steel
Total weight ：	3000kg
Machine size：	main machine：2.1 x 1.65 x 1.35 m
		Uncoiler：2.5 x 1.4 x 1.85 m
		Run out table：2.1 x 1.2 x 1.2 m
Total power：	20KW
Power supply：	380V/50Hz/3Ph
console：	touchscreen

Processing material: Galvanized Steel Sheet / Stainless Steel / Aluminum Plate

YSDCNC-1600 is flexible type with roller cutter / YSDCNC-1600-B is with plasma cutter

Details Products

Related Products

Our Service

1:The machine provides 36-month warranty and free online support and service from engineers.

2: Provide online technical support
and service for life, even after the warranty period, the engineer team can always provide you with online service at no additional cost. (All our clients have this service, we think it is very necessary)
3: During the warranty period, we can send you spare parts for free replacement.
4: After the machine is completed, free whatsapp online inspection service will be provided.Bend the product according to your requirements, then test it.
5: Pack and record the video, and submit it to you for acceptance service, or you can directly watch online on whatsapp.
6: We can also provide the following information, and it is very necessary.photo of the rating plate you apply on the machine itself-basic manual for the machine in English.

Hello, our standard model has a large number of stock, regular shipping time 0~7 days. The custom model can be completed in 7-25 days (according to the size of the machine, different time.）

We are a 7-year member of Alibaba, and we

support third-party guarantee transactions of

Alibaba credit insurance transactions, which

can better protect your financial security.

The company provides a variety of transaction

methods: EXW, FOB, CIF, DDU, DDP and other

education methods support customs declaration,

export, transportation and delivery to the door

and other one-stop services.

You can trade through TT, wire transfer,

transfer, paypel, letter of credit, Alibaba

credit order and other transaction methods.

We can deliver to your forwarding warehouse, or

directly to your door, and deliver the goods to

your hands.We cooperate with well-known

international shipping companies such as

COSCO Shipping, and we can also be responsible

for the customs clearance of your goods, delivery

of goods to your door, etc.And we provide free

shipping insurance. If there is any damage during

transportation, our insurance company will settle

the claim for you, and we will send you free

shipping. (If you have any questions, please

you how to operate? We are your most trusted

partner, we are your eyes and hands.)

Our Company

^{Nanjing Shanduan CNC Machine Tool Co., Ltd. has 38}

^{years of industry experience. We specialize in four main}

^{product lines: air duct production lines, CNC bending machines, shearing machines, laser cutting machines, and shredders}

^{for energy recovery. With over 300 employees, including 30}

^{sales engineers and 35 service engineers, our factory spans}

^{40 acres and is equipped with 3 floor-type boring and milling}

^{machines, 6 gantry planers, 10 radial drilling machines, and}

^{25 CNC machining centers. In total, we have over 200 large}

^{and small-scale equipment.}

With over 100,000 customer case experiences and product transportation to over 100 countries, we have a proven track

record in serving a wide range of clients. We are dedicated to assisting you in securing orders and providing high-quality

products and services. Our commitment to excellence has

resulted in many satisfied customers who are eager to

become our agents.

FAQ

Is it in stock? Hello, we have a large amount of stock for standard models, and the regular delivery time is 0~7 days. Customized models can be completed in 7-30 days (depending on the size and voltage of the machine, the time is different.) How to buy? Our company supports a variety of transaction methods, and you can deliver the goods to your door with a deposit in advance.Various transaction methods such as payment to delivery or delivery to the factory. Consult for details: +8618851629789 How about the after-sales service? 15 minutes quick feedback mechanism. 1-to-1 technical guidance. One year warranty and lifetime service. Free replacement of non-wearing parts during the warranty period, and lifelong online technical support provided outside the warranty period. The factory provides spare parts, and the factory installation video provides after-sales service. How about your quality? Our company's products are produced according to national standards, and have passed TUV, SGS, BV, CE and other certifications. Quality assurance, EU approval, the products sell well in more than 100 countries. What other services do you have? Free counter, free customs declaration, free installation training for export, free online technical guidance.
