Quick Details
-
Product name:
-

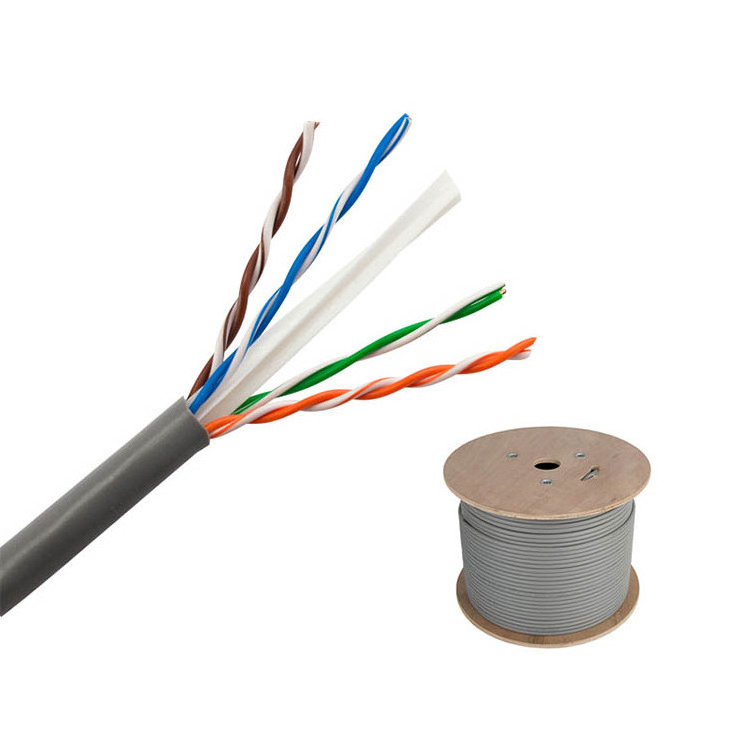

LAN CABLE UTP/FTP Cat6/ Cat6A
-
Size:
-
23AWG
-
Color:
-
Customized
-
Jacket:
-
PVC/LLDPE
-
Application:
-
Networking
-
Certification:
-
ISO9001,RoHS,CPR,ETL,REACH
-
Length:
-
305m/customized
-
Conductor:
-
Copper
-
Cable Packing:
-
305m/Pull box
-
Voltage:
-
Low voltage
Quick Details
-
Brand Name:
-
ZhongTong
-
Model Number:
-
UTP
-
Place of Origin:
-
China
-
Product name:
-
LAN CABLE UTP/FTP Cat6/ Cat6A
-
Size:
-
23AWG
-
Color:
-
Customized
-
Jacket:
-
PVC/LLDPE
-
Application:
-
Networking
-
Certification:
-
ISO9001,RoHS,CPR,ETL,REACH
-
Length:
-
305m/customized
-
Conductor:
-
Copper
-
Cable Packing:
-
305m/Pull box
-
Voltage:
-
Low voltage
Products Description
Details Images
characteristic:
Use high-quality oxygen-free copper thickened conductor core, bright color, uniform thickness, bending resistance and pull resistance.
The thicker the wire diameter, the smaller the resistance value, which can stably transmit the 100M network without dropping.
| Cat6 Indoor | Cat6 Outdoor | Cat6A Indoor | ||||
| Shielding | U/UTP | F/UTP | U/UTP | F/UTP | U/UTP | F/UTP |
| Conductor | Solid Bare Copper | Solid Bare Copper | Solid Bare Copper | Solid Bare Copper | Solid Bare Copper | Solid Bare Copper |
| Size | 23AWG | 23AWG | 23AWG | 23AWG | 23AWG | 23AWG |
| Conductor Dia.(±0.005mm) | 0.53 | 0.56 | 0.57 | 0.57 | 0.57 | 0.585 |
| Insulation | PE | PE | PE | PE | PE | PE |
| Average Thickness(mm) | 0.21 | 0.275 | 0.21 | 0.275 | 0.225 | 0.278 |
| Min Point Thickness(mm) | 0.193 | 0.253 | 0.2 | 0.253 | 0.207 | 0.255 |
| Conductor Insulation Dia.(±0.02mm) | 0.96 | 1.12 | 0.99 | 1.12 | 1.02 | 1.14 |
| Twisted Pair Dia.(±0.02mm) | 1.92 | 2.24 | 1.98 | 2.24 | 2.04 | 2.28 |
| Ripcord | Nylon | Nylon | Nylon | Nylon | Nylon | Nylon |
| Spline | present | present | present | PE | PE | PE |
| Poluethylene Tape | Not present | present | Not present | present | Not present | present |
| Drain Wire-Solid Tinned Copper(mm) | 0.4 | 0.4 | 0.4 | |||
| Water Resistance | Jacket Only | Jacket Only | ||||
| Cable Jacket | PVC | PVC | LLDPE | LLDPE | PVC | PVC |
| Average Thickness(mm) | 0.55 | 0.55 | 0.55 | 0.55 | 0.6 | 0.55 |
| Min Point Thickness(mm) | 0.5 | 0.5 | 0.5 | 0.5 | 0.45 | 0.5 |
| Outer Diameter(±0.2mm) | 5.9 | 7.2 | 6.5 | 7.35 | 6.8 | 7.4 |
