Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SEVENSTARS
-
Voltage:
-
380V 50HZ 3P OR CUSTOMIZED
-
Dimension(L*W*H):
-
2000*2000*3500MM (l*w*h)
-
Power (kW):
-
22
-
Weight:
-
6000 KG
-
compressed air requirements:
-
0.4-0.8Mpa
-
Raw material:
-
PP PE Granules
-
Usage:
-
wire protect pipe or water discharge
-
Final product:
-
PP PE corrugated hose
-
Inverter:
-
ABB Inverter
-
Contactor:
-
Schneider or Siemens
-
Certification:
-
CE ISO
-
electric corrugated pipe making machine:
-
electric corrugated pipe making machine
-
HDPE wire protect hose line:
-
HDPE wire protect hose line
-
PE flexible hose extruder:
-
PE flexible hose extruder
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
30
-
Screw Speed (rpm):
-
120 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SEVENSTARS
-
Voltage:
-
380V 50HZ 3P OR CUSTOMIZED
-
Dimension(L*W*H):
-
2000*2000*3500MM (l*w*h)
-
Power (kW):
-
22
-
Weight:
-
6000 KG
-
compressed air requirements:
-
0.4-0.8Mpa
-
Raw material:
-
PP PE Granules
-
Usage:
-
wire protect pipe or water discharge
-
Final product:
-
PP PE corrugated hose
-
Inverter:
-
ABB Inverter
-
Contactor:
-
Schneider or Siemens
-
Certification:
-
CE ISO
-
electric corrugated pipe making machine:
-
electric corrugated pipe making machine
-
HDPE wire protect hose line:
-
HDPE wire protect hose line
-
PE flexible hose extruder:
-
PE flexible hose extruder
Product Description

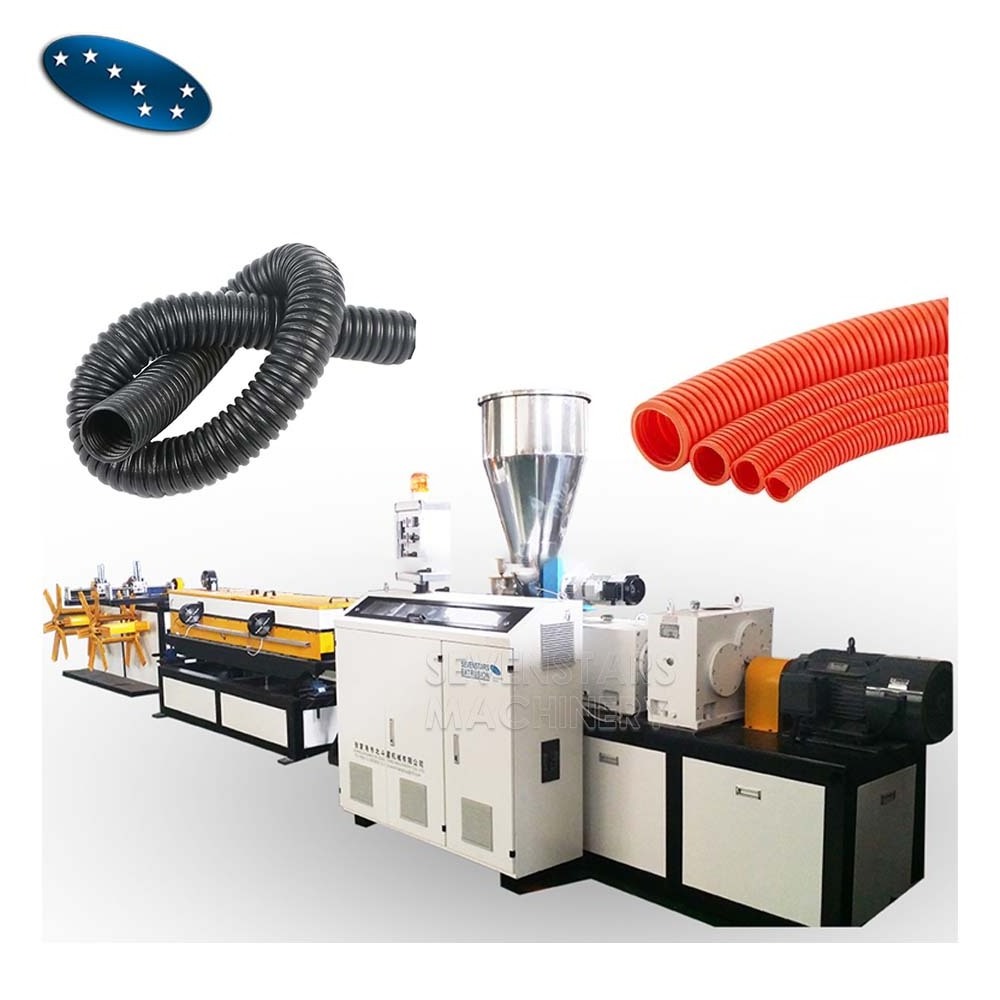

PVC PE plastic single wall electric protector corrugated hose pipe making extrusion machine
P
lastic single wall corrugated pipes have features of high temperature resistance, corrosion and abrasion resiatance,high intensity and good flexibility,etc.they are widely used in fields of auto wire harness, electric thread-passing pipes,circuit of machine tool,protective pipes of lamps and lantern wires,tubes of air conditioner and washing machine,etc. Applications:plastic single wall corrugated pipe making machine can produce electrical thread-passing pipes,circuit of machine tool,protective pipe of lamps,water pipes in conditioner,washing machine, bathroom, etc.
Specification
Model of
PVC PE plastic single wall electric protector corrugated hose pipe making extrusion machine
|
Model
|
Pipe Diameter
|
Production Speed
|
Extruder Model
|
Main Motor Power
|
Mold Block Qty.
|
|
BDX-14
|
5-14mm
|
6-8m/min
|
SJ45/28
|
7.5kw
|
42 pairs
|
|
HG-32
|
10-32mm
|
5-12m/min
|
SJ50/30
|
15kw
|
50 pairs
|
|
HG-50
|
16-50mm
|
4-10m/min
|
SJ65/30
|
22kw
|
50 pairs
|
|
HG-63
|
16-63mm
|
4-10m/min
|
SJ65/30
|
30kw
|
50 pairs
|
|
HG-110
|
32-110mm
|
2-8m/min
|
SJ65/33
|
37kw
|
72 pairs
|
|
HG-160
|
50-160mm
|
2-5m/min
|
SJ75/30
|
45kw
|
72 pairs
|
|
HG-50 high speed
|
9-50mm
|
20-35m/min
|
SJ65/30
|
30kw
|
90pairs
|
